API petroleum drill pipe thread gauge with calibration certificate for OCTG
- shenzhen
- T/T Credit Card
You May Like
-
Factory Sell! Device for checking the resistance to lateral strain gauge of IEC60884 figure 13
-
Factory Sell! Gauge for verification of grooves, holes and reverse tapers of IEC60884 figure 35
-
Gauge for the distance from the engagement face to the current carrying contact tubes of socket-outlet of SANS164-1 ANNEX A
-
Apparatus for testing cord retention to the accessary of EN50075 figure 5
-
Gauge for checking impossibility of single-pole insertion of plugs into socket-outlets with support platform of EN50075 figure 4
-
Apparatus for compression test for the verification of resistance to heat of EN50075 figure 10
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | API series |
wooden box
Product Description

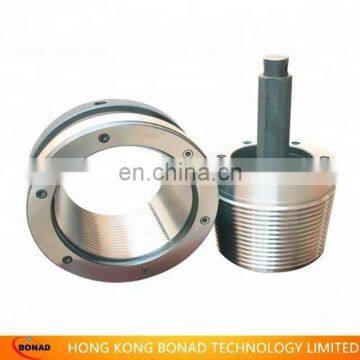

API petroleum drill pipe thread gauge with calibration certificate for OCTG
API petroleum drill pipe thread gauge with calibration certificate for OCTG
IF
SPEC |
| Form | Number | Taper | Pitch Dia | LPC | LBT | LBC |
IF 2-3/8 (NC26) | 321x320 |
V-0.065
|
4 |
1:6 | 67.767 | 76.20 | 79.38 | 92.08 |
IF 2-7/8 (NC31) |
| 80.848 | 88.90 | 92.08 | 104.78 | |||
IF 3-1/2 (NC38) | 421x420 | 96.723 | 101.60 | 104.78 | 117.48 | |||
IF 4 (NC46) | 521x520 | 117.500 | 114.30 | 117.48 | 130.18 | |||
IF 4-1/2 (NC50) | 621x620 | 128.059 | 114.30 | 117.48 | 130.18 | |||
IF 5-1/2 | 621x620 | 157.201 | 127.00 | 130.18 | 142.88 |
SPEC |
| Form | Number | Taper | Pitch Dia | LPC | LBT | LBC |
REG 2-3/8 |
|
V-0.040 |
5 |
1:4 | 60.080 | 76.20 | 79.38 | 92.08 |
REG 2-7/8 | 231x230 | 69.605 | 88.90 | 92.08 | 104.78 | |||
REG 3-1/2 | 331x330 | 82.293 | 95.25 | 98.42 | 111.12 | |||
REG 4-1/2 | 431x430 | 110.868 | 107.95 | 111.12 | 123.82 | |||
REG 5-1/2 | 531x530 |
V-0.050 |
4 | 132.944 | 120.65 | 123.82 | 136.52 | |
REG 6-5/8 | 631x630 | 1:6 | 146.248 | 127.00 | 130.18 | 142.88 | ||
REG 7-5/8 | 731x730 |
1:4 | 170.549 | 133.35 | 136.52 | 149.22 | ||
REG 8-5/8 | 831x830 | 194.731 | 136.52 | 139.70 | 152.40 |
How to order
1. Place the order and pay directly if you have no question to the product. 2. If you have some questions, don't bother to send me a message to ask. 3. After you have paid the money, we will deliver the goods as soon as possible. |
Packaging and Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact. 2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order. 3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days. |
