Product Details

Brand Name	BND		Place of Origin	Guangdong, China
Model Number	waterproof		Power	Electronic

Packaging Details

Safety Aluminum foil box for IPX3 IPX4 camera waterproof rain spray tester

Product Description

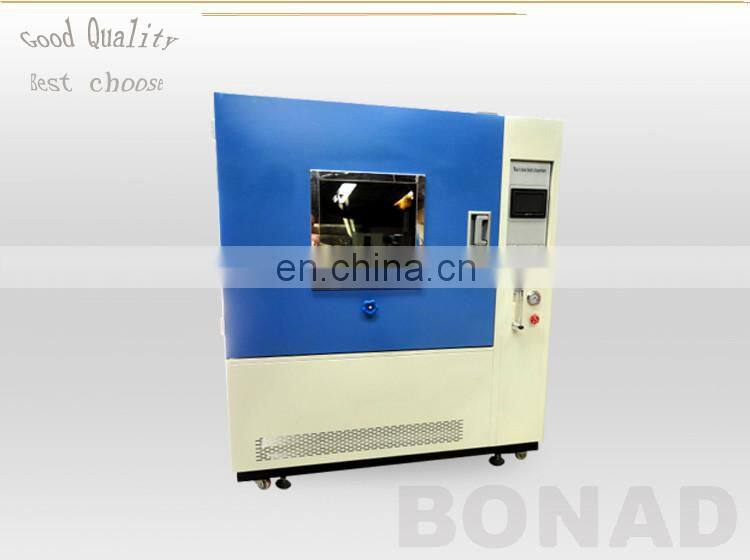

IPX3 IPX4 camera waterproof rain spray tester

1.Introduction:

IEC60529 Immersion Tank is for the waterproof detection of IPX water test. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

2.Applications:

The whole waterproof test system includes:
• Drip Box : The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm (LxWxH)

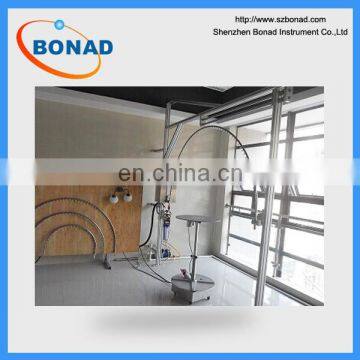

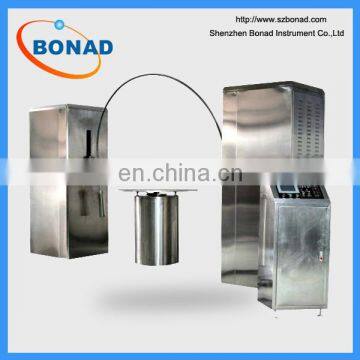

• Swing Pipe Water Spray Test Equipment : It is for IPX3 and IPX4 test, the semi-diameter of swing pipe is 1meter
• Waterproof Jet Test Device ) With water supply device size is 1000x1000x1000mm, the bore diameter is 6.3mm (IPX5) and 12.5mm (IPX6)
• Immersion tank Waterproof test Device : It is for IPX7 and IPX8 test.

Introduction&Application:

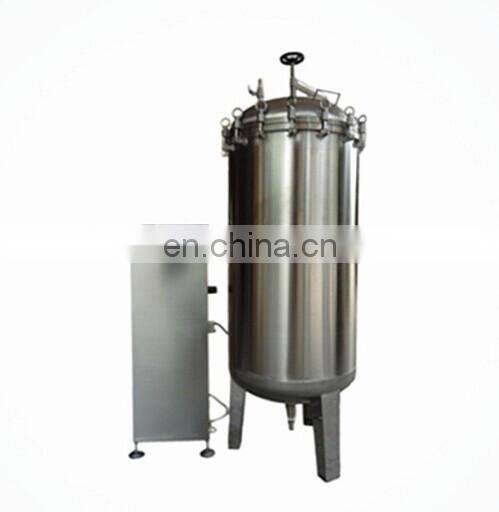

IPX8 50meter depth water pressure immersion test device simulates the water immersion environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Definition of IPX8: See the IP grade sheet.

Feature:

1. Meet the requirement of IEC60529 standard IPX7 water pouring test and IPX8 water splash test.

2. Easy operation, special design.

3 Best after sales service: One year free parts maintenance.

4 Customization is available & welcomed.

Technical parameters: See the label.

Except IPX8 50meter depth water pressure immersion test device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!

Specification
Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim. WHD(mm)		1200× 1200× 1200		1200× 1200× 1200
External Dim. WHD(mm)		1750× 1850× 1300		1750× 1850× 1300
Water Temp.		Normal		Normal
Spray Type	Total water flow(L/min)	R1	1.8	IP× 1	With in 1--1.5mm/min(In drip box)
		R2	3.2	IP× 2	With in 3--3.5mm/min(In drip box)
		S1	24.5	IP× 3	angle± 600, R: 400mm, 1.1L/min
		S2	39.2	IP× 4	angle± 1800, R: 400mm, 1.8L/min
	Preesure of spray nozzle (kgf/cm 2 )	R1	0.1	1. Flow rate of the water=0.07L/min 2. IP× 3, Radius: 400mm, Number or open holes=16, total water flow: 1: 1L/min. 3. IP× 4, Radius: 400mm, Number or open holes=25, total water flow: 1: 8L/min. *Radius: 200mm, R400mm. (For IP× 3, IPx4)
		R2	0.3
		S1	1
		S2	3
(RPM)Test Specimen Frame		17RPM		1RPM
Spray Nozzle Rotation Speed		23RPM		Swing 60° from vertical for 4 seconds at one time Swing 180° from vertical for 12 seconds at one time
Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp. Wiper casters with Adjusters		Chamber lamp. Wiper, casters with Adjusters
Power Source[K. W]		AC 1Ψ 220V 60/50Hz 4KW

IP grade sheet

LevelProtected againstTesting forDetails012345678

Not protected	_	_
Dripping water	Dripping water (vertically falling drops) shall have no harmful effect.	Test duration: 10 minutes Water equivalent to 1 mm rainfall per minute
Dripping water when tilted up to 15°	Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position.	Test duration: 10 minutes Water equivalent to 3 mm rainfall per minute
Spraying water	Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect.	Test duration: 5 minutes Water volume: 0.7 litres per minute Pressure: 80- 100 kPa
Splashing water	Water splashing against the enclosure from any direction shall have no harmful effect.	Test duration: 5 minutes Water volume: 10 litres per minute Pressure: 80- 100 kPa
Water jets	Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.	Test duration: at least 3 minutes Water volume: 12.5 litres per minute Pressure: 30 kPa at distance of 3 m
Powerful water jets	Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.	Test duration: at least 3 minutes Water volume: 100 litres per minute Pressure: 100 kPa at distance of 3 m
Immersion up to 1 m	Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).	Test duration: 30 minutes Immersion at depth of at least 1 m measured at bottom of device, and at least 15 cm measured at top of device
Immersion beyond 1 m	The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects.	Test duration: continuous immersion in water Depth specified by manufacturer

Introduction&Application:

IPX8 50meter depth water pressure immersion test device simulates the water immersion environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.

Definition of IPX8: See the IP grade sheet.

Feature:

1. Meet the requirement of IEC60529 standard IPX7 water pouring test and IPX8 water splash test.

2. Easy operation, special design.

3 Best after sales service: One year free parts maintenance.

4 Customization is available & welcomed.

Technical parameters: See the label.

Except IPX8 50meter depth water pressure immersion test device, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.

Welcome to enquire and purchase!

Specification
Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim. WHD(mm)		1200× 1200× 1200		1200× 1200× 1200
External Dim. WHD(mm)		1750× 1850× 1300		1750× 1850× 1300
Water Temp.		Normal		Normal
Spray Type	Total water flow(L/min)	R1	1.8	IP× 1	With in 1--1.5mm/min(In drip box)
		R2	3.2	IP× 2	With in 3--3.5mm/min(In drip box)
		S1	24.5	IP× 3	angle± 600, R: 400mm, 1.1L/min
		S2	39.2	IP× 4	angle± 1800, R: 400mm, 1.8L/min
	Preesure of spray nozzle (kgf/cm 2 )	R1	0.1	1. Flow rate of the water=0.07L/min 2. IP× 3, Radius: 400mm, Number or open holes=16, total water flow: 1: 1L/min. 3. IP× 4, Radius: 400mm, Number or open holes=25, total water flow: 1: 8L/min. *Radius: 200mm, R400mm. (For IP× 3, IPx4)
		R2	0.3
		S1	1
		S2	3
(RPM)Test Specimen Frame		17RPM		1RPM
Spray Nozzle Rotation Speed		23RPM		Swing 60° from vertical for 4 seconds at one time Swing 180° from vertical for 12 seconds at one time
Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp. Wiper casters with Adjusters		Chamber lamp. Wiper, casters with Adjusters
Power Source[K. W]		AC 1Ψ 220V 60/50Hz 4KW

IP grade sheet

LevelProtected againstTesting forDetails012345678

Not protected	_	_
Dripping water	Dripping water (vertically falling drops) shall have no harmful effect.	Test duration: 10 minutes Water equivalent to 1 mm rainfall per minute
Dripping water when tilted up to 15°	Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position.	Test duration: 10 minutes Water equivalent to 3 mm rainfall per minute
Spraying water	Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect.	Test duration: 5 minutes Water volume: 0.7 litres per minute Pressure: 80- 100 kPa
Splashing water	Water splashing against the enclosure from any direction shall have no harmful effect.	Test duration: 5 minutes Water volume: 10 litres per minute Pressure: 80- 100 kPa
Water jets	Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.	Test duration: at least 3 minutes Water volume: 12.5 litres per minute Pressure: 30 kPa at distance of 3 m
Powerful water jets	Water projected in powerful jets (12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects.	Test duration: at least 3 minutes Water volume: 100 litres per minute Pressure: 100 kPa at distance of 3 m
Immersion up to 1 m	Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).	Test duration: 30 minutes Immersion at depth of at least 1 m measured at bottom of device, and at least 15 cm measured at top of device
Immersion beyond 1 m	The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects.	Test duration: continuous immersion in water Depth specified by manufacturer

Detailed Images

Packaging & Shipping

Our Services

Our service

1.High quality guarantee.

2.Shipment with professional documents.

3.Packing as your request, with photo before shipment.

4.Reply within 48 hours and provide solution within 3 working days

4.Professional after-service from our engineers.

5.Warranty period 12 monthes.

Our advantages

Professional technology support.

Full experience of large numbers containers loading in Chinese sea port.

Fast shipment by reputed shipping line.

Best service after shipment with emails.

Best knowledge about Safety Testor and other related machine in USA/UK/INDIA/AUSTRALIA/CANADA/SOUTH AFRICA ETC

We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products

Our concept

1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products

2.Credibility is the most important.

3.Quality control is our life.

4.Great sense of responsibility.

We will not only supply products service to you but also help you solve any other problem what we can do ,we can meet in this large world is our fate ,so we have been friends ,looking forward to meeting you !

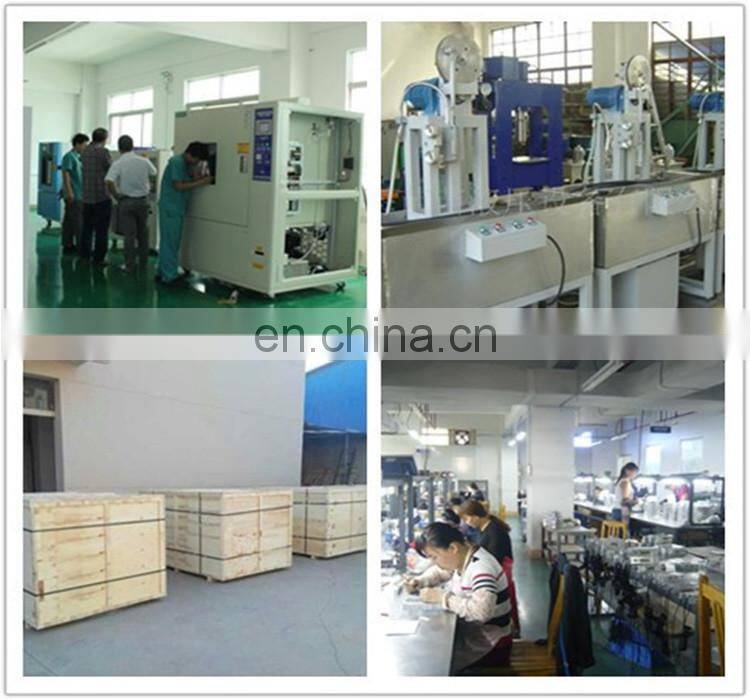

Company Profile
