GR1/GR2/GR5 Titanium Bars

About Titanium Bar, Titanium Tube, Titanium Plate, Titanium Standard Part, Titanium Processing Part:

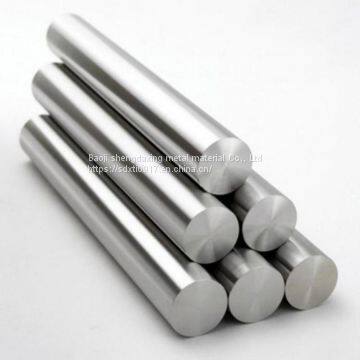

Name: titanium bar



Brand: GR1 GR2 GR4 GR5 GR6 GR7 GR11 GR12


Specification: φ 5mm - φ 200mm × 1000mm - 4000mm



Titanium bar executive standard



GB: GB / t2965-2007, GB / t13810, Q / bs5331-91



American standards: ASTM b348, ASTM F136, ASTM F67, ams4928

1. Reference standard



1: GB 228 metal tensile test method



2: GB / T 3620.1 titanium and titanium alloy No. and chemical composition



3: GB / t3620.2 chemical composition and permissible deviation of titanium and titanium alloy products



4: GB 4698 sponge titanium, titanium and titanium alloy chemical analysis method



2. Technical requirements

1: The chemical composition of titanium and titanium alloy bars shall comply with the provisions of GB / T 3620.1, and the allowable deviation of chemical composition shall comply with the provisions of GB / T 3620.2 in case of repeated inspection.



2: The diameter or side length of hot-working bar and its allowable deviation shall meet the requirements of table I.



3: After hot processing, the allowable diameter deviation of cold drawn bar after turning (grinding) and cold rolling shall meet the requirements of Table II.



4: The out of roundness of the machined (ground) bar after hot working shall not be more than half of its dimensional tolerance.



5: The indefinite length of the processed bar is 300-6000 mm, the indefinite length of the annealed bar is 300-2000 mm, and the fixed length or multiple length shall be within the range of the indefinite length. The allowable deviation of the fixed length is + 20 mm; the mul...

Keyword: titanium,titanium bar, GR1,GR2,GR4,GR5,GR6,GR7,GR11
