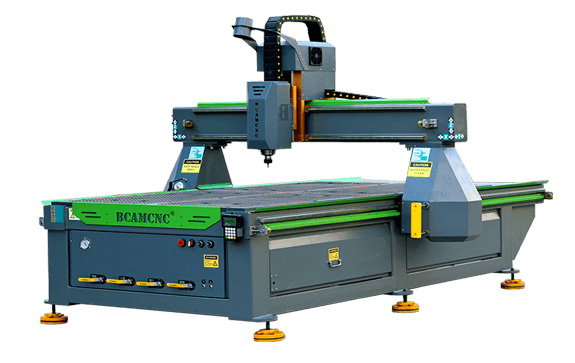

Wood Carving Machine Cnc Router for Bedside Cabinet

Wood carving machine cnc router for bedside cabinet

bcamfer06
  Working area: 1300*2500*200mm|4*8
  CE standard
  3.0kw water cooling spindle(Option: 5.5kw,6.0kw,7.5kw Quick-Release Spindle)
  8mm Heavy duty frame
  Active protection safety system
  X,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
  Taiwan TBI High precision 25 rails
  Vacuum table+T-solt
  Schneider Electronic spare parts
  Automatic lubrication system
  Rich auto A11 control system
  Japan Omron limit switch
  High torque stepper motor and drivers
  Delta Inverter 3.7kw
  3.0kw double dust collector +Dust collector pipe+Dust collector support
  Tool height sensor
  Industrial water Chiller CW3000
  Airtech pro Dust-free extraction hood
  Standard box of tools

Advantage:
1.the BCAM CNC Router S Series is designed for smaller sized businesses or shops but still offers the same great performance you expect from BCAM. Due to our highly effective engineering and manufacturing processes, the S Series offers maximum versatility and can easily be integrated into existing workflows.
2.Constructed from a single-piece-welded steel frame along with an aircraft-quality aluminum gantry, the BCAM also features cast gantry supports which greatly dampen vibrations. Each axis of this CNC Router features helical racks to provide smooth motion and tight control for precise and quality cutting.
3.An all-new knife system which offers both oscillating and non-oscillating capabilities is standard on the BCAM CNC Router along with an optional second knife system.Depending on an end-users application, spindle options range from 4 to 10 HP.
4.Designed to cut a multitude of materials such as composite material, foam, plastic, wood, and much more the BCAM CNC Router is dependable and built to last. with many locations across the globe, service and support are always nearby and ready to help.
