5.6inch 300m Depth LCD Fish Finder
- China Mainland
- T/T Credit Card
You May Like
Product Details
| Brand Name | Dowin | Place of Origin | Chongqing, China | |
| Model Number | DWKF-001 |
Product Description

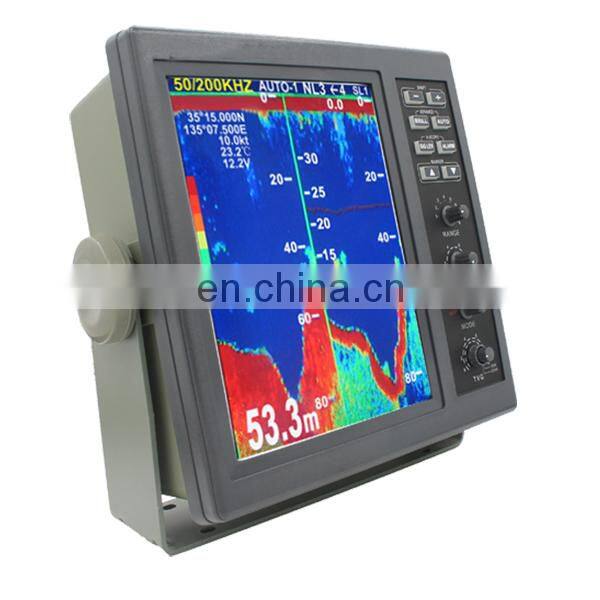

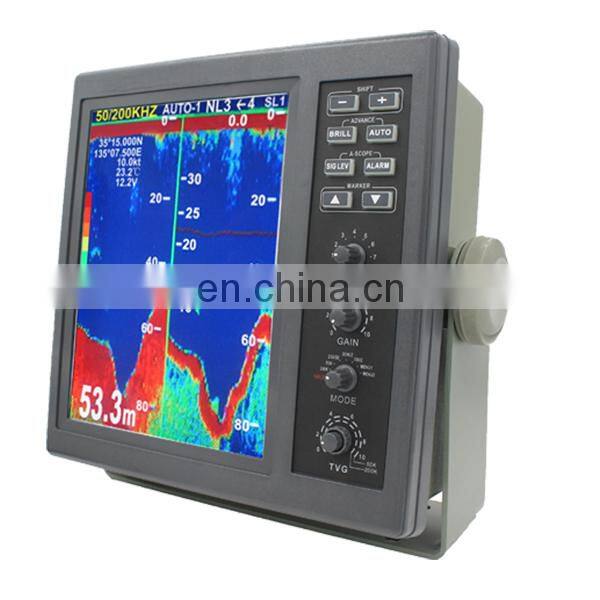

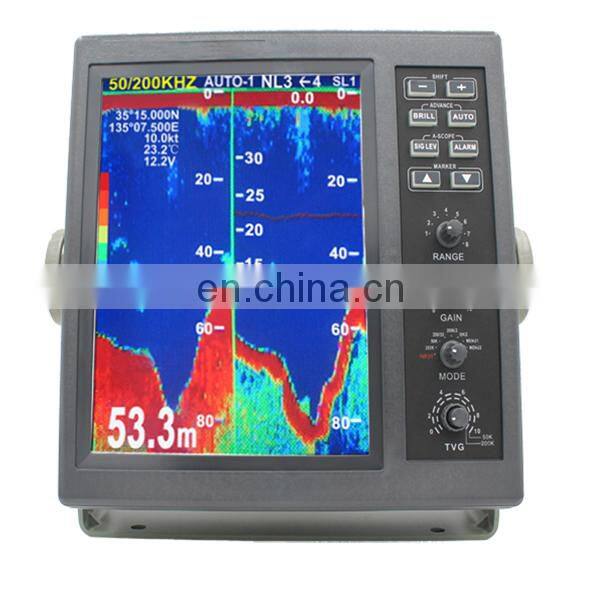

5.6inch 300m depth LCD fish finder
5.6 ” TFT LCD FISH FINDER
1 Dual-frequency : 50 and 200KHz
2 5.6-inch TFT LCD display with 8-color or multi level presentation
3 Auto Mode for hand-off operation
4 Variety of display modes : A-scope, bottom-lock expansion, marker zoom and unique bottom zoom display
5 Compound temperature sensor option
6 Spec
GENERAL | |
Display | 5.6-inch TFT LCD |
Echo Color | 8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black. |
Basic Range | Meters : 5/10/20/40/80/150/200/300 |
Range Shift | Up to 300 meters (1000 feet, 150 fathoms, 200 passi/braza) |
Zoom Range | Times 2, 3, 4 and 5 ranges |
Bottom Lock Expansion Range | 5/10 meters, 10/20 feet, 2/5fathoms , 2/5 passi/braza |
Auto Mode | Automatic adjustment of range and gain |
Display Mode | High Frequency (200K), Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display |
Zoom Display | Marker Zoom, Bottom Zoom and Bottom-lock Expansion |
Display Advance Speed | Lines/TX : Freeze, 1/8, 1/4, 1/2, 1/1, 2/1 |
TX Frequency Output power | 50 and 200kHz (alternately transmitted), 300W |
Pulse-lenght/TX rate Display End Depth (m) 5 10 20 40 80 150 300 Pulse-Length (ms) 0.2 0.2 0.2 0.4 0.8 1.5 3.0 TX Rate (pulse/min) 600 600 600 375 187 100 50 | |
Interference Rejector | Rejects unwanted signals by comparing last and present echoes in strength |
Alarm | Fish and Bottom alarms, Temperature alarm (sensor required) |
Input / output data,Input | NMEA0183 |
All the pack can make according to customers requirments.
1. Customized Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. 24 hour online service.
5. After shipping, we will track the products for you every single day until you get the products. When you get the goods,test them, and give me a feedback.Please feel free to contact us if you have any questions, we will offer the solutions for you.
DOWIN is driven by innovation and aimed for building long lasting relationships with our customers.We are dedicated in the pursuit of good quality of our products in this marketing with high-efficiency and profession. In a word, your concern is our top priority.
Professional technicians, fantastic products, competitive prices and good after-sales services enabled us to earn high reputation among our customers all over the world. We work hard to make sure everything goes as required and with high standard quality. There should be no hesitation in contacting DOWIN for your needs in steel products, marine equipment, automobile and motorcycle parts, for either standard products or new designs.
Just contact DOWIN.We will be your reliable partner.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T(T/T 30% as deposit, and 70% before delivery),Western Union,Paypal. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU,DDP.
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
