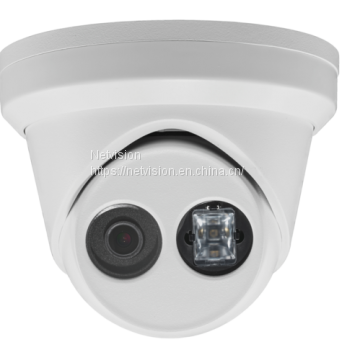

6 MP WDR Fixed Turret Network Camera with Build-in Mic

Camera

Image Sensor1/2.9" Progressive Scan CMOS

Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed1/3 s to 1/100,000 s

Slow ShutterYes

Wide Dynamic Range120dB

Day & NightIR Cut Filter

Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

FocusFixed

Lens Type2.8/4/6/8 mm

FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°

ApertureF2.0

Lens MountM12

Aperture TypeFixed

Illuminator

IR RangeUp to 30 m

Wavelength850nm

Video

Max. Resolution3072 × 2048

Main Stream50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Video Bit Rate32 Kbps to 16 Mbps

H.264 TypeMain Profile/High Profile

H.265 TypeMain Profile

H.264+Main stream supports

H.265+Main stream supports

Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio

Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3

Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Network

Simultaneous Live ViewUp to 6 channels

APIONVIF (PROFILE S, PROFILE G), ISAPI

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

User/HostUp to 32 users,3 levels: Administrator, Operator and User

Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

ClientiVMS-4200, Hik-Connect, Hik-Central

Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night SwitchDay/Night/Auto/Schedule

Target CroppingNo

DNR3D DNR

Image EnhancementBLC/3D DNR/HLC

Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

Video OutputNo

On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

Hardware ResetYes

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Smart Feature-Set

Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart EventLine crossing detection, intrusion detection, face detection

Face DetectionYes

General

Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

Firmware Version5.6.3

Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)

Power Consumption And Current12 VDC, 0.5 A, max. 6.0 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W

Camera DimensionCamera: Φ 127.3 × 95.9 mm (5″ × 3. 8″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)

Camera WeightCamera: 620 g (1.4 lb.)

Approval

ProtectionWithout -U: Ingress protection: IP67 (IEC 60529-2013) With -U: Ingress protection: IP66 (IEC 60529-2013)
