Stainless Steel 316L Drilling Pipe Screen for Oil Well Tools
- Qingdao/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 20 days
You May Like
-
Galvanized Steel/stainless Steel Bridge Slot Screen for 300-1200m Depth Well
-
Stainless Steel Wedge Wire Screen Nozzle/resin Screen Nozzle for Water Treatment
-
API 5CT Slotted Casing Pipe/stainless Steel or Galvanized Steel Laser Cutter Slot Casing Pipe
-
4'' 6'' 8'' 10'' Stainless Steel Johnson Type Continuous Slot Wedge Wire Wind Screen/water Well Screen for Water Well
Product Details
| Brand Name | HUADONG SCREEN | Place of Origin | China | |
| Model Number | HD2-1 | Material | Metal | |
| Length | customized | Thickness | 3-6mm | |
| Type | Filter Elements | Width | 2''1/2 3''1/2 5'' 5''1/2 | |
| Usage | Liquid Filter | Filter Rating | 20-45% | |
| Hole Shape | Round |
Product Description
Drilling pipe screen intro

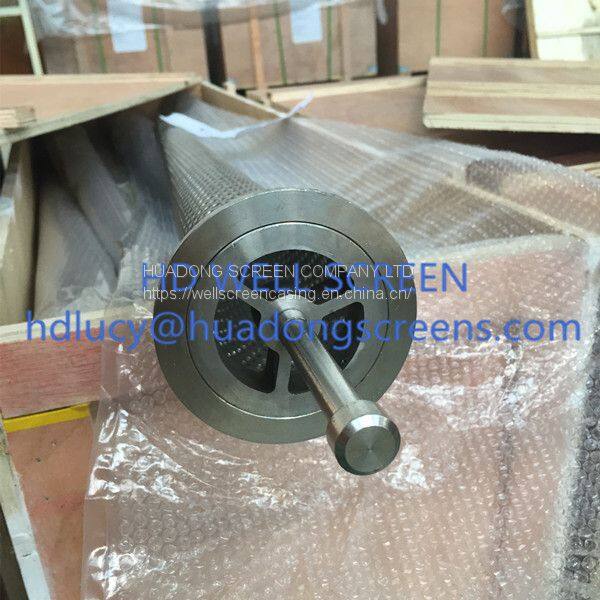

Drill pipe screen,used to filter the drilling fluid and protect the MWD instrument in the petroleum drilling,is suitable to filter the drilling fluid of the petroleum an geological drilling. It is composed of the connector and filter screen.The connector is empty and only has a ledge.The filter screen is in the ledge of the connector.It is placed under the drill rod and replaces the former Fangbao connector.In the circulation of drilling fluid, the impurities are filtered by the filter screen of the connector.The drilling fluid is cleaned, preventing the impurities from blocking the water hole.
The specifications include the 5-1/2, 5, 4-1/2, 3-1/2 and 2-7/8 inches.
Specification of high quality stainless steel drill pipe screens
a. Material: 304 & 316 stainless
b. Perforation: 3/16” hole on 5/16” stagger
c. Retrievable with standard overshot
d. Interchangeable ring flanges
e. 33% open area perforation
f. Internal wear distribution sleeve
g. Full length safety retaining rod
