2020 Africa Sale 1-3T/H Animal Feed Pellet Processing Machine Plant , Pellet Feed Production Line

Factory cheap price high quality poultry/livestock/fish feed pellet production line ,HKJ250 1-5T/H feed processing plant

Poultry/livestock/fish feed manufacturing machinery

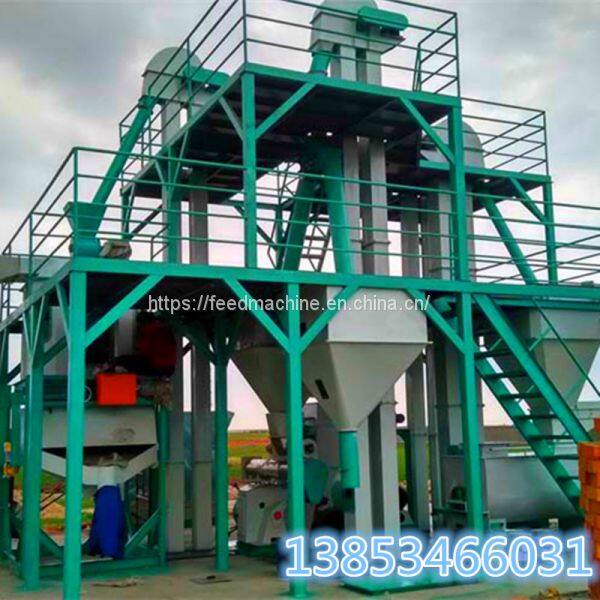

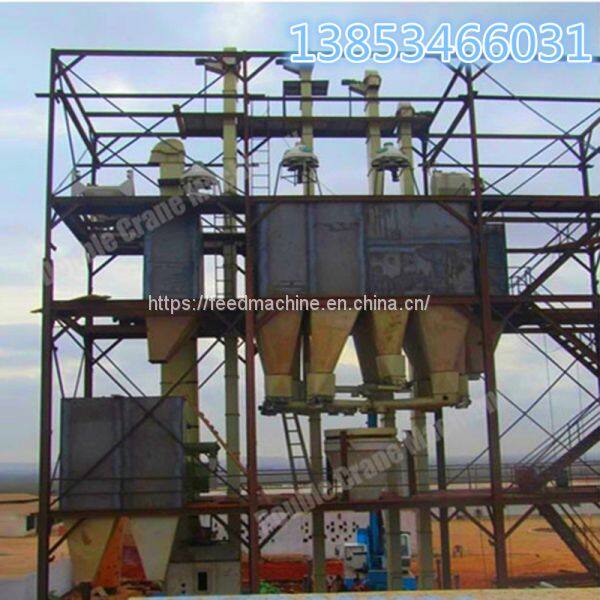

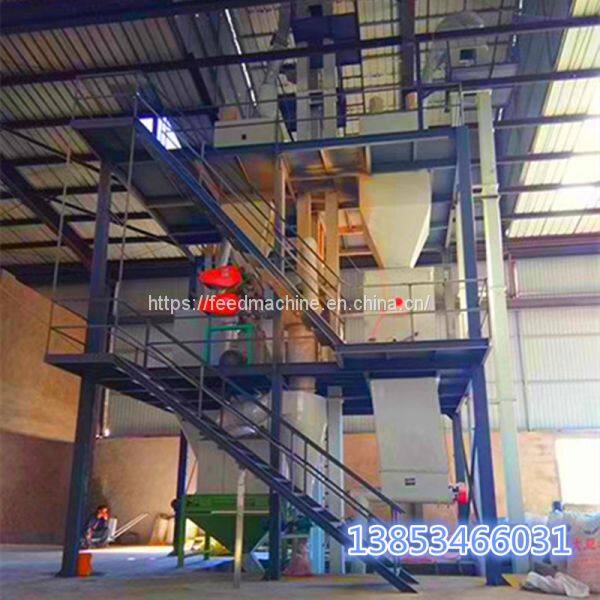

 is a complete set of machines that are specifically used to make feed pellets. The capacity of feed pellet line produced by Shandong Double Crane Machinery Manufacture Co.,Ltd. Range from 1ton per hour to 40ton per hour. The machine group generally including the following process: raw materials receiving and cleaning process, crushing process, mixing process, pellet making process, pellet cooling process,  sifting process and packaging process.

Features and Advantages

1.Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;

2.The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;

3.Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.

4.The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.

5.The Circulating lubrication oil system is specially designed to ensure the bearings in good condition.

6.The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.

Raw materials
Could be used for bean pulp,grain, corn powder,crushed straw and grass,the meat and bone meal,fish meal, Miscellaneous meal. Also can be used to process rice husk, cottonseed skins,weeds,crop stalks, sawdust, and other plant wastes, especilly low-bonging and unformed materials.

Range of application


The poultry feed pellet production line is used to Make the pellet for poultry/animal feed, such as the cow/cattle, the pigeon ,the rabbit , the chicken ,the fish , the dog, the pig ,the horse,the sheep ,the shrimp and other animal,etc.

Pellet size


1.For pig, the pellet diameter is usually ?3.5-6.5mm;

2.For cattle, the pellet diameter is usually ?4.5-8mm;

3.For chicken, pellet diameter is usually ?3.2mm;

4.For fish, pellet diameter is usually?2.0, ?2.5, ?3.0mm;

5.For shrimps, pellet diameter is usually ?1.0-?3.5mm.

Technical Parameters

Production Flow

The detailed process of Feed Mill Plant:

Step 1.Raw materials receiving and cleaning process-(drum sieving precleaner, conical powder sieve and peermanent magnetic drum).Drum sieving precleaner is used to clean and sort out the big debris such as corn stalk, stones, rope head, branches, corn cobs and the small debris such as mud, sand and blighted grain. When the raw materials are powder, conical powder sieve is used to clean the debris in the powder. (And the machine can also be used after the mixing process and before the pellet making process to make sure the pellet mill can be smooth operation).

Step 2. Crushing process---hammer mills We have many kinds of hammer mills for your choice: water drop hammer mill, multifunctional hammer mill and 9fq hammer mill etc. This process is mainly used to crush to raw materials into powder.

Step 3.Mixing process---feed mixer The feed mixer we have are single shaft double screw mixer, double shaft paddle mixer, vertical mixer. The process is used to mixed the crushed materials with higher unifomity.

Step 4.   Pellet making process---feed pellet mill We have five models of feed pellet mill for your choice. This process is to press the pellets out.

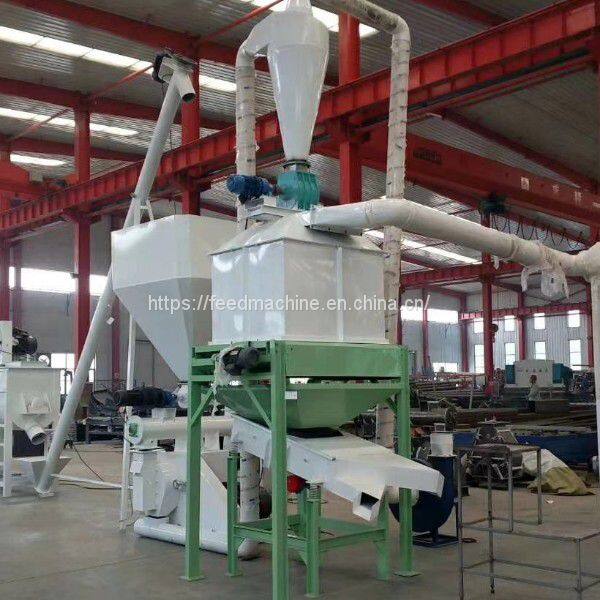

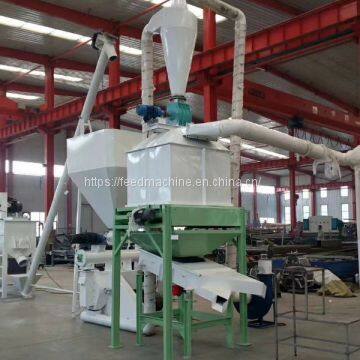

Step 5.Pellet cooling process---counterflow cooler The newly pressed pellets are very high in temperature. This process is to cool the pellets to ±3-5℃ of the room temperature.

Step 6.Pellet crumbling process----feed crumbler(roller crusher) This process is mainly to crush the big pellets into small ones. It is mainly used for chicken feed pellet line.

Step 7.Sifting process--vibratory sizing sieve and plenary rotary sizing sieve This process is mainly to sort out the inappropriate pellets and powder and send the standard pellets to next process.

Step 8. Packing process -----packaging machine This process is to pack the pellets into bags which is conveninet for storage and transportation.

Bangladesh -Chittagong ,20T/H fish expansion feed production line ;

Indonisia- Dumai, 10T/H fish sinking feed production line ;

Pakistan- Karachi, 5T/H Organic fertilizer pellet  production line;

Senegal-  Dakar, 420 livestock feed pellet plant 10T/H ;

Uzbekistan - Andijon, biomass sunflower husk pellet  plant 35T/H ;

Saudi Arabia -Jeddah, double 420 poultry feed pellet production line 20T/H ;

Russia -Vladivostok, double 350 cat litter pellet plant 6T/H ;

Ethiopia-Agaro , double 350 livestock feed pellet plant 8T/H;

Tanzania -Lindi,  350 poultry feed pellet plant 5T/H;

North Korea -Pogo, 20T/H powder premix production line ;

Panama-Santiago , double 508 livestock pellet plant 30T/H   .
