Self Service Terminal Touch Screen Kiosk Free Standing Kiosk

KMY 8500 Series Kiosk Basic Configuration

Components Specification

Computer Industrial Host:

Mother Board : Industrial motherboard CPU : Intel Core 2 (upgradeable as option)

RAM : 1GB(upgradeable as option)

HardDisk : 320 G (upgradeable as option)

(More sizes and types of PC available upon request)

Monitor TFT LCD : 15”, 17” or 19”

optional : Brightness 300~1200nits :

Contrast 450:1~1000:1

 Resolution: 15” 1024*768 17” 1280*1024 19” 1280*1024

More sizes between 20"~46" upon request

Touchscreen

SAW Touch : 15” 17” 19" : Resolution 4096*4096

 (More types of touchscreen available: capacitive, resistive or IR optional)

Input Device 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof

Card Reader Motorized/Dip :Magcard/IC reader; Shutter(motorized); Confiscate card(motorized)

Printer

Thermal Printer : Width 80mm~210mm; black mark sensor; full/half cutter

Dot Matrix : Width 80mm~210mm; black mark sensor; full/half cutter Bankbook :24 pin dual direction

Speaker Multimedia : Left-right bi-channel amplified output

Enclosure

ColdRoll Steel : Steel powdercoated front Powercoated backcover

OS&Drivers Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available

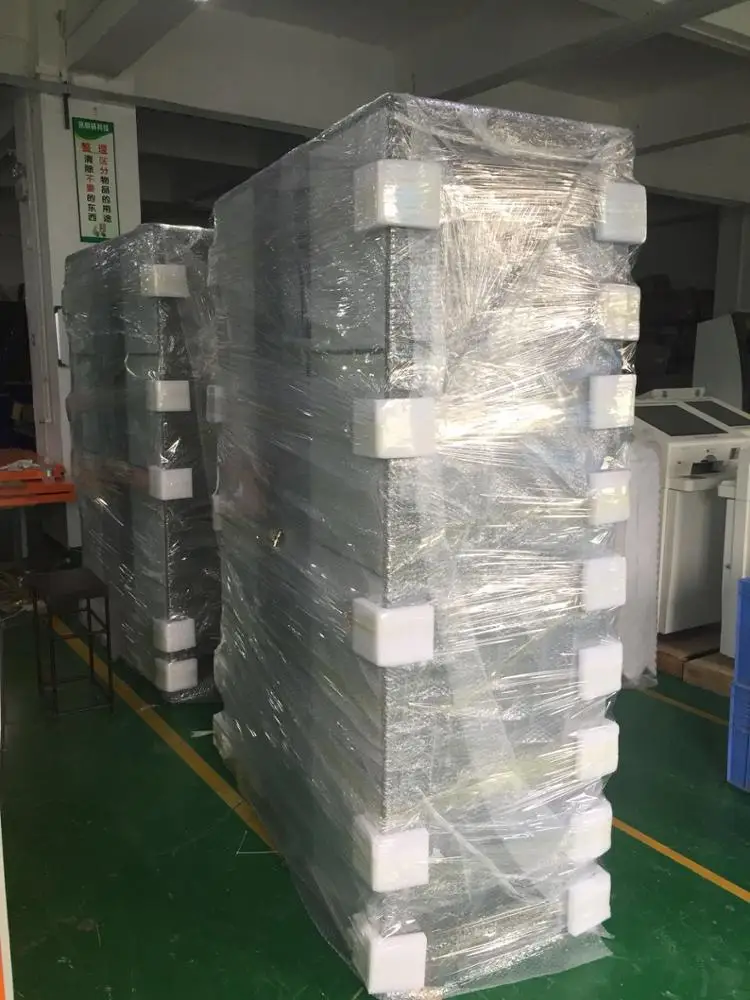

Packing Bubble Foam, carton, wooden case

Other Optionals : UPS, Video Camera, Alarm System, Barcode Scanner,Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc.

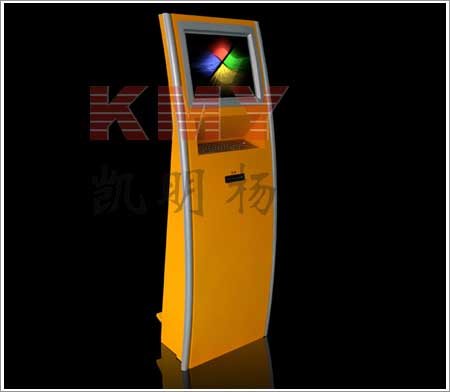

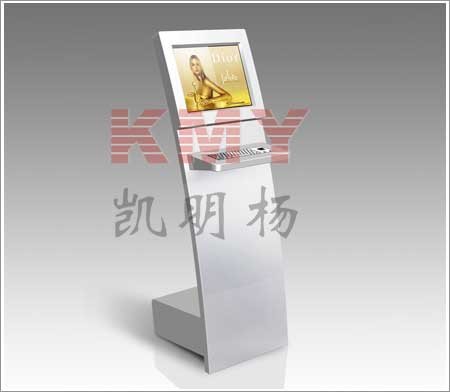

photos of  self sevice termianl touchscreen kiosk Free standing kiosk
