Home > Products > storage battery > 36V10AH 18650 Scooter Battery Pack Rechargeable Lithium Ion Power Battery System

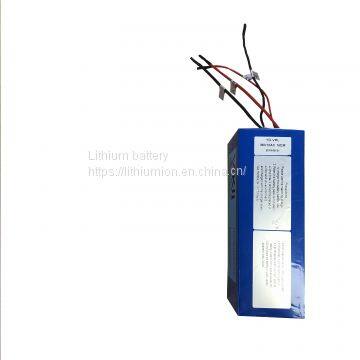

36V10AH 18650 Scooter Battery Pack Rechargeable Lithium Ion Power Battery System

FOB Price

US$ 200 - 300 / Pack

2 Packs(Min. Order)

Payment TermsT/T D/P D/A PayPal Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Li-Ion		Nominal Capacity	10AH
Nominal Voltage	Other, 48V

Product Description

10Ah battery lifepo batteries 36V power battery

Detailed parameters of 20Ah battery lifepo4 batteries 12V

Cell	model		GLP20Ah-70170240
	Capacity(0.5C)		2500mAh
	rated voltage(V)		3.7V
	Typical Impedance (mΩ)		≤2mW
	Battery material		Lifepo4 battery
Lithium ion phosphate battery pack	Combination method		4P4S
	Minimal capacity(0.5C)		10Ah
	Nominal voltage		36V
	Max. charge voltage		42V
	Discharge cut-off voltage		32V
	Max Charge current		10A
	Max Working current		15A
	Standard charge current		5A
	Standard discharge current		15A
	Pack Impedance standard		≤35mW
	Weight (Approx.)		≈13Kg
	Max. dimension(H×W×L)(mm)		≤ 190172250mm
	Operating temperature	Charge temperature	0℃~45℃
		Discharge temperature	-20℃~55℃
BMS	Single cell over-charge cut-off voltage		3.85V
	over-charge release voltage		3.65V
	Single cell under-discharge cut-off voltage		2.3V
	Discharge release voltage		2.5V
	Over-discharge cut-off current		60A
	Over-discharge cut-off current delay		1.5S
	Condition for the recovery of over-current and Short-circuit		Charging remove
	Balance current		/
	Balance Condition		/
	Communication protocol		/

Application of 20Ah rechargeable battery lifepo4 batteries 72V

Notice of 20Ah rechargeable battery lifepo4 batteries 12V

Use the battery charger specifically for that purpose when recharging.

Do not discard the battery in fire or a heater.

Do not dismantle the battery

Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.

Do not use or leave the battery near a heat source such as fire or heater.

Please choose LiFePO4 battery charger when charging.

Our Partners:

Our factory:

Packaging & Shipping:

Packaging: Paper Packaging and Wooden Packaging for DG.

Shipping:By Sea; By Air; EMS

FAQ:

(1). What’s kinds of battery will you provide?
We have three type battery: Lithium ion battery,LiFePO4 storage battery,LiFePO4 electric vehicle battery.There are many different model battery here, we can supply 3.2V 3.5ah-400ah LiFePO4 battery, 3.7v 100mah-3.7V 300Ah battery, 12v 0.8Ah-12v 400Ah battery.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). Can we change the color based on the original?
Yes, the color can be customer-made according to your requirement.
(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
