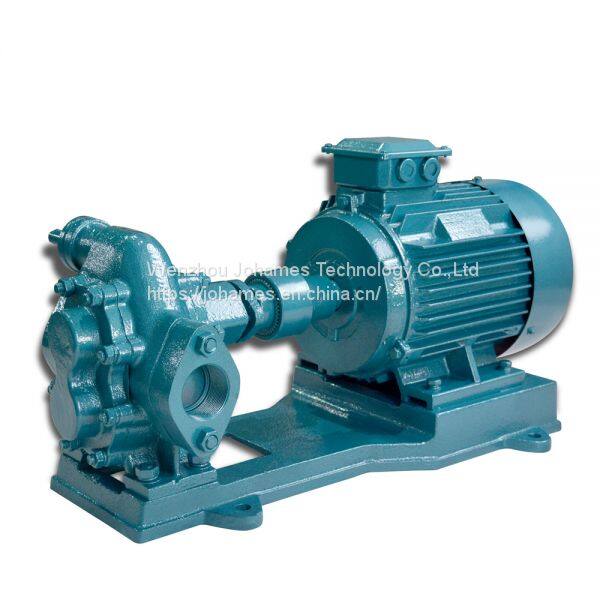

KCB Stainless Steel Oil Transfer Gear Pump

FOB Price

US$ 80 - 2000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T L/C PayPal Other Cash
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JOHAMES	Place of Origin	China
Model Number	KCB	Application	Other, Oil
Fuel	Diesel	Power	Electric
Usage	Oil	Theory	Rotary Pump
Standard or Nonstandard	Standard	Structure	Gear Pump
Pressure	Low Pressure

Product Description

Introduction:

1.KCB Stainless Steel Oil Transfer Gear Pump is capable of delivering non-corrosive oil that without solid particles & fiber. Such as lube, heavy oil, industry light oil, cooking oil, etc.

2. It can pump low flash point liquid when equipped with bronze gears.

3. It's horizontal reverse pump and is composed of casing, gear, bearing seat, relief valve, bearing and sealing device and so on.

4. The casing & bearing seat are made of cast iron.

5. It's widely used in oil depots, docks, ships, etc.

Product details:

Working Principle:	Double Gears
Main applications:	Oil, food oil(SS), Lubricating fluid
Driver:	Electric motor, diesel motor.
Power Specs:	220/380/415/440V 3phase; 110/220/240V single phase; 50hz/60hz,etc
Max. permissible fluid temperature:	80°C/300°C(SS with high temp seal)
Type of connection:	Flange, Thread, Quick Coupled.
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type:	Oil seal, F4 seal, Mechanical seal;
Free passage:	00 mm
Maximum viscosity:	1.5×103CST
Maximum drive rating:	75KW(100HP)
Maximum caliber:	150mm(6inch)
Maximum discharge-side pressure:	1.45Mpa(14.5bar)
Flow rate range:	18.3-2500L/min(4.8-660US.GPM)

Performance data:

Model	Caliber (Inch)	Capacity (L/min)	Pressure (MPa)	Power (KW)	Custom services
KCB-18.3	3/4"	18.3	1.45	1.5	110V, 220V, 380V, 400V, 415V, 440V 50Hz or 60Hz Single phase Or three phase Ordinary motor EX motor Electromagnetic variable speed motor Frequency variable Speed motor Cast iron SS304 SS316 Thread Flange Insulation jacket Electric heating rod Trolley Magnetic drive non-leakage type
KCB-33.3	3/4"	33.3	1.45	2.2
KCB-55	1"	55	0.33	1.5
KCB-55	1"	55	0.5	2.2
KCB-83.3	1 1/2"	83.3	0.33	2.2
KCB-83.3	1 1/2"	83.3	0.5	3
KCB-200	2"	200	0.33	4
KCB-200	2"	200	06	5.5
KCB-300	3"	300	0.33	5.5
KCB-300	3"	300	0.6	7.5
KCB-483.3	3"	483.3	0.33	7.5
KCB-483.3	3"	483.3	0.6	11
KCB-633	4"	633	0.28	11
KCB-633	4"	633	0.6	22
KCB-960	4"	960	0.3	18.5
KCB-960	4"	960	0.6	30
KCB-1667	6"	1667	0.3	30
KCB-1667	6"	1667	0.6	55
KCB-2000	6"	2000	0.3	30
KCB-2000	6"	2000	0.6	55
KCB-2500	6"	2500	0.3	37
KCB-2500	6"	2500	0.7	75
