Cheap diamond core drilling rig drilling rig for soil investigation for sale
- 1 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
You May Like
-
Fullway sale soil and core sampling drilling rig portable core drilling machine
-
Mining diamond rotary drilling machine rock drilling machine portable
-
China sale rock core sampling drilling machine diamond core drilling rig
-
50m coring machine diamond core drill machine core bit drill
-
Diesel portable drill machine core bit tools of exploration drilling machine
-
Fullway core drilling rig geological exploration drill machine for sale
Product Details
| Brand Name | Fullway | Place of Origin | China | |
| Model Number | QZ-2CS | Type | Rotary Drilling Rig | |
| Certification | ce | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | one year | Weight | 95kg | |
| Dimension(L*W*H) | 600*450*1900 | Power Type | Gasoline | |
| Voltage | 220V | Usage | Coal | |
| Condition | New | Power(W) | 4.5kw |
Product Description

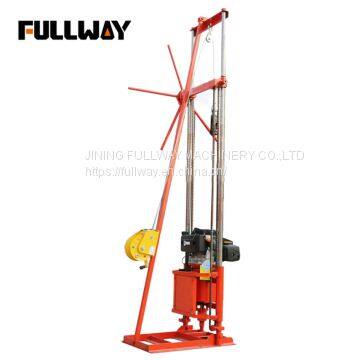

QZ-2CS gasoline engine sampling drilling rig
1.Brief introductions of QZ-2CS gasoline engine sampling drilling rig
QZ-2CS gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.
QZ-2CS gasoline engine sampling drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2.Specifications of QZ-2CS gasoline engine sampling drilling rig
QZ-2CS gasoline engine sampling drilling rig | ||
End hole diameter (mm) | 32-91 | |
Drilling depth（m） | soil φ91：10-15m stoneφ91：5-10m stoneφ75：10-15m stoneφ60：15-20m stoneφ46：20-30m | |
Drilling pipe diameter(mm) | 30 | |
Gasoline engine | horse power(hp） | 6(4.5kw) |
displacement（cc） | 224 | |
Dimension（l*w*h） | 600*450*1900 | |
Weight（kg） | 95 | |
3.Configuration list of QZ-2CS gasoline engine sampling drilling rig
Item | Parameter | Unit | Quantity |
Gasoline engine sampling drilling rig | QZ-2CS | set | 1 |
Drilling pipe | 30*1500 | pc | 6 |
Drilling pipe | 30*800 | pc | 14 |
Pipe joint | 38 | pc | 20 |
Reducing nipple | 58/38 | pc | 2 |
Core barrel | 58*800 | pc | 1 |
Core barrel | 58*1500 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Diamond bit | 60 | pc | 1 |
Reducing nipple | 73/38 | pc | 2 |
Core barrel | 73*800 | pc | 1 |
Alloy bit | 75 | pc | 1 |
Diamond bit | 75 | pc | 1 |
Three-wing bit | 75 | pc | 1 |
Safety clamp | pc | 1 | |
Water seal | Y 30*50*10 | pc | 4 |
Oil seal | 30*50*10 | pc | 1 |
Pipe wrench | 18 | pc | 2 |
Monkey wrench | pc | 1 | |
Shaft snap ring clamp | pc | 1 | |
Hole snap ring clamp | pc | 1 | |
Clamp | pc | 1 | |
Cross screwdriver | pc | 1 | |
Hex wrench | pc | 1 | |
Control wheel | pc | 1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
