CC1310 PA RF Module 1W 30dBm 868Mhz 915Mhz
USD $10 - $12
/ Piece
10 Pieces(Min.Order)
- shenzhen
- T/T
- 7 days
You May Like
-
CC1120 Narrowband RF Module 1W 30dbm 169Mhz,434Mhz,868Mhz,915Mhz
-
SX1272 LORA RF module 1W 30dbm LORAWAN CE FCC
-
433.92Mhz ASK Receiver RF Module 315Mhz
-
433.92Mhz ASK Receiver RF Module 315Mhz Transmitter
-
433.92Mhz ASK Receiver RF Module 315Mhz Transmitter radio handset
-
433.92Mhz ASK Receiver RF Module 315Mhz Transmitter radio handset Remote control
Product Details

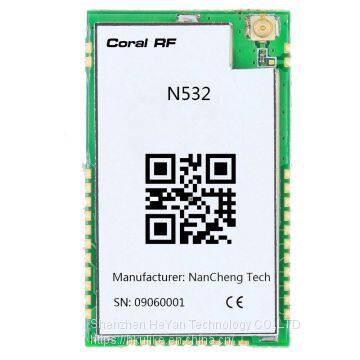

| Brand Name | Coral RF | Model Number | N532 |
Product Description
Technical specifications
Hareware Information
Interfaces: SPI,IIC,UART
Dimension: 36 x 22mm x 3mm
Operating voltage: 2 - 3.6V
PA Operating voltage: 2 - 4.8V
Operating temperature: -30°C to +70°C
Consumption(Sleep) : 2uA
Consumption (RX): 9mA
Consumption (TX): 1400mA
RF chip: CC1310/CC1312
Mounting: SMD
Software
Asynchronous Transparent
mode Low Power mode
Secure mode
RSSI mode
Serial bootloader
Adjustable packet size
Wireless Interface
RF pin,IPEX
Frequency:410-510Mhz,860-960Mhz
Modulation: FSK
RF data rate: 1 - 1000Kbps
RF output power: up to 30dBm（3.3V）
RF sensitivity: -122dBm
