Home > Products > Exploration Drilling Rig > Hydraulic Core Drilling RigXY-100 hydraulic core drilling rig

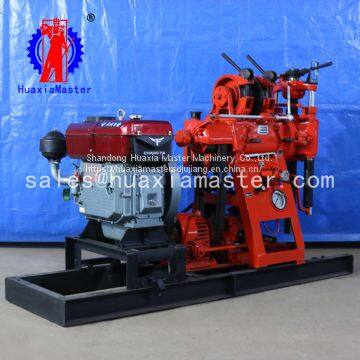

Hydraulic Core Drilling RigXY-100 hydraulic core drilling rig
1000 - 10000
/ Set
1 Set(Min.Order)
- 1200 Bag / Bags per Month
- QINGDAO
- T/T L/C D/P D/A
- 7 days
You May Like
-
Hydraulic Core Drilling RigXY-150 hydraulic core drilling machine
-
Hydraulic Core Drilling RigXY-180 hydraulic core drilling machine
-
Hydraulic Core Drilling RigXY-200 hydraulic core drilling machine
-
Hydraulic Core Drilling RigXY-3 hydraulic core drilling machine
-
Hydraulic Core Drilling RigXYX-3 wheel hydraulic core drilling machine
-
Hydraulic Core Drilling RigXYD-3 track hydraulic core drilling machine
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Type | Core Drilling Rig | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 6 months | |
| Weight | 610kg | Dimension(L*W*H) | 2.1*0.9*1.3m | |
| Power Type | Gasoline | Usage | Ore | |
| Condition | New |
Product Description
XY-100 hydraulic core drilling rig
1. Applications of XY-100 hydraulic core drilling rig
XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 hydralic core drilling rig
| Drilling depth | 110 |
| Maximum open hole caliber | 220mm |
| End hole caliber | 75mm |
| 50mm /42mm | |
| Drilling angle | 90 |
| Drilling rig weight (exclude diesel engine) | 610kg |
| Unity machine dimensions | 2.1*0.9*1.3m |
| Spindle speed | 130/300/480/730/830/1045 r/min |
| Spindle stroke | 450mm |
| Max. lifting capacity with single rope | 1600kg |
| Lifting speed with single rope | 1.06/0.67/0.32 m/s |
| Wire rope caliber | 13mm |
| Wire rope cubic measure | 35mm |
| Hug floodgate caliber | 254mm |
| Hug floodgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Type | Horizontal single-urn twin-action |
| Displacement (with diesel engine/electric motor) | 170l/min |
| Max. pressure | 1.5mpa |
| Work pressure | 0.7mpa |
| Diesel engine | S1100 |
| Electric motor | Y160M-4 / 10KW |
