Home > Products > Test Charts > Sine Image YE0226 Color Rendition Test Chart for HDTV Cameras 36 Color Patches and 9-step Grayscale Color Chart

Sine Image YE0226 Color Rendition Test Chart for HDTV Cameras 36 Color Patches and 9-step Grayscale Color Chart

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Port Shenzhen, China
Payment TermsT/T Credit Card PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sine Image		Place of Origin	China
Model Number	YE0226

Product Description

PRODUCT DETAILS

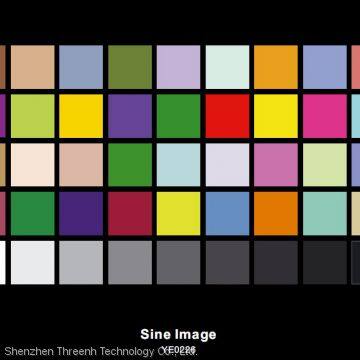

The YE0226 is designed for the evaluation of the color rendition of HDTV cameras. The chart consists of 36 color patches and a 9-step gray scale. In addition to the primary and secondary colors the test chart contains mainly the colors, which are critical in reproduction, e.g. dark and light skin tones, foliage, blue sky, orange, violet and others.

The chart consists of 36 color patches and 9-step gray scale. Besides the primary and secondary colors (blue, green, red, yellow, purple and cyan) the test chart contains mainly colors, which are critical in reproduction, e.g. dark and light skin tones, foliage, blue sky, orange, violet and others.

The colorimetric reports of the 36 colors are shown on the following page.

The 9-step gray scale is graduated as follows:

Step	Density	Transmission in %
1	0.00	100

2	0.06	88

3	0.20	63

4	0.36	44

5	0.55	28

6	0.81	16

7	1.15	7

8	1.65	2

9	> 3.00	0

The density is based on the 1st step of the gray scale.

Date

Some of the filter foils used are not fade less, especially when exposed to sunlight (ultra violet light). We therefore recommend to store the chart in the folder or case when not in use. We also recommend and offer a recalibration of the chart after 3 years of regular use.

Colorimetric data YE0226 – transparency standard illuminant D65

No.	Color	X	Y	Z	U′	V`	X	Y	Z	CB	CR
1	Dark skin	0,126	0,116	0,060	0,250	0,510	0,420	0,390	68,000	-16,400	18,000
2	Light skin	0,438	0,401	0,301	0,240	0,490	0,380	0,350	136,100	-14,400	26,700
3	Blue sky	0,175	0,198	0,312	0,170	0,440	0,260	0,290	93,400	13,600	-17,700
4	Foliage	0,072	0,123	0,020	0,150	0,560	0,340	0,580	66,800	-38,300	-23,200
5	Blue flower	0,352	0,334	0,565	0,200	0,430	0,280	0,270	124,900	20,400	1,800
6	Bluish green	0,307	0,419	0,438	0,150	0,480	0,260	0,360	137,100	-0,140	-40,100
7	Orange	0,410	0,337	0,046	0,290	0,540	0,520	0,420	116,100	-62,500	50,900
8	Purplish blue	0,180	0,188	0,550	0,150	0,360	0,200	0,200	84,000	43,400	-41,600
9	Moderate red	0,292	0,210	0,134	0,310	0,490	0,460	0,320	88,000	-10,100	49,300
10	Purple	0,121	0,075	0,378	0,200	0,280	0,210	0,130	46,900	49,100	8,100
11	Yellow green	0,458	0,615	0,261	0,170	0,530	0,340	0,460	169,000	-44,400	-19,500
12	Orange yellow	0,538	0,485	0,084	0,270	0,540	0,490	0,440	144,400	-68,900	45,200
13	blue flower	0,099	0,048	0,550	0,160	0,180	0,140	0,070	18,400	81,400	-29,400
14	Green	0,103	0,224	0,050	0,110	0,560	0,270	0,590	81,300	-38,800	-74,900
15	Red	0,316	0,160	0,003	0,460	0,530	0,660	0,330	35,500	-25,700	102,500
16	Yellow	0,508	0,581	0,033	0,220	0,560	0,450	0,520	157,200	-116,900	20,300
17	Magenta	0,429	0,222	0,560	0,320	0,370	0,350	0,180	69,100	52,900	80,100
18	Cyan	0,481	0,586	0,940	0,160	0,440	0,240	0,290	163,000	24,800	-46,100
19		0,253	0,246	0,140	0,230	0,510	0,400	0,380	104,900	-20,400	18,100
20		0,631	0,600	0,498	0,230	0,490	0,360	0,350	168,200	-13,200	24,000
21		0,348	0,330	0,244	0,230	0,490	0,380	0,360	123,500	-14,400	19,900
22		0,132	0,301	0,070	0,110	0,560	0,260	0,590	90,200	-39,200	-103,400
23		0,348	0,438	0,553	0,160	0,460	0,260	0,330	141,600	8,400	-34,000
24		0,512	0,515	0,783	0,190	0,440	0,280	0,280	156,500	18,600	-3,900
25		0,334	0,208	0,020	0,380	0,530	0,590	0,370	75,700	-43,100	74,200
26		0,401	0,550	0,438	0,160	0,500	0,290	0,400	159,200	-14,500	-35,700
27		0,158	0,151	0,563	0,150	0,330	0,180	0,170	70,600	52,400	-45,600
28		0,132	0,095	0,116	0,280	0,450	0,380	0,280	57,700	5,500	28,100
29		0,215	0,415	0,454	0,110	0,480	0,200	0,380	95,100	24,100	-168,900
30		0,150	0,078	0,611	0,190	0,220	0,180	0,090	40,300	74,200	4,000
31		0,279	0,135	0,146	0,410	0,440	0,500	0,240	34,300	24,300	90,300
32		0,793	0,847	0,500	0,210	0,510	0,370	0,400	200,600	-34,900	13,500
33		0,135	0,161	0,434	0,140	0,380	0,190	0,220	70,700	40,100	-62,100
34		0,014	0,074	0,060	0,050	0,510	0,100	0,490	35,300	2,800	-84,000
35		0,626	0,540	0,232	0,270	0,520	0,450	0,390	155,100	-37,600	47,100
36		0,410	0,436	0,288	0,210	0,500	0,360	0,380	143,400	-21,300	8,900

All values calculated from the colorimetric measurement results (CIE-XYZ values) for the ITU Rec. 709. The brightness is related to the picture white of patch 37 (=100% transmission).
