Yuchai Yc6j Series Bus Diesel Engine Power Yc6j230-20

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yuchai	Model Number	YC6J230-20
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year
Weight	400-1000KGS	Condition	New
Fuel	Diesel	Start	Electric Start
Cold Style	Water-Cooled	Stroke	4 Stroke
Usage	Other, Indutrial	Cylinder	Multi-cylinder

Product Description

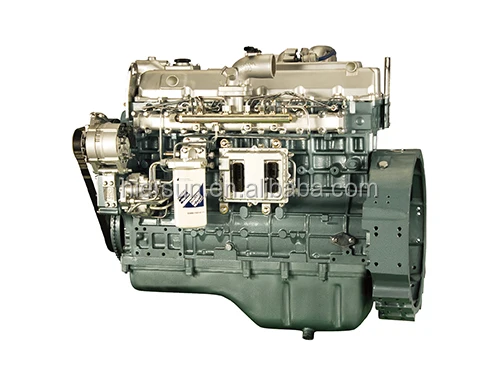

Yuchai YC6J Series Bus Diesel Engine power YC6J230-20

Product Description

Yuchai YC6J Series bus diesel engine

Features & Benefits

Designed and developed based on Germany technology platform.
Built upon the proven durability of YC6105Q, while adding our rich market experience for 30 years.
One-piece cylinder head and wet sleeve liners – Ensure a longer performance life.
High torque, low-speed performance outperform most of their domestic competitors.
Intelligent electronic control system-Complete in functionality.
Spare parts of Euro3 and Euro 4 versions are highly interchangeable, making replacement parts easier to access.
Point-line meshing gear drive- Give you the best comfort ride with less noise and vibration.

Yuchai YC6J Series bus diesel engine package for other power output

Techincal Specifications

Engine Model	YC6J160-21	YC6J170-21	YC6J180-21		YC6J210-20
Configuration	Vertical, in-line, 4 stroke, water-cooled, direct injection
Number of Cylinders	6
Bore x Stroke (mm)	105x125
Displacement (L)	6.49
Displacement (L)	6.49
Aspiration	Turbocharged, inter-cooled
System	P-pump
Rated Power /Speed (kW/r/min)	118/2500	125/2500	132/2500	140/2500	155/2500
Peak Torque/Speed (N.m/r/min)	520/1400-1700	550/1400-1700	590/1400-1700	630/1400-1700	710/1400-1600
Min. fuel consumption with full load (g/kW.h)	≤200
Noise (ISO 3744)dB(A)	≤99
Emissions	Euro 2
Dry Weight (kg)	733
Application	6-14T medium-duty tractor trucks

Engine Model	YC6J180-30	YC6J190-30	YC6J200-30	YC6J220-30	YC6J230-30
Configuration	Vertical, in-line, 4 stroke, water-cooled, direct injection
Number of Cylinders	6
Bore x Stroke (mm)	105x125
Displacement (L)	6.49
Displacement (L)	6.49
Aspiration	Turbocharged, inter-cooled
Fuel System	BOSCH
Rated Power /Speed (kW/r/min)	132/2500	140/2500	147/2500	162/2500	170/2500
Peak Torque/Speed (N.m/r/min)	650/1200~1700	700/1200~1700	730/1200~1700	800/1200~1700	850/1200~1700
Min. fuel consumption with full load (g/kW.h)	≤200
Noise (ISO 3744) dB(A)	≤99
Emission	Euro 3
Emission	Euro 3
Dry Weight (kg)	≤760
Application	6-12T on-road medium-duty trucks; 6×4/6×2/4×2 construction vehicles; 4×2 tractor trucks;

Engine Model	YC6J220-42	YC6J210-42	YC6J200-42	YC6J190-42	YC6J180-42	YC6J170-42	YC6J160-42
Configuration	Vertical, in-line, 4 stroke, water-cooled, direct injection
Valves per Cylinder	4
Displacement (L)	6.49
Bore x Stroke (mm)	105×125
Aspiration	Turbocharged, inter-cooled
Rated Power /Speed(kW/r/min)	162/2500	155/2500	147/2500	140/2500	132/2500	125/2500	118/2500
Peak Torque/Speed (N.m/r/min)	800/1200~1700	760/1200~1700	730/1200~1700	700/1200~1700	660/1200~1700	550/1200~1700	550/1200~1700
Min. fuel consumption with full load (g/kW.h)	≤196
System	BOSCH+ SCR
Noise (ISO3744) dB(A)	≤95
Emission	Euro 4
Dry Weight (kg)	680
Application	6×4/6×2/4×2 medium-duty trucks, 4×2 construction vehicles,4×2 low-speed tractors;

Engine Model	YC6J220-46	YC6J210-46	YC6J200-46	YC6J190-46	YC6J180-46	YC6J170-46	YC6J160-46
Configuration	Vertical, in-line, 4 stroke, water-cooled, direct injection
Valves per Cylinder	4
Displacement (L)	6.49
Bore x Stroke (mm)	105×125
Aspiration	Turbocharged, inter-cooled
Rated Power /Speed(kW/r/min)	162/2500	155/2500	147/2500	140/2500	132/2500	125/2500	118/2500
Peak Torque/Speed (N.m/r/min)	760/1400~1700	710/1400~1700	700/1400~1700	630/1400~1700	590/1400~1700	550/1400~1700	550/1400~1700
Min. fuel consumption with full load (g/kW.h)	≤196
System	BOSCH+ SCR
Noise (ISO3744) dB(A)	≤95
Emission	Euro 4
Dry Weight (kg)	680
Application	6×4/6×2/4×2 medium-duty trucks;

Packaging & Shipping

Company Information

Hiersun Group is a China professional manufacturer of diesel generator set, and we are committed to supply diesel generator genuine Yuchai YC6J Series, Yuchai YC6J Series, Caterpillar, Daewoo, MTU, the engine power pack for oilfield, crane, pump and other construction field. We keep strengthen the supervision over the production and processing course, to establish and perfect the quality guarantee body, please follow us for more news of this industry.
