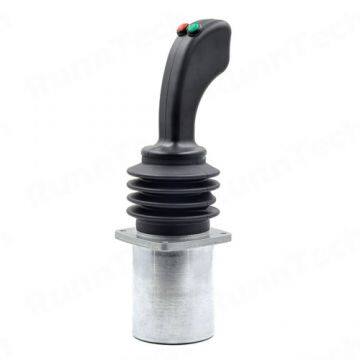

RunnTech Multi-axis Full Grip 4-20mA Output Industrial Joystick with 10K Potentiometer
USD $38 - $98
/ Piece
1 Piece(Min.Order)
- 500000 Piece / Pieces per Month
- Shanghai
- T/T L/C PayPal Other
You May Like
-
RunnTech 3 Axis Hall Effect Compact Fingertip Joystick for PTZ Robotic Video Cameras
-
RunnTech 2 Steps Movement Single-axis Friction Position Crane Master Joystick Lever
-
RunnTech Multi-axis Simple 2 Directions Proportional Output 10k Potentiometer Joystick
-
RunnTech 2 Axis 0.5 to 4.5V Analog Output Fingertip Joystick with Momentary Button
-
RunnTech Single-axis Self-centering Analog Output Joystick for Variable Speed Control
-
RunnTech 3 Axis Spring-return Hall Effect Sensor Joystick with 0 to 5V DC Analog Output
Product Details
| Brand Name | RunnTech | Model Number | RunnTech Multi-axis Full Grip 4-20mA Output Industrial Joystick with 10K Potentiometer |
Product Description
Part number: RT02-T-3-I1(10K)-03(589)-HD9-BT2③R②G-M6
RT02: RunnTech 02 series robust joystick controller;
T: mechanical spring return to zero position;
3: dual axis omnidirectional movement;
I2: input: 24VDC, output: 20…4…20mA;
10K: 10K ohm precision potentiometer;
03: 3 normally open contacts in each axis;
589: 2 direction signals + 1 zero position signal in each axis;
HD9: grip with multi-function pushbuttons;
BT2⑥R④G: 2 momentary pushbuttons;
M6: mounting dimension: 76x76mm, central hole: 92mm.
About RT02 Multi-axis Joystick Controller
RT02 rugged industrial joystick controller is designed for hydraulic proportional control and variable frequency motor control, such as Construction machinery, Precision machine, Military robotics, Refuse handling trucks, Unmanned vehicles, Rotary drilling rigs, Cranes, Marine etc. Available in one two or three axis configurations, this joystick can be supplied with non-contact Hall effect sensors or long life potentiometer tracks.
