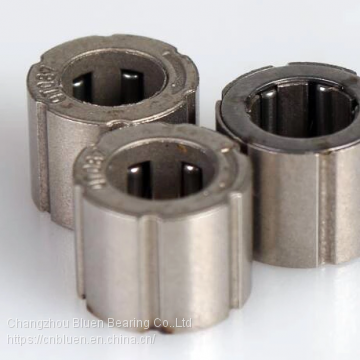

Fishing Reel One Way Clutch Bearing OWC series with needle type
- 10000 Piece / Pieces per Month
- Shanghai / Ningbo / Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Other
- 1 days
You May Like
-
AA series Engine Bearing One Way Clutch Bearing Manufacturer Auto Clutch
-
ASK Series Roller Type One Way Clutch Bearing
-
AV series Freewheel Backstop One-Way Rotation Bearings
-
BB series Cam Clutch Roller Type Bearing
-
B200 Series Sprag Type One Way Bearing Backstop Clutch
-
BWC/BWX SERIES Single Way Bearing Auto Clutch with Sprag Type
Product Details
| Brand Name | BLUEN | Place of Origin | China | |
| Model Number | OWC | Number of Row | Single Row | |
| Seals Type | sealed | Precision Rating | P0 | |
| Outside Diameter | 20, 33 | Bore Size | 4, 10 |
Product Description
Brief Indroduction
-OWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and make the structure more compact as well as higher performance.
-Material:
The outer ring of OWC one-way clutch is made by sintered metal, and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by
external environment.
-Charicteristics:
1.The structure is all metal ,which gives full play to the excellent heat resistant characteristic.
2.Short in diameter and thin in depth ,which makes the miniaturization of machine become
possible.
3.Two standard : clockwise (R type) and anticlockwise (L type)
4.Because of the protection of protective layer, it can provide the performance of single functional
components.
5.The gears and pulleys (made by resin) are easily pushed ,which makes it easily to assemble.
Different Sizes for Your Reference
| Shaft Dia. mm | Model | Weight | Size (mm) | Driving Torque | ||
| g | Inner Dia. | Outer Dia. | Height | ( Nm ) | ||
| 4 | OWC 410 | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC 511 | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC 612 | 2.3 | 6 | 12 | 5.4 | 5.2 |
| 8 | OWC 814 | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 10 | OWC 1016 | 3 | 10 | 16 | 5.4 | 9.5 |
| 4 | OWC 406 | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC 408 | 1.8 | 4 | 8 | 8 | 3.1 |
| 6 | OWC 612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC 61407 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC 720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC 087 | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC 178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC 81607 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC 812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC 816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC 816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC 1008 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC 1019 | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC 173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC 173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC 203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED | ||||||
