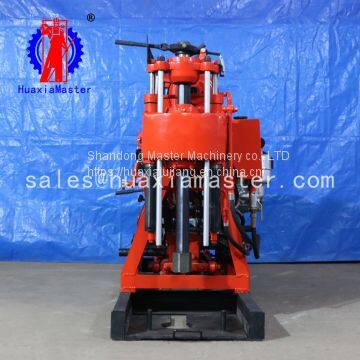

XY-100 hydraulic core drilling rig / geological exploration drill
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
- 10 days
You May Like
-
XY-130 100m water well cor sampling drilling machine geological drilling machine
-
Hydraulic XY-150 water well drilling rig / 150m borehole testing equipment
-
XY-180 hydraulic water well drilling rig / 150 meter rig price
-
200m well drilling rig / Hydraulic drilling machine on sale
-
Cost-effective XY-3 water well auger drill / oil drilling rig / bore well drilling machine price
-
XY-8 Excellent Direct Sale Portable type Folded Small Water Well Drilling Rig
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | XY-100 | Type | Rotary Drilling Rig | |
| Certification | ISO 9001 | After-sales Service Provided | No overseas service provided | |
| Warranty | 6 Months | Weight | 610kg | |
| Dimension(L*W*H) | 2.1*0.9*1.3m | Power Type | Diesel | |
| Voltage | NO | Usage | Water Well | |
| Condition | New | Power(W) | 10KW |
Product Description
XY-100 hydraulic water well drilling rig
1.Applications of XY-100 hydraulic water well drilling rig
XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2.Specifications of XY-100 hydraulic water well drilling rig
Drilling depth | 110 |
Maximum open hole caliber | 220mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm /42mm |
Drilling angle | 90 |
Drilling rig weight (exclude diesel engine) | 610kg |
Unity machine dimensions | 2.1*0.9*1.3m |
Spindle | |
Spindle speed | 130/300/480/730/830/1045 r/min |
Spindle stroke | 450mm |
Hoist | |
Max. lifting capacity with single rope | 1600kg |
Lifting speed with single rope | 1.06/0.67/0.32 m/s |
Wirerope caliber | 13mm |
Wirerope cubic measure | 35mm |
Hug floodgate caliber | 254mm |
Hug floodgate belt width | 50mm |
Distance between drill and hole | 230mm |
Mud pump | |
Type | Horizontal single-urn twin-action |
Displacement (with diesel engine/electric motor) | 170l/min |
Max. pressure | 1.5mpa |
Work pressure | 0.7mpa |
Power | |
Diesel engine | S1100 |
Electric motor | Y160M-4 / 10KW |
