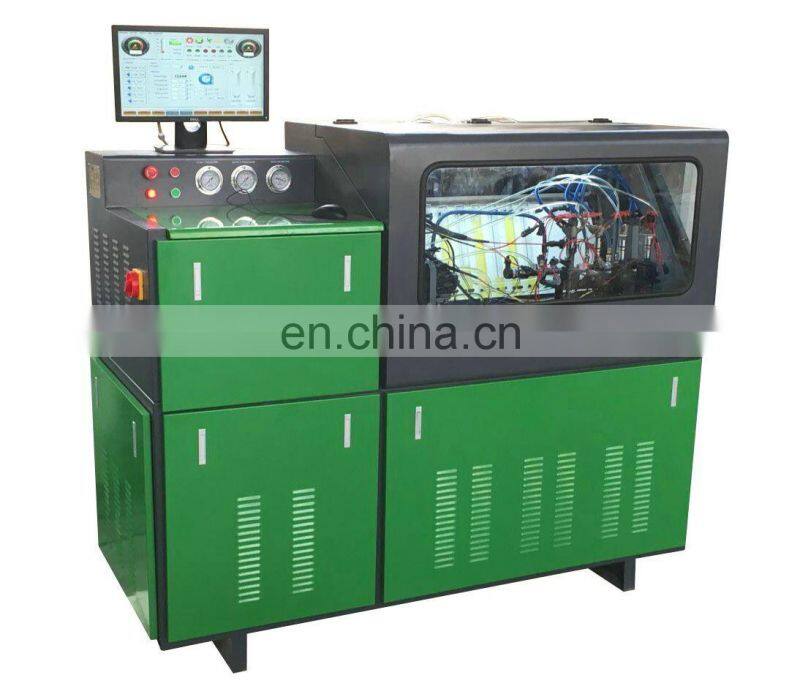

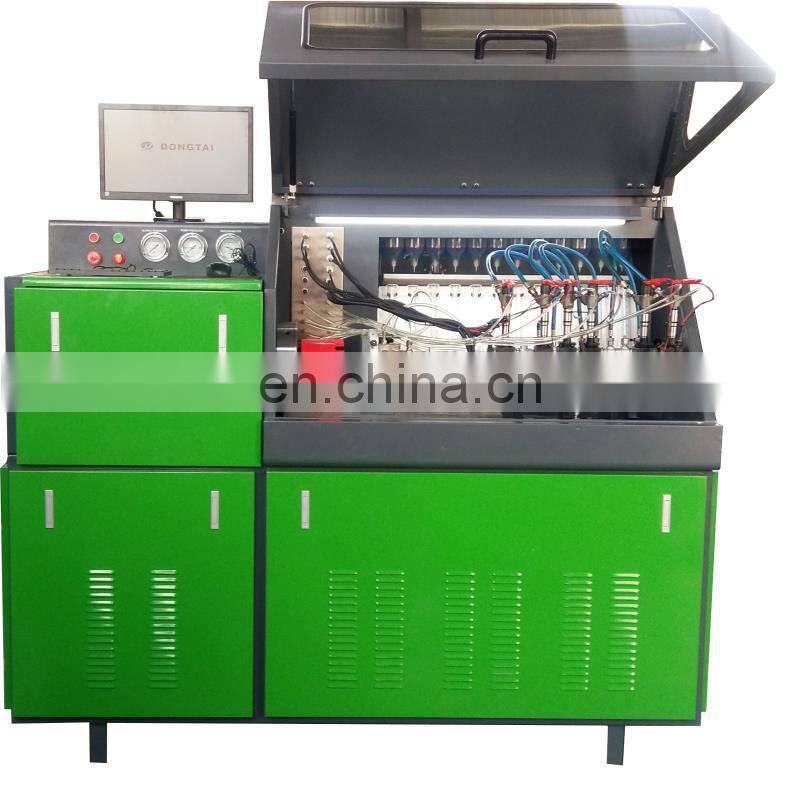

CR3000A -708 Common Rail Diesel Injector Test Bench

CR3000A Common Rail Pump And Injector Test Bench

CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.It has common rail data inside. It can test 6 pcs injector at same time. It show the delivery oil by measuring glass.

Common Rail Injector Common Rail Pump
1. Test 6 pieces of injectors at same time.

2.Test the double plunger HP0 pump of
3. Test the pre-injection of the high-pressure common rail injector.
4. Test the sealing of common rail pump.
5.Test the max oil quantity of high-pressure common rail injector
6. Test the internal pressure of common rail pump.
7. Test the cranking oil quantity of high-pressure common rail injector.
8. Test the proportional electromagnetic valve of common rail pump.
9. Test the backflow oil quantity of high-pressure common rail injector.
10. Test the input pressure of common rail pump.
11. Test the average oil quantity of high-pressure common rail injector.
12. Test the flux of common rail pump

>Optional Function:
1) Forced cooling system
2)EUI EUP
3)HEUI
>>>TECHNICAL PARAMETER
Injection testing frequency :50~3000 rpm Pulse width: 0.1~200 ms
Continuous injection times: 0~1000 Fuel temperature :40±2℃
Supply oil quantity of common rail injector: 0~200cc/min 0.5%
Rail high pressure :0~2000 bar Test oil filtered precision :5μ
Input power :380V/50hz/3phase or 220V/60hz/3phase
Rotation speed:0~4000RPM Oil tank capacity: 60L
Flywheel inertia’s moment: 0.8KG.M2 Center height: 125MM
Output power :7.5KW(11kw,15kw,18.5kw as request)
