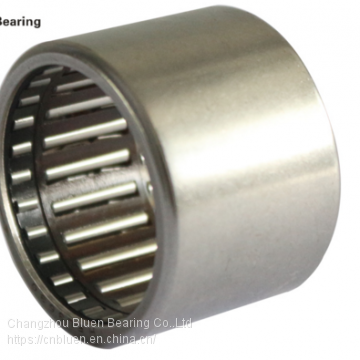

HFL Series One Way Needle Bearing
- 10000 Piece / Pieces per Month
- Shanghai / Ningbo / Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Other
- 1 days
You May Like
-
EWC series One Way Needle Bearing Small One Way Clutch
-
Fishing Reel One Way Clutch Bearing OWC series with needle type
-
AA series Engine Bearing One Way Clutch Bearing Manufacturer Auto Clutch
-
ASK Series Roller Type One Way Clutch Bearing
-
AV series Freewheel Backstop One-Way Rotation Bearings
-
BB series Cam Clutch Roller Type Bearing
Product Details
| Brand Name | BLUEN | Place of Origin | China | |
| Model Number | HFL3-35 | Number of Row | Single Row | |
| Seals Type | no | Precision Rating | P6 | |
| Outside Diameter | 3.6, 42 | Bore Size | 3, 35 |
Product Description
Introduce of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Parameter of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
Shaft Diameter | Clutch Designation | Mass Approx |
Borndary Dimensions | Torgue Ma | Basic Load Ratings | ||||||
Limiting Speed | |||||||||||
Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | C | Co | |||||
KN | |||||||||||
mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
HFL | |||||||||||
3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
-- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
-- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
