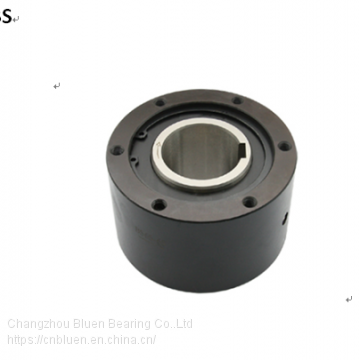

BS series and BS...HS series Backstop Clutch

Product Description

MODEL : BS series and BS...HS series Backstop Clutch

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor

head shaft is to prevented (backstopping).

MODELS BS30 TO BS135

The BS-HS series offer higher torque and speed not found in convention models.

MODELS BS160HS TO BS450HS

Dimensions and Capacities dimensions in mm

Model	Torque Capacity (N·m)	Max. Overrunning (r/min) Inner Race	Drag Torque (N·m)	A	B	C	PCD D	E	S	H-M Size× Pitch × No.of Tapped HoleS	Grease Filler Hole (Size)	Q’ty Grease (kg)
BS30	294	350	0.58	64	90	64	80	45	13	M6 ×P1.0×4	-	-
BS50	784	300	0.98	67	125	67	110	70	16	M8 ×P1.25×4	-	-
BS65	1570	340	3.92	90	160	85	140	90	20	M10 ×P1.5×6	-	-
BS75	2450	300	5.88	90	170	85	150	100	20	M10 ×P1.5×6	-	-
BS85	5880	300	7.84	115	210	110	185	115	30	M12 ×P1.75×6	-	-
BS95	7840	250	9.8	115	230	110	200	130	30	M14 ×P2.0×6	-	-
BS110	10800	250	14.7	115	270	110	220	150	30	M16 ×P2.0×6	-	-
BS135	15700	200	19.6	135	320	130	280	180	30	M16 ×P2.0×8	-	-
BS160HS	39200	350	34.3	180	360	175	315	220	40	M20 ×P2.5×10	PT 1/4	0.23
BS200HS	61700	250	44.1	205	430	200	380	260	40	M22 ×P2.5×8	PT 1/4	0.31
BS220HS	102000	200	73.5	330	500	325	420	290	40	M20 ×P2.5×16	PT 1/4	1.3
BS250HS	147000	170	93.1	370	600	365	530	330	50	M24 ×P3.0×16	PT 1/4	1.7
BS270HS	204000	160	98	385	650	380	575	370	50	M24 ×P3.0×16	PT 1/4	2
BS300HS	294000	150	108	425	780	420	690	470	60	M30 ×P3.5×16	PT 1/4	3.6
BS350HS	392000	110	157	440	930	480	815	535	70	M36 ×P4.0×16	PT 1/4	4.1
BS425HS	735000	85	216	570	1030	580	940	635	70	M36 ×P4.0×18	PT 1/4	6.9
BS450HS	980000	80	245	570	1090	600	990	645	80	M42 ×P4.5×18	PT 1/4	7.2

Bore Keyway , Weight
