Home > Products > Lathe > QK1319 China Machining Precision IT6-IT7 CNC Pipe Threading Lathe Machine Manufacturer

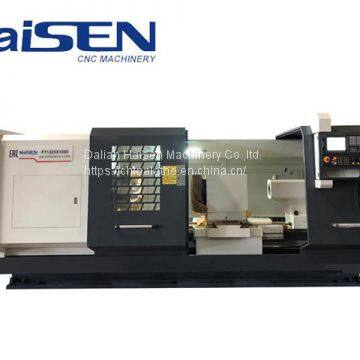

QK1319 China Machining Precision IT6-IT7 CNC Pipe Threading Lathe Machine Manufacturer
USD $33000 - $51600
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Qingdao
- T/T
- 30 days
You May Like
-
CK5116Made in China Exported to UK, Iran, Russia, Brazil, Dubai Numerical Control Half Cover One Column VTL Machine Tool Price
-
MLH850 Vertical Machining Centers
-
CK6150 China CNC Lathe Machines
-
SH325-2 32mm 5 Axis China CE Certificate with Korea Technology Professional Spindle Box Moving CNC Swiss Automatic Lathe
Product Details
| Brand Name | QK1319 Pipe threading CNC Lathe | Place of Origin | China | |
| Model Number | MT5 | Type | Horizontal | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Weight | 4600 | Dimension(L*W*H) | 3700*1755*1800 | |
| Condition | New | Power(W) | 11 | |
| Automatic Grade | Automatic | CNC or Not | CNC | |
| Max. Swing Diameter | 630 |
Product Description
| Item | Unit | QK1313 | QK1319 | QK1322 | QK1327 | QK1330 | QK1335 | QK1343 | |
| CNC System | FANUC 0i Mate TD | ||||||||
| Max swing over bed | mm | 630 | 630 | 670 | 800 | 800 | 1000 | 1000 | |
| Max swing over cross slide | mm | 340 | 340 | 380 | 480 | 480 | 610 | 610 | |
| Distance between centers | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1000/1500 | 1000/1500 | |
| Width of bed | mm | 550 | 550 | 550 | 600/755 | 600/755 | 755 | 755 | |
| Spindle bore | mm | 135 | 200 | 225 | 280 | 305 | 360 | 440 | |
| Power of spindle motor | Kw | 11 | 11 | 11 | 15 | 15 | 22 | 22 | |
| Mode of spindle speed | Two gears variable frequency, | ||||||||
| stepless speed regulation | |||||||||
| Range of spindle speed | r/min | Low:0-130 | Low:25-120 | Low:20-100 | Low:30-130 | Low:23-120 | |||
| High:130-800 | High:100-500 | High:100-300 | High:65-260 | High:65-258 | |||||
| Max X/Z axis travel | mm | X: 350 | X: 350 | X: 350 | X:450/550 | X:450/550 | X:550 | X:550 | |
| Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | Z:1250 | |||
| X/Z rapid traverse | mm/min | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | |
| X-axis motor | Speed | r/min | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Torque | N.m | 10 | 10 | 10 | 15/18 | 15/18 | 18 | 18 | |
| Power | Kw | 1.5 | 1.5 | 1.5 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Speed | r/min | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Z-axis motor | Torque | N.m | 15 | 15 | 15 | 18/22 | 18/22 | 22 | 22 |
| Power | Kw | 2.3 | 2.3 | 2.3 | 3.8 | 3.8 | 3.5 | 3.5 | |
| Tailstock quill | Diameter | mm | 100 | 100 | 100 | 100 | 100 | 140 | 140 |
| Travel | mm | 250 | 250 | 250 | 250/300 | 250/300 | 300 | 300 | |
| Taper | Morse NO.5 | Morse NO.5 | Morse NO.5 | Morse NO.6 | Morse NO.6 | Morse NO.6 | Morse NO.6 | ||
| Electric tool-post | Model | LDB4-6163A | LDB4-6163A | LDB4-6180 | LDB4-6180 | LDB4-6180 | SLD170A04N | SLD170A04N | |
| No. of tool stations | Vertical four-station | ||||||||
| Dimension | mm | 240×240 | 240×240 | 280×280 | 280×280 | 280×280 | 300×300 | 300×300 | |
| Changing tool time | S | 2.6 | 2.6 | 2.6 | 2.6 | 2.6 | 5.6 | 5.6 | |
| Chuck | K11-380 three jaw chuck | K11-500 three jaw chuck | K11-630 three jaw chuck | K66-850 four jaw electric chuck | K66-1000 four jaw electric chuck | ||||
| Positioning accuracy | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | |
| Repositioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | |
| Overall dimensions(L*W*H) | mm | 3657×1755×1880 | 4600×2060/2100×2100 | 5000×2100×2100 | |||||
| Machine weight | T | 4 | 4.2 | 4.6 | 7/9 | 7.5/9.5 | 12 | 13 | |
