Home > Products > Lathe > SH325-2 32mm 5 Axis China CE Certificate with Korea Technology Professional Spindle Box Moving CNC Swiss Automatic Lathe

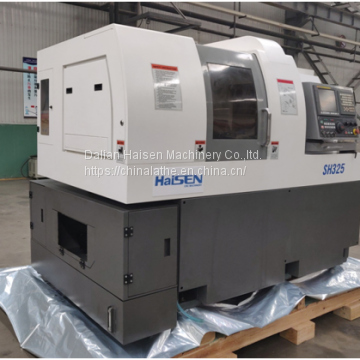

SH325-2 32mm 5 Axis China CE Certificate with Korea Technology Professional Spindle Box Moving CNC Swiss Automatic Lathe
- 10 Set / Sets per Month
- Qingdao
- T/T
- 30 days
You May Like
Product Details
| Brand Name | SH325-2 32mm swiss type CNC lathe China CE Certificate | Place of Origin | China | |
| Type | Horizontal | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 3800 | |
| Dimension(L*W*H) | 2581x1563x1791 | Voltage | depends on customer | |
| Condition | New | Power(W) | 7500 | |
| Automatic Grade | Automatic | CNC or Not | CNC | |
| Max. Swing Diameter | 32 |
Product Description
| tems UnitM205 (FANUC) M205 (SYNTEC) M265 (SYNTEC) M265 (FANUC) SH325 (FANUC) SH325 (SYNTEC) SF385 (FANUC) SF385 (SYNTEC) Mechanics Main spindle RPM rpm 1000060008000600010000600080006000 Main spindle stroke mm 260;260;280280280280220220(without guide bush 50)(without guide bush 50)(with/without guide bush: 218/50)(with/without guide bush: 218/50)//(with/without guide bush: 220/80)(with/without guide bush: 220/80)(with/without guide bush: 185/95)(with/without guide bush: 185/95)Sub Spindle RPM rpm 80006000800060008000600080006000Sub spindle stroke mm 260260//280280220220Max machining diameter mm 2020262632323838Minimum index Degree0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° Motors Spindle motor kw 2.2/3.7 3.73.7/5.55.53.7/5.55.53.7/5.55.5Sub spindle motor kw 1.5/2.2 2.91.5/2.21.31.5/2.2 3.71.5/2.2 3.7Cross driven tools motorkw 0.55/1.1 0.750.55/1.10.40.55/1.1 0.750.55/1.1 0.75Servo axis motor kw 0.750.75/0.7510.7510.75Coolant motor w 0.40.40.90.90.90.90.90.9System CNC control unit FANUC 0i-TD SYNTEC-200TBFANUC 0i-TD SYNTEC-200TBFANUC 0i-TD SYNTEC-200TBFANUC 0i-TD SYNTEC-200TBControl axis/simultaneous axis 7 axis/4 axis7 axis/4 axis7 axis/4 axis7 axis/4 axis7 axis/4 axis7 axis/4 axis7 axis/4 axis7 axis/4 axisMinimum feed unit mm 0.0010.0010.0010.0010.0010.0010.0010.001LCD/MDI LCD 10.4'' LCD 10.4'' LCD 10.4'' LCD 10.4'' LCD 10.4'' LCD 10.4'' LCD 10.4'' LCD 10.4'' Tool O.D tools ea 66666655Front work tools ea 55555555Back work tools ea 44444444Cross driven tools ea 44444444Others Total power kva 1212//14141414 Coolant tank capacity L 180180200200200200200200Lubrication tank capacity L 1.81.81.81.81.81.81.81.8Mass of machine kg 36003600380038003800380045004500 |
Specification of 3/4 Axis Swiss Lathe
|
| ItemsUnitM203 (FANUC)M203 (SYNTEC)SR164 (FANUC)SR164 (SYNTEC)Mechanics Main spindle RPM rpm 10000600080006000Main spindle stroke mm 260260150150Sub spindle RPM rpm //80006000Sub spindle stroke mm //150150Max maching diameter mm 20201616Minimum index degree0.001° 0.001° 0.001° 0.001° Motors Spindle motor kw 2.2/3.7 3.73.7/5.5 3.7Sub Spindle motor kw / / 0.55/1.1 0.4Cross driven tools motorkw 10.750.50.75Servo axis motor kw 0.750.750.750.75Coolant motor w 0.40.40.250.25SystemCNC control unit FANUC Oi-TD SYNTEC-21TBFANUC Oi-TD SYNTEC-21TBMinimum feed unit mm 0.0010.0010.0010.001LCD/MDI LCD 8.4'' LCD 8.4'' LCD 8.4'' LCD 8.4'' Control axis/simultaneous axis 4 axis/ 4 axis4 axis/ 4 axis6 axis/4 axis6 axis/4 axisTool O.D tools ea 666(5) 6(5) Front work tools ea 555(3) 5(3) Back work tools ea / / / / Cross driven tools ea 444(3) 4(3) Others Total power kva 10101010 Coolant tank capacity L 180180180180Lubrication tank capacity L 1.81.81.81.8Mass of machine kg 2800280030003000 |
Features of SH325 China Haisen Korea Technology CE ISO Certificate 3 Axis Processed Dia. 20mm Swiss Type CNC Automatic Lathe
|
| South Korea technology * highlights the characteristics of high precision machine tool *
High rigid wide ribbed reinforcement strengthen lathe bed, further enhance the rigidity and vibration damping, processing without vibration, with smooth and high precision, satisfy strengthening cutting of steel, alloy steel, stainless steel material.
High stability widen the guide span structure, the main/auxiliary shaft's brake locking device after dividing, improve the stability of workpiece machining.
High speed, high precision, high efficiency the optimal tool layout, and high-speed processing control, make the tool change use the shortest time and at the same time get the best location, reduce auxiliary time to the shortest.
High configuration concentrated the advantages parts, multi-axis tool configuration, at the same time with power tools, greatly widened the processing scope, meet the compound machining of complex parts.
Broad machining space making the operation convenient, easy to tool change, the vertical downward tool can get the best chip removal.
High flexible Achieving changing between having guide bush or not , power tools can be optional equipped with quick change type thread whirlwind milling, power head, right angle head (VDI tool), chip removal device, oil mist collector, screw extrusion wheel, high-pressure pump device etc.
|
