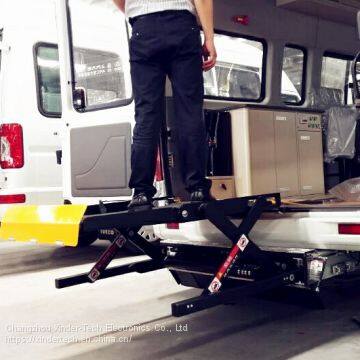

Power Wheelchair Lift for Van Wheelchair Scissor Lift UVL-F-730

FOB Price

USD $3400 - $3600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Introduction

UVL-F Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
It stays out of sight and out of way when not in use, keeping clear path and good visibility for passengers and the driver.
This wheelchair lift is operated by remote control.
After lift extends, you first need to unfold the platform manually, and then continue to operate it by remote control.
This platform can be folded, so the mounting room is smaller than general one.
It can be operated manually for emergency.
This lift has CE certificate.

Advantages

Technical Spercifications

Voltage: 12Vdc / 24Vdc;

Power: 800W;

Loading capacity: 300Kg;

Parameter: mm

Model	platform net width A	platform net length B	max floor height C	overall length D	overall width E	thickness F	door net width G	overlap length H	down stroke I	up stroke J	k
UVL-700-F-730	730	1075	670	1110	1130	130	850	50	200-455	150-215	152
