Product Details
| Brand Name | dongtai | Place of Origin | China | |
| Model Number | cr825 |
packing in wooden box
Product Description
Product Description

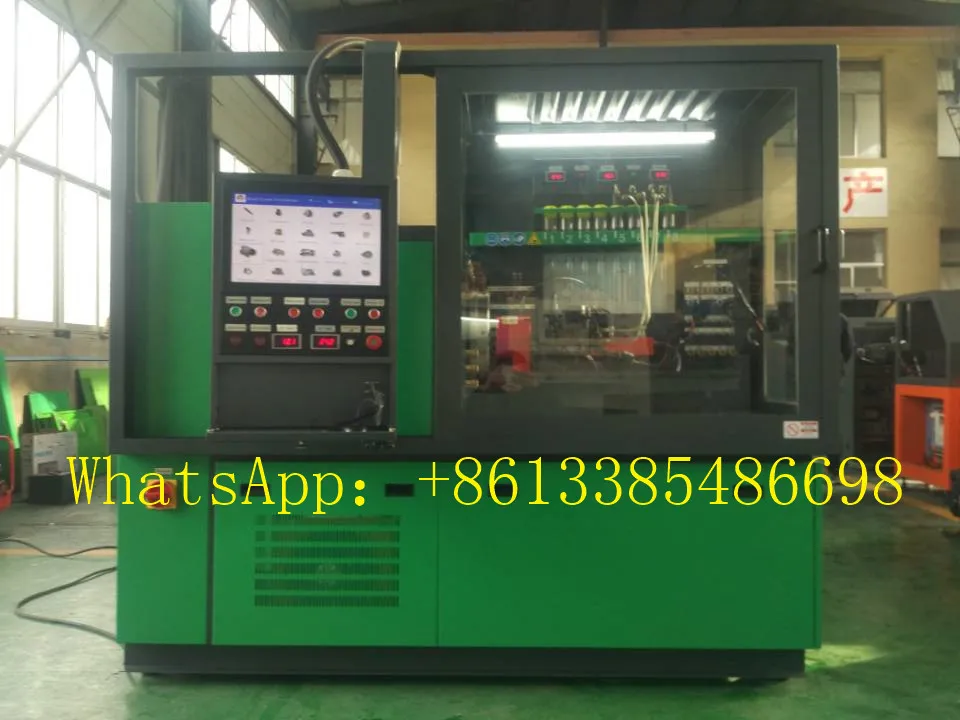

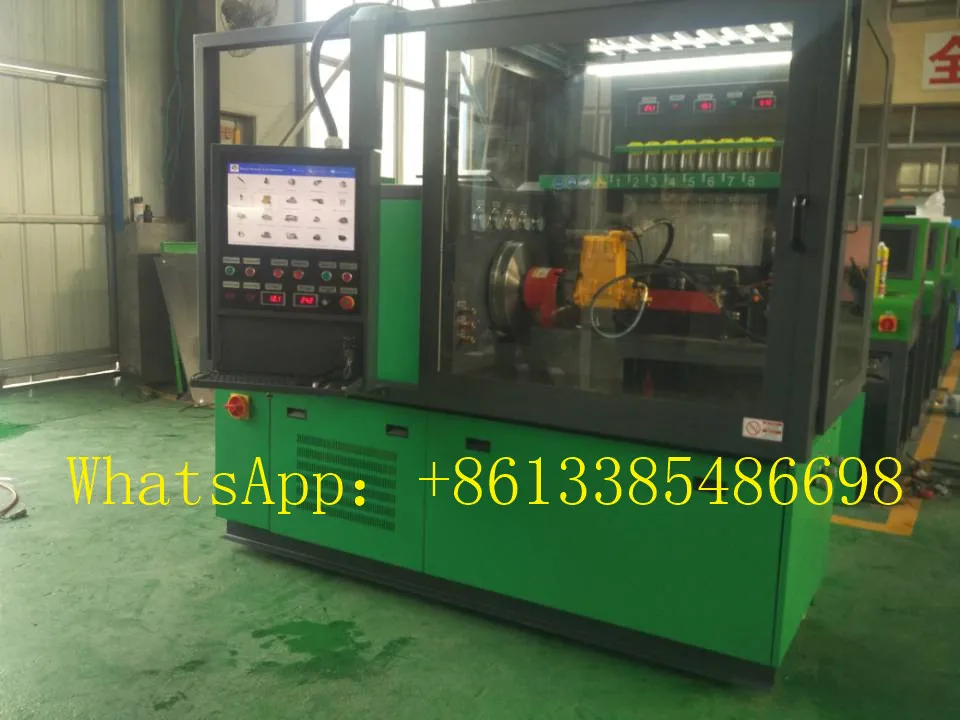

CR825 Multion pump test bench
It have two oil tank,engine oil tank and diesel tank,and have test EUIEUP, HEUI caterpillar pump, common rail injector function.
TECHNICAL PARAMETERS | |||
Main power | 380V AC 220V AC(Optional) | Phase | Three single(optional) |
Frequncy | 50Hz/60Hz | Current | 45A(MAX) |
Mian motor | 22KW | Main motor rotation | 0-4000 RPM/MIN |
Oil motor HP/ Flow | 0.19KW / 13L/MIN | Diesel motor HP /Flow | 0.19KW / 13L/MIN |
Control circuit voltage | DC12V/24V 350W | ECU internal voltage | 0-200V DC(MAX) |
Oil tank volume | 30L | Diesel Tank volume | 52L |
Temperature control | Heating/Forced cooling | Max rail pressure | 180MPa,240MPa(Optional) |
Flowmeter(injection) | 4-550ml/min | Flowmeter(fuel supplying) | 1-400L/H |
Flowmeter(fuel flow back) | 1-400L/H | Flowmeter(Oil) | 5-600L/H |
Center distance between motor and working bench | 125mm | Weight | 1700KG |
Outlook size net | (LXWXH)2250X1260X1920 | Wooden cage | (LXWXH)2350X1500X2100 |
Detailed Images

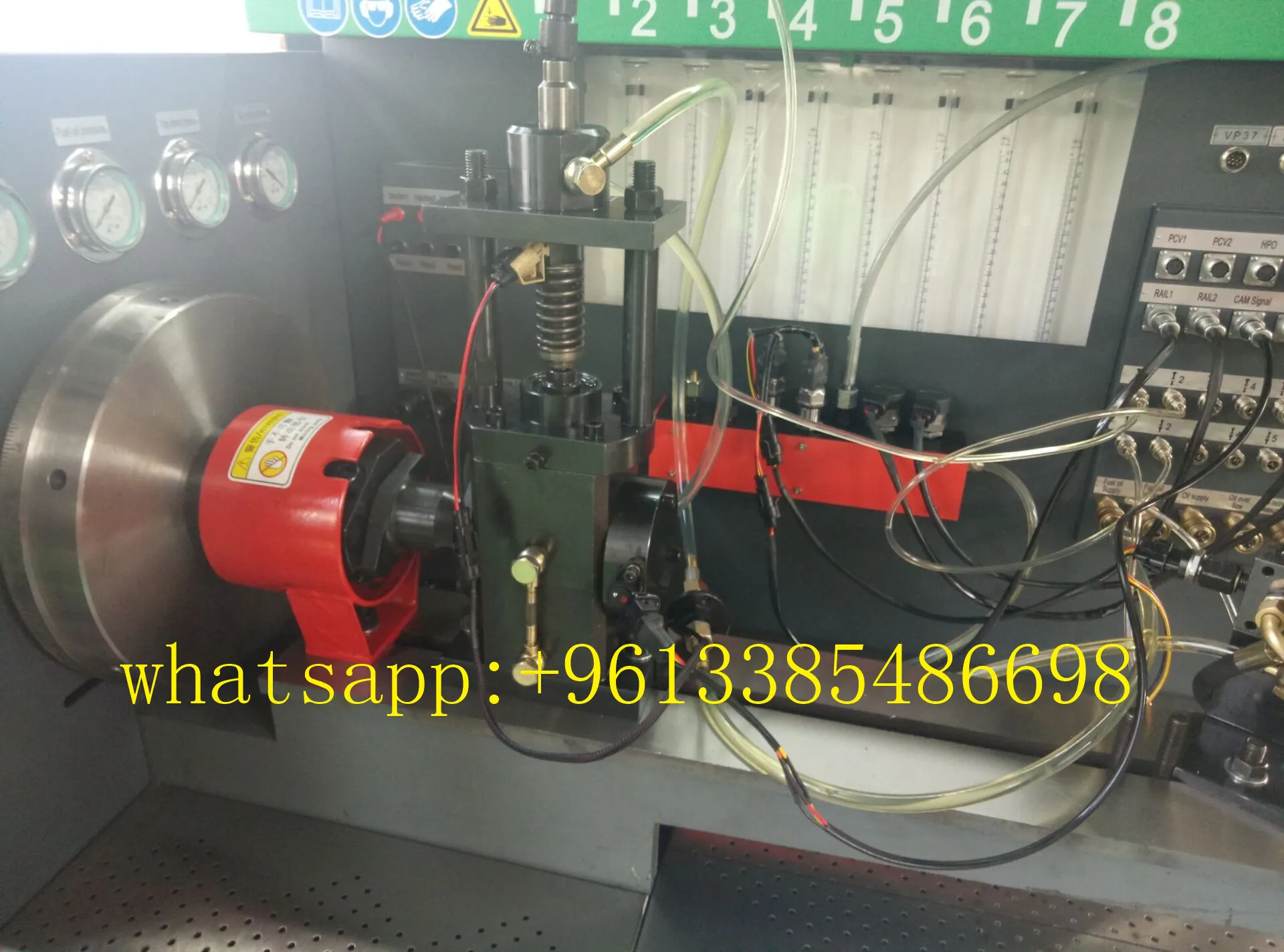

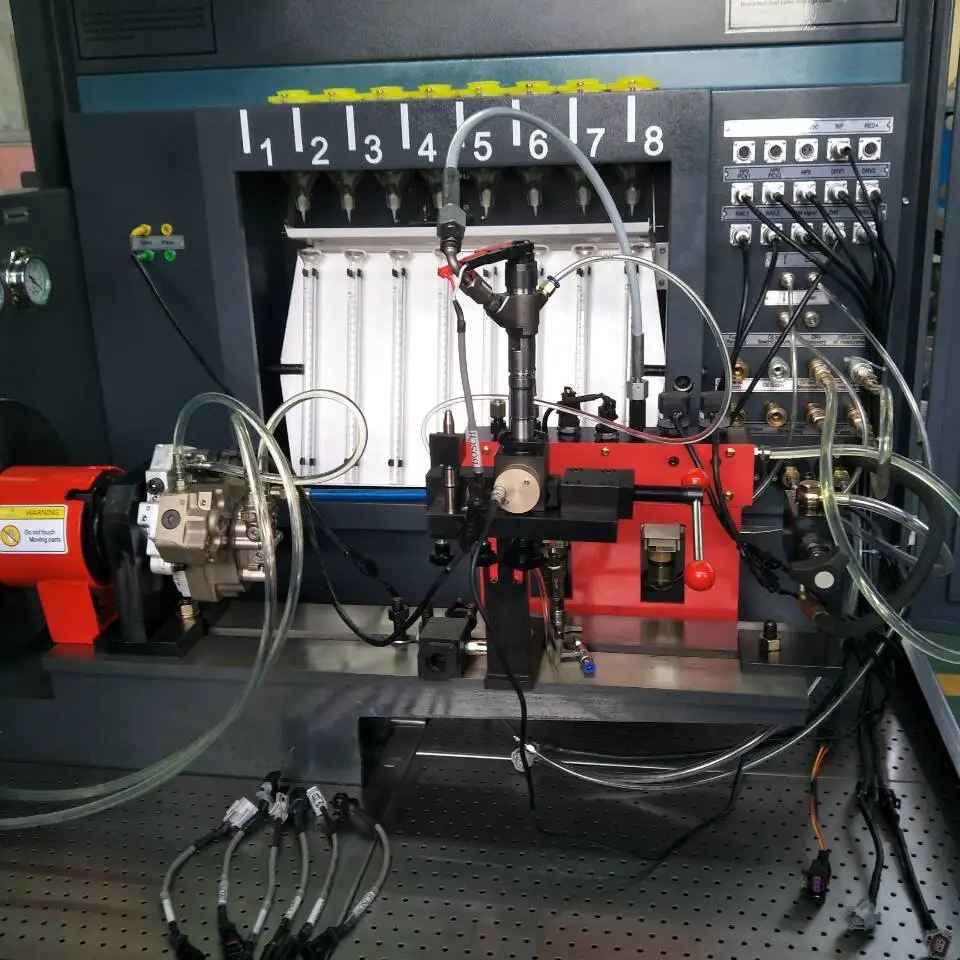

EUI EUP TESTING

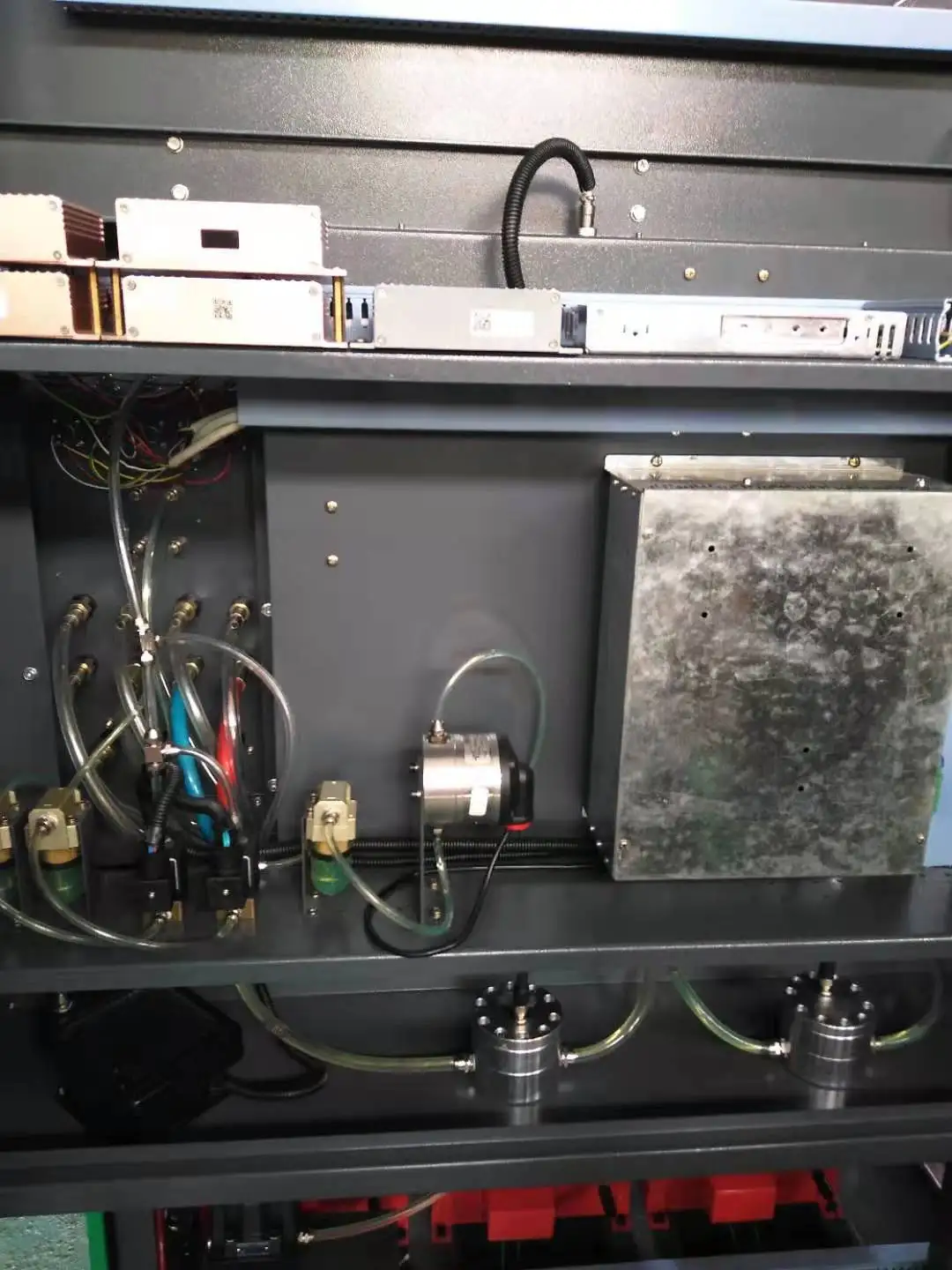

3 Australia flow sensor

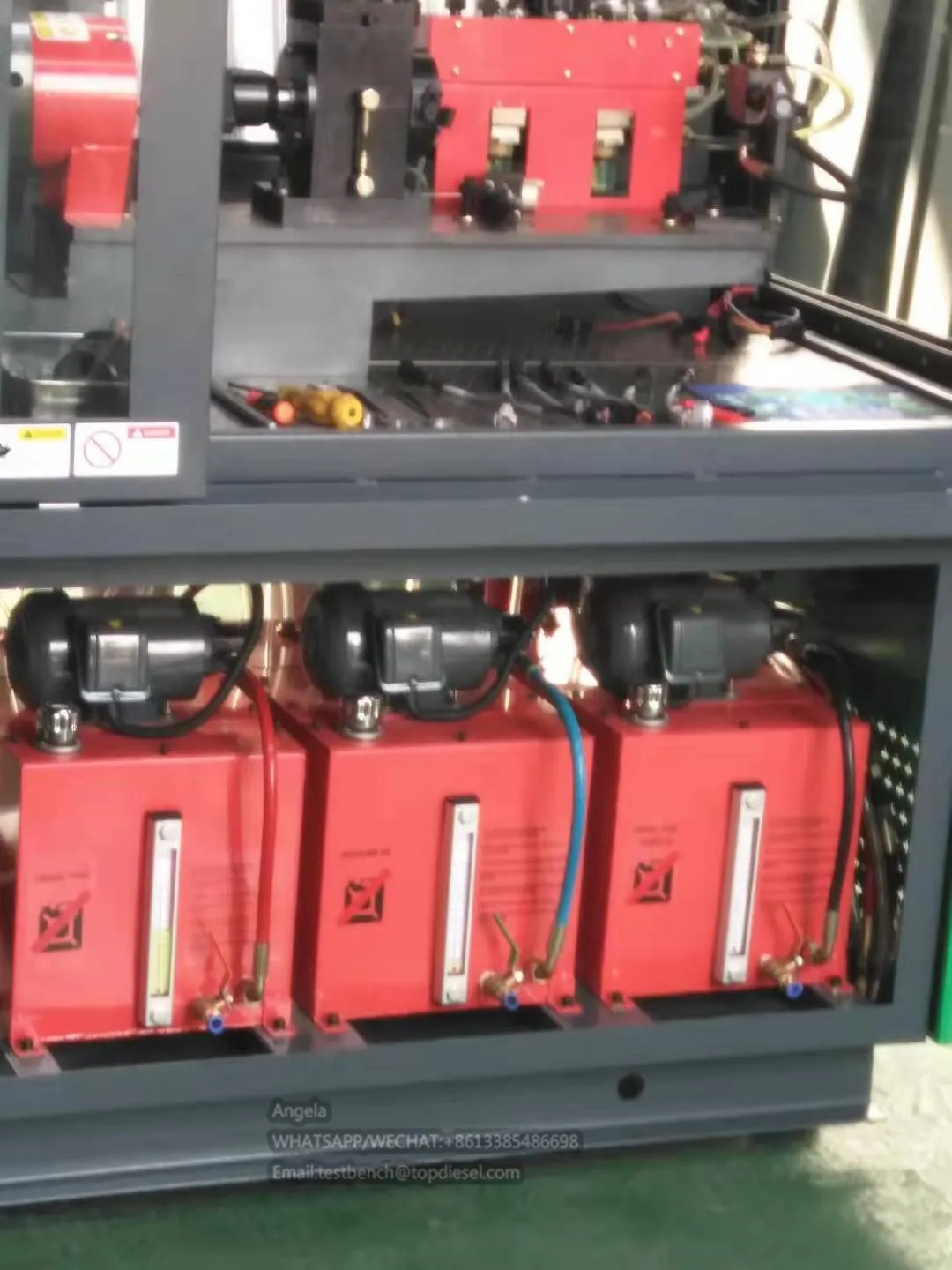

gasoline tank and diesel tank

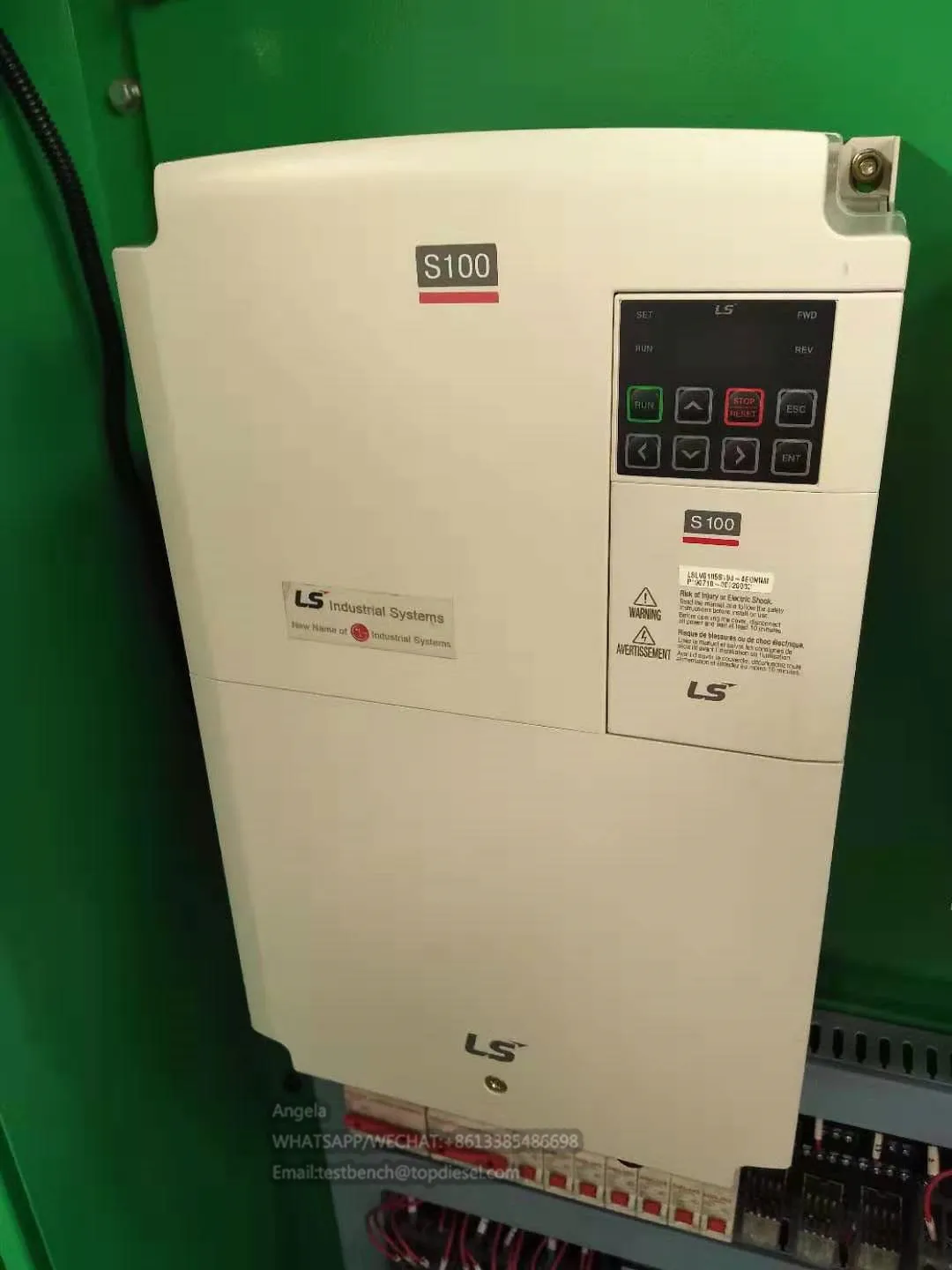

LG frequency converter

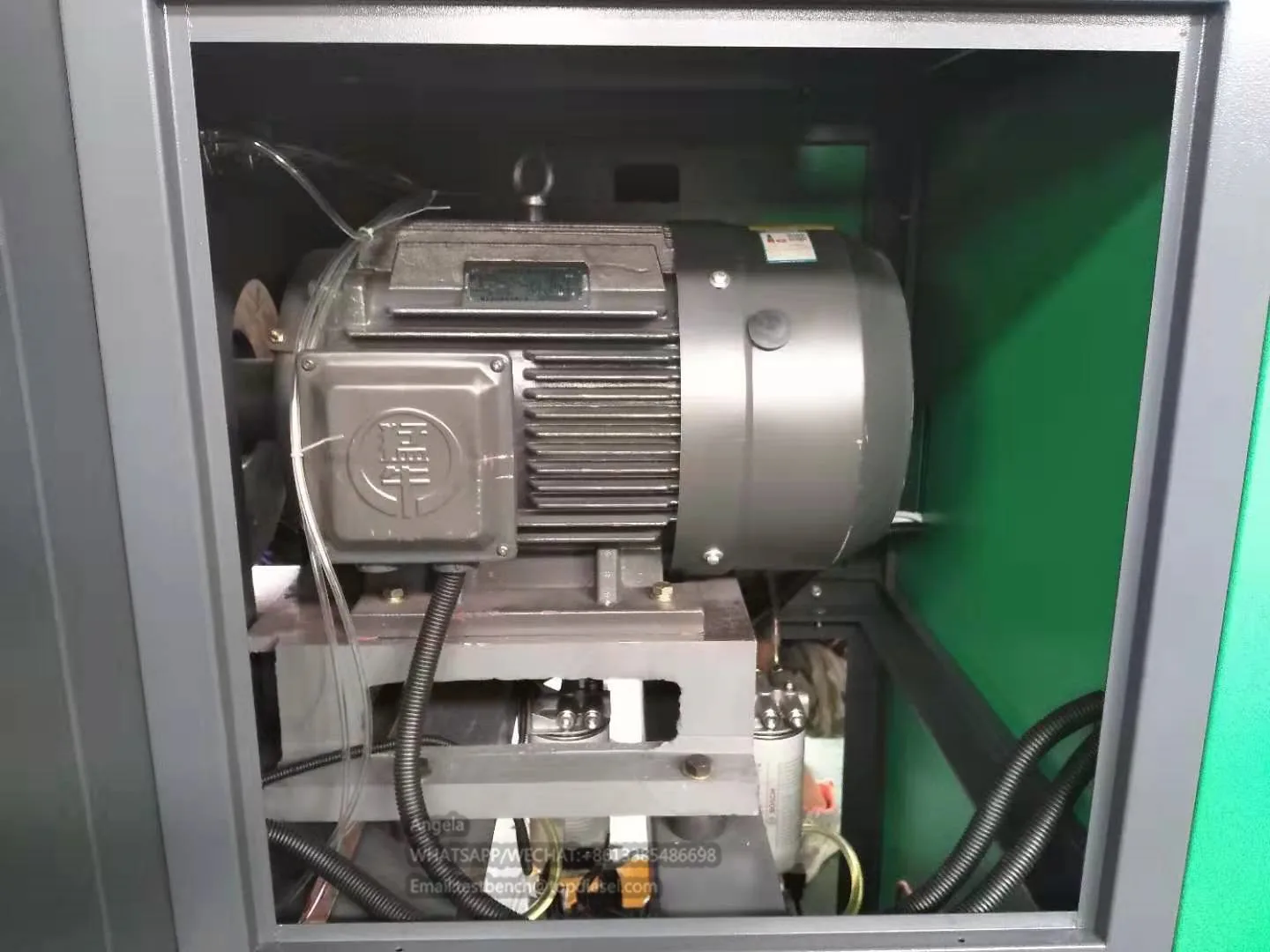

mengniu motor

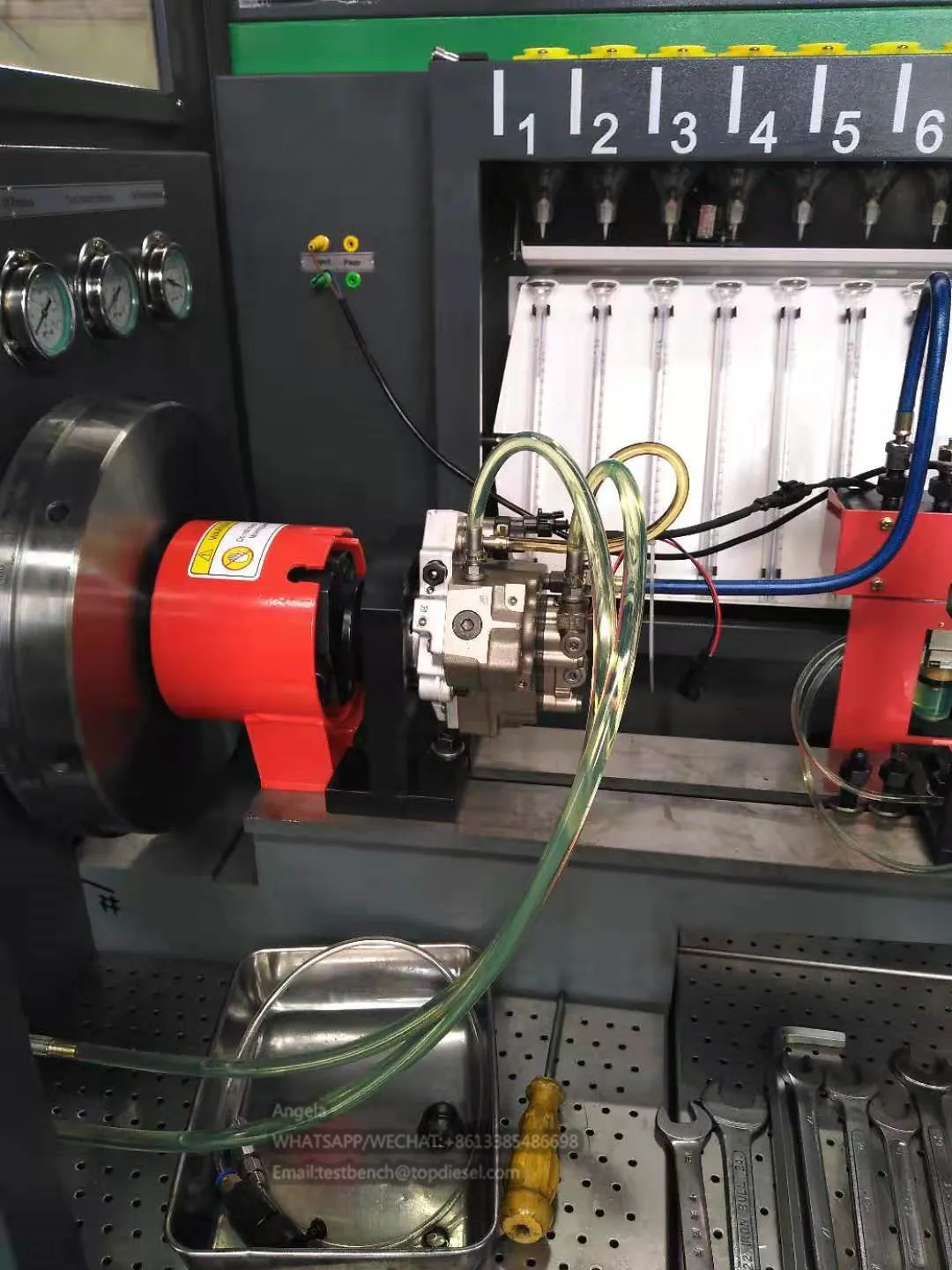

Bosch CP3 new pump
Why Choose Us
TAIAN DONGTAI MACHINERY CO.,LTD
located at the foot of famous Mount Tai,in South High-tech Development Zone of Taian city inShandong Province. It is a research, design, production, maintenance, marketing integration as the production of technology based enterprises. Company relies on technology and development, continue to provide users with high quality products, in the full introduction of foreign advanced technology, developed high pressure common rail test bench, fuel injection pump test bench, tester and related accessories and other new series products, and have been widely used in many fields of automobiles, tractors,ships, railway locomotives, construction machinery, agricultural machinery, and the company's products received the praise from users as first-class product quality and the exquisite technical service!
