Home > Products > Test bench > EUS1000L EUI EUP/HEUI/ Common Rail Injector Test Bench EUS9000
EUS1000L EUI EUP/HEUI/ Common Rail Injector Test Bench EUS9000
US$ 7,000 - 7,500
/ Set
1 Set(Min. Order)
- qingdao
- T/T Credit Card
You May Like
-
Common Rail Pump And Injector Test Bench EUS9000 (HEUI+EUI EUP)
-
Automotive Diagnostic EUS9000 Eui/eup Heui Injector Bip Function Test
-
DONGTAI- EUS9000 HEUI CAMBOX TEST BENCH
-
Common Rail Diesel Fuel Injector Test Bench EUS9000
-
Fuel Injection Test Bench New Model EUS9000
-
EUI/EUP TEST MACHINE, TEST BENCH WITH CAM BOX HEUI EUS9000
Product Details
| Brand Name | dongtai | Place of Origin | China | |
| Model Number | eus9000 |
packing in wooden box
Product Description
Product Description
EUS9000 common rail injector and pump test bench
It have two oil tank,engine oil tank and diesel tank,and have test EUIEUP, HEUI caterpillar pump, common rail injector function.
TECHNICAL PARAMETERS | |||
Main power | 380V AC 220V AC(Optional) | Phase | Three single(optional) |
Frequncy | 50Hz/60Hz | Current | 45A(MAX) |
Mian motor | 22KW | Main motor rotation | 0-4000 RPM/MIN |
Oil motor HP/ Flow | 0.19KW / 13L/MIN | Diesel motor HP /Flow | 0.19KW / 13L/MIN |
Control circuit voltage | DC12V/24V 350W | ECU internal voltage | 0-200V DC(MAX) |
Oil tank volume | 30L | Diesel Tank volume | 52L |
Temperature control | Heating/Forced cooling | Max rail pressure | 180MPa,240MPa(Optional) |
Flowmeter(injection) | 4-550ml/min | Flowmeter(fuel supplying) | 1-400L/H |
Flowmeter(fuel flow back) | 1-400L/H | Flowmeter(Oil) | 5-600L/H |
Center distance between motor and working bench | 125mm | Weight | 1700KG |
Outlook size net | (LXWXH)2250X1260X1920 | Wooden cage | (LXWXH)2350X1500X2100 |

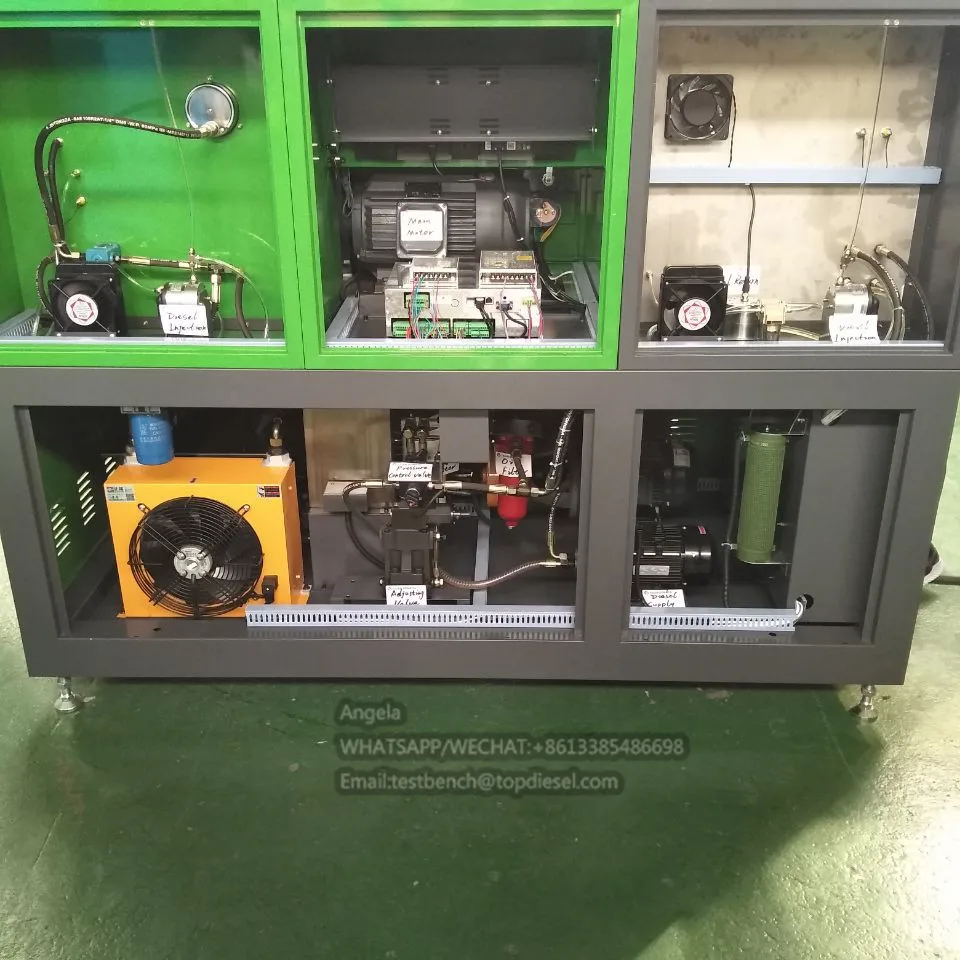

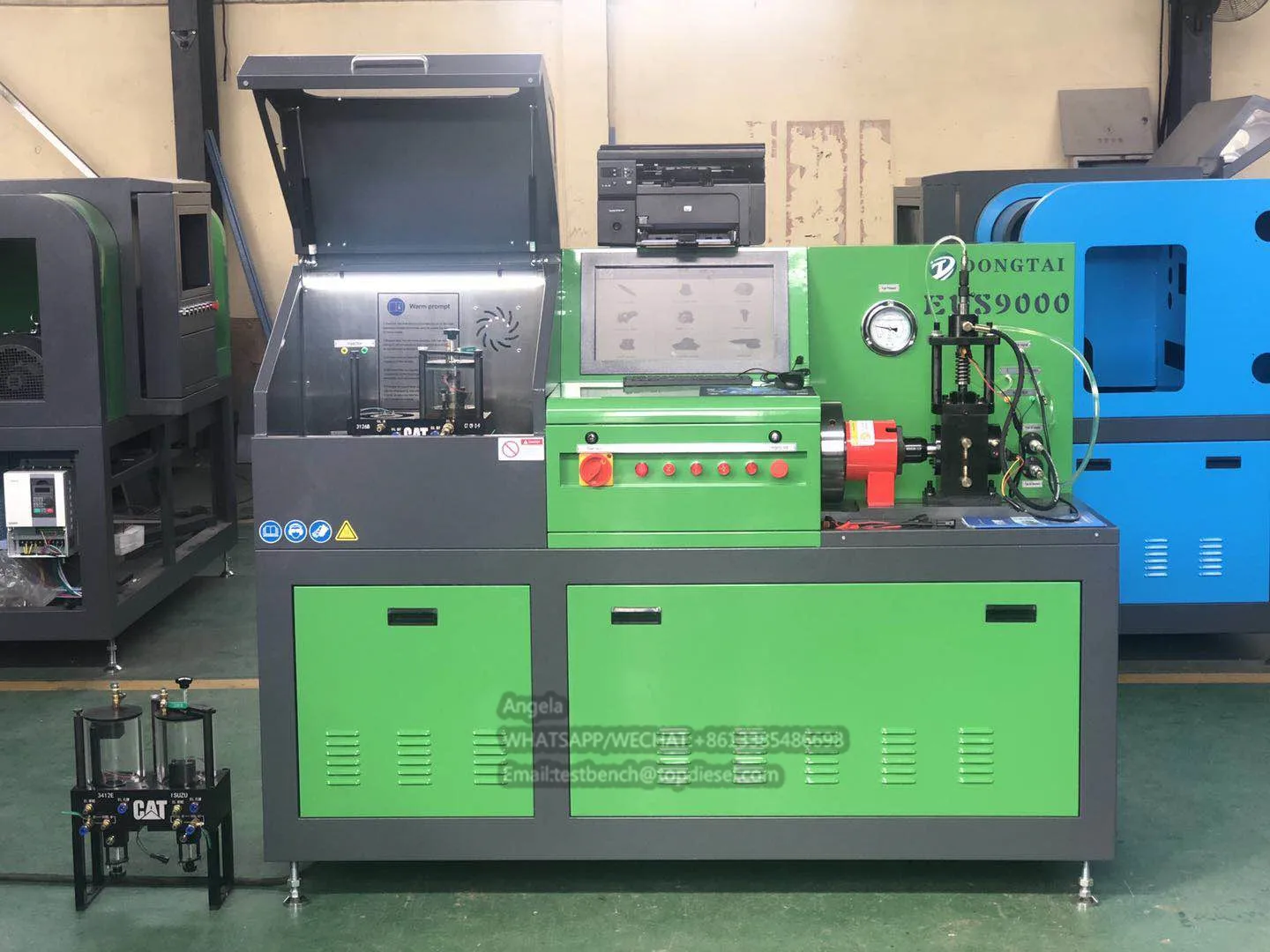

Detailed Images
Why Choose Us
TAIAN Dongtai MACHINERY CO.,LTD located at the foot of famous Mount Tai,in South High-tech Development Zone of Taian city in Shandong Province. It is a research, design, production, maintenance, marketing integration as the production of technology based enterprises. Company relies on technology and development, continue to provide users with high quality products, in the full introduction of foreign advanced technology, developed high pressure common rail test bench, fuel injection pump test bench, tester and related accessories and other new series products, and have been widely used in many fields of automobiles, tractors, ships, railway locomotives, construction machinery, agricultural machinery, and the company's products received the praise from users as first-class product quality and the exquisite technical service.
In the process of development, company adhere to the "Enterprising 、pragmatic、solidarity", constantly Innovation, make technology as the core, regard quality as life, serve customers as god, wholeheartedly provide customers with much better automobile products and meticulous after-sales service.
Company's products sold throughout the country, export more than 20 countries and regions of the world.BETTER MACHINERY, welcome new and old customers !
In the process of development, company adhere to the "Enterprising 、pragmatic、solidarity", constantly Innovation, make technology as the core, regard quality as life, serve customers as god, wholeheartedly provide customers with much better automobile products and meticulous after-sales service.
Company's products sold throughout the country, export more than 20 countries and regions of the world.BETTER MACHINERY, welcome new and old customers !
