Mecc Alte automatic voltage regulator AVR SR7 avr for generator

individual packing and standard export carton

Mecc Alte automatic voltage regulator AVR SR7 avr for generator:

motor automatic voltage regulator SR7

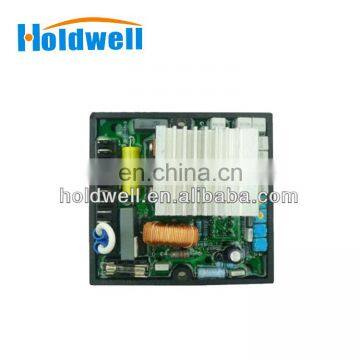

  1.Mecc Alte AVR SR7-2

The SR-7 type voltage regulator is an advanced design electronic 5 Amp regulator that ensures excellent performance of the alternators while they are running and during starting. The regulator is equipped with a complete protection system against operation conditions that could be dangerous for the machine. The SR-7 regulator is suitable for being used with all Mecc Alte alternators and is standard supply for power outputs below 85 KVA, both three-phase and single phase.

2.SR7 Technical specification:

Input: The regulator is equipped with three differential sensing inputs (terminals 1-2, 3-4, 5-6);

Voltage precision: The voltage remains within ±1% of the pre-set value when passing from zero to full load

Protections: The UVR6 regulator is equipped with two protec-tion systems, and when they    intervene the following. a) Delayed protection for overloads (yellow LED).b) Low speed protection (red LED).

Self-excitation: The regulator is equipped with a “starter” device that utilises the residual voltage of the  machine for supply and excitation adjustment.

We can offer products as followed:

 Stamford: SX460,SX440,MX321,MX341,AS480,AS440

 Leroy somer: R220,R230,R250,R438,R450,R448,R449,

 Marathon:SE350,EA350

 Common brushless Avr:8A,12A,15A

brushes :2kw,5kw,3DA,KXT-2WC,ST,STC

Mecc Alte:UVR6,SR7

Maralli :M40FA640A,M16FA655A
