YRTS Series INA Alternatives Rotary Table Bearings Manufacturer YRTS325
- Shanghai/Qingdao
- T/T PayPal Other
- 10 days
You May Like
-
Cheap China YRT Rotary Table Bearings YRTS395 INA Alternatives
-
YRT50 Axial and Radial Cylindrical Roller Bearings 50*126*30mm
-
YRT100 Axial and Radial Rotary Table Bearings 100*185*38mm
-
High Precision YRT200 Axial and Radial Bearings 200*300*45mm
-
Hot Sell YRT Slewing Bearings YRT260 260*385*55mm
-
YRT460 YRT High Precision Axial and Radial Bearings Manufacturers
Product Details
| Brand Name | HONB | Place of Origin | China | |
| Model Number | YRTS325 | Feature | Other, Axial and Radial bearings | |
| Seals Type | No seals | Outside Diameter | 450, 450 | |
| Bore Size | 325, 325 | Gear Options | Nongeared |
Product Description
YRTS high speed bearings Are as same as YRT basic rotary table bearings, designed with two axial Component and a radial component: axial component contains two axial cylinder roller cage assembles, an out ring, a L-section inner ring and A second ring. Axial Preloaded after fitting. Radial component contains a cylinder roller cage assembles, radial preload also added after Fitting. the out ring, L-section inner ring and the second ring have fixing Hole. the unit is located by means of retaining screws for the safety of transport and handling.
the dimension, shape, and Structure of YRTS high speed bearings are as same as YRT basic rotary table bearings. Due to it's Special inner design, this kind of bearing have higher limiting speed and lower and uniform friction torque in the whole speed range. so they can Be applicated to the situation which need lower friction and higher speed. Such as Direct drive shaft, especially for the CNC rotary table structure. (HONBbearing05)
Contact person: Anna Feng
Fax:+86 379 63086177
Whatspp: +86 13598495189
Skype: bearing3_01
Website:

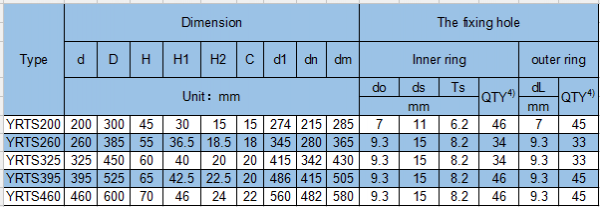

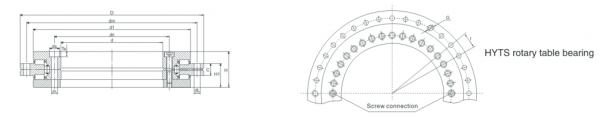

| Type | Dimension | The fixing hole | |||||||||||||
| d | D | H | H1 | H2 | C | d1 | dn | dm | Inner ring | outer ring | |||||
| Unit：mm | do | ds | Ts | QTY4) | dL | QTY4) | |||||||||
| mm | mm | ||||||||||||||
| YRTS325 | 325 | 450 | 60 | 40 | 20 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
| Type | Screw connection QYT | Connect screws holes | pitch1）t | The tightening torque | Basic load rating | Limited speed | weight | ||||
| Axial | Radial | ||||||||||
| Dynamic | Static | Dynamic | Static | ||||||||
| MA2） | Ca | Coa | Cr | Cor | Grease | ||||||
| G | QTY | QTY*t | N m | KN | r/min | ≈Kg | |||||
| YRTS325 | 2 | M12 | 3 | 36*10° | 34 | 191 | 1260 | 108 | 300 | 680 | 25 |
