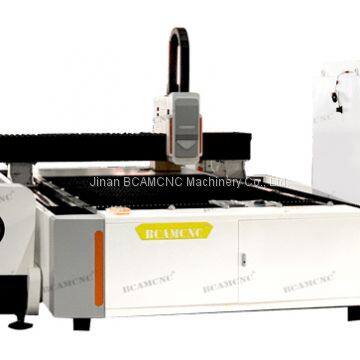

Industrial Fiber Laser Cutting Machine (750W-4000W):

●  Working area: 1500*3000mm

●  Cypcut control system

●  Taiwan PMI ball screw

●  Taiwan ABBA gears and racks

●  Fiber laser generator 750W-4000W Raycus(Optional:Germany IPG Laser 700W-4000W)

●  Serrate working platform table

●  Wifi remote assistance

●  Japan Yaskawa servo motor and drivers

●  Location system:Red dot indicator

●  Au3Tech laser cutting head+Auto focus function

●  Taiwan Hiwin square guide rail

●  Japan NSK Beraring

●  Industrial CW6200 water chiller

●  Heavy duty body frame thickness,more than 4500kg

Specifications:

Working Area:1500*3000mm

Fiber laser generator:750W-4000W Raycus(Optional:Germany IPG Laser 700W-4000W)

Wavelength:1064nm

Cutting speed:0-15m/min(depending on material and thickness)

Positioning accuracy:±0.02mm

Repositioning accuracy:±0.01mm

Eauipment power:16KW/18KW

Water cooling System:Constant temperature water chiller CW62000

Power supply:380V/3P/50Hz

Location system:Red dot indicator

Running Environment Temperature:-10℃~45℃

Machine Dimension:1800*3300*1600mm
