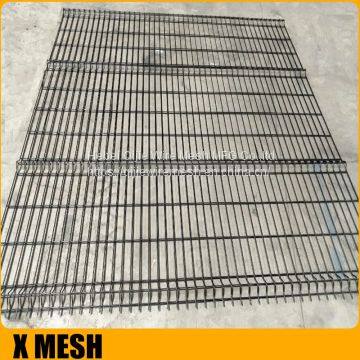

SGS Passed Roll Top Brc Wire Mesh Fence Panels Decorative With Long Time
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
-
6-Ft X 50-Ft 11.5 Gauge Chain Link Fence Fabric Of Galvanized Steel CE Passed
-
Powder Coated 3D Curved Welded Wire Mesh Garden Fence
-
Protection Razor Barbed Wire Concertina Wire Thickness 0.5±0.05 Certification ISO
-
Power Coated 3D Welded Curved Triangle Bending Fence Panel
-
316 304 SS Stainless Steel Woven Wire Mesh , Woven Filter Mesh Long Life
-
Hot Dipped Galvanised Expanded Metal Mesh , Expanded Stainless Steel Mesh Grill For Fencing / Fiji
Product Details
| Brand Name | qijie | Place of Origin | China | |
| Model Number | qijie | Metal Type | Iron | |
| Feature | Easily Assembled, Eco Friendly, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, TFT, Waterproof | Frame Finishing | Powder Coated | |
| Pressure Treated Wood Type | Nature | Frame Material | Metal |
Product Description

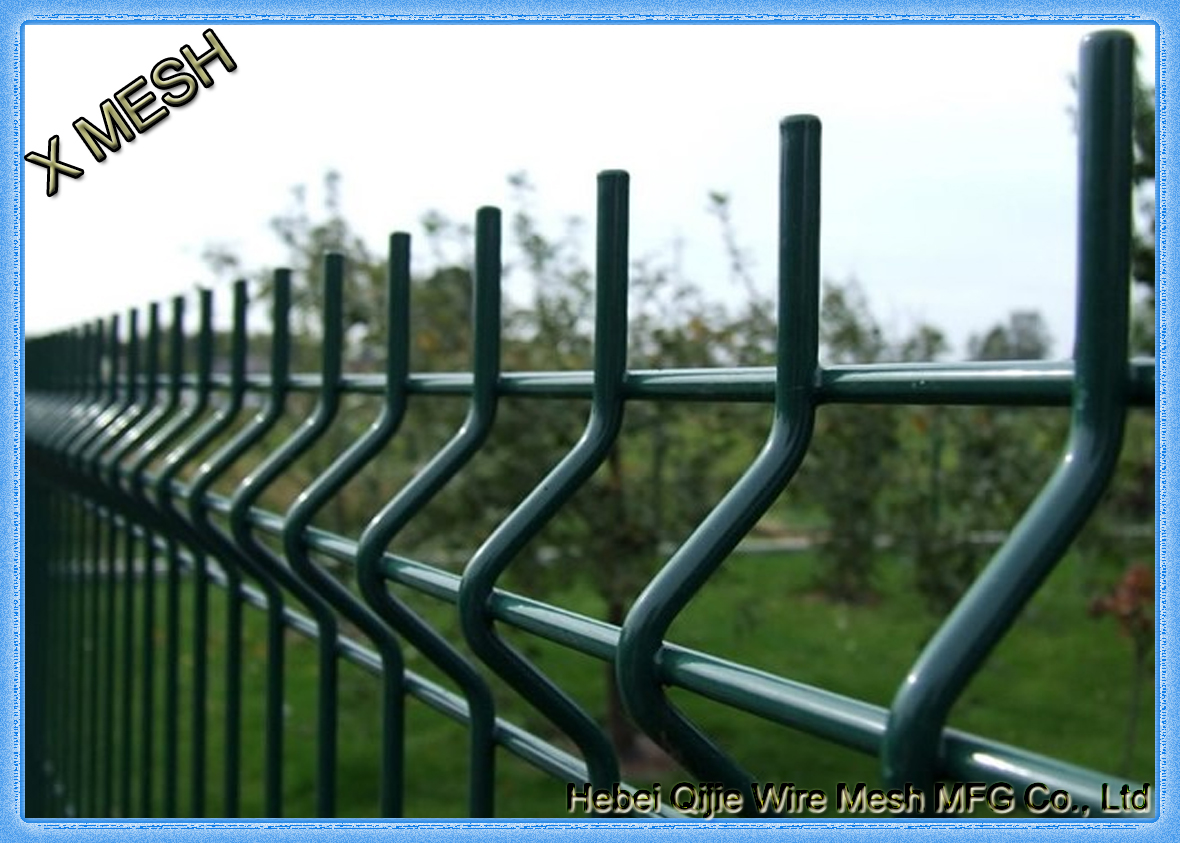

Triangle Bending PVC Coated Steel 3D Curved Wire Fencing For Area Protection
Product descriptions
1.Brief introduction of 3D curved fence
1.The panel is portable, wire size and mesh open can be produced as customer's requests. The ability of resisting the concussion well not be discounted. It is suitable with many kinds of post, it's economy and much more valuable.
2.Material: low carbon steel wire or stainless steel wire
3.Feature:long-distance protections; adjustable safety standards; suitable for difficult grounds and topography; high mechanical performance due to heavy steel structure; European Quality Standards; low cost structure; local construction participation
4.Applications:well suitable for a wide range of applications, such as for enclosing commercial grounds, lawn, road, freight yards, sport fields, airports and public districts

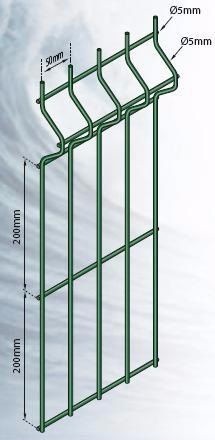

5.Common specifications:
Specifications (H x W): 800, 1000, 1200, 1500, 1600, 1800, 2000 x 3000mm; double layers 2400, 2600 x 2800 x 3000mm
Corner post: 48 x 2.5
Wire dia: 3mm, 4mm,4.5mm,5mm
Hole: 50 x 150mm, 50 x 200mm, 75 x 250mm
High Anti-Corrosion:
Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.
| Surface Treatment | Min. | Max. |
| Electric Gal. | 20/m2 | 60g/m2 |
| Hot dipped Gal. | 35g/m2 | 700g/m2 |
| Powders Sprayed coating | 100 microns | 120 microns |
| PVC/PE dipped coating | 400 microns | 600 microns |
Popular Specification:
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model | |
| Fix Ⅰ | Fix Ⅱ | ||||||
3.5mm 4.0mm 4.5mm 5.0mm | 100*50mm 100*55mm 120*55mm 150*55mm | 2.0m 2.255m 2.5m 3.0m | 800mm | 2 | 1200 | 900 | XLFP-03 |
| 1000mm | 2 | 1400 | 1200 | ||||
| 1200mm | 2 | 1600 | 1400 | ||||
| 1500mm | 3 | 2000 | 1700 | ||||
| 1700mm | 3 | 2200 | 1900 | ||||
| 2000mm | 4 | 2500 | 2200 | ||||
| Wire Dia. | Mesh Size | Panel Width | Panel Height | Fold No. | Post's height | Post Model | |
| Fix Ⅰ | Fix Ⅱ | ||||||
| 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm | 200*50mm 200*55mm 200*60mm 200*65mm | 2.0m 2.255m 2.5m 3.0m | 830mm | 2 | 1200 | 900 | XLFP-04 |
| 1.30mm | 2 | 1400 | 1200 | ||||
| 1230mm | 2 | 1600 | 1400 | ||||
| 1530mm | 3 | 2000 | 1700 | ||||
| 1730mm | 3 | 2200 | 1900 | ||||
| 1830mm | 4 | 2300 | 2000 | ||||
| 2030mm | 4 | 2500 | 2200 | ||||
| 2230mm | 4 | 2700 | 2400 | ||||
| 2530mm | 5 | 3000 | 2600 | ||||
Fix Ⅰ:Buried in the ground. Fix Ⅱ: Installed with bottom base or feet.
Choice of colors:
Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
- Common colors
- Dark Green RAL6005
- Pure White RAL9010
- Stone Grey RAL7030
- Jet Black RAL9005
- Anthracite Grey RAL7016
- Other RAL colors are available
Post install of 3d curved mesh fence:

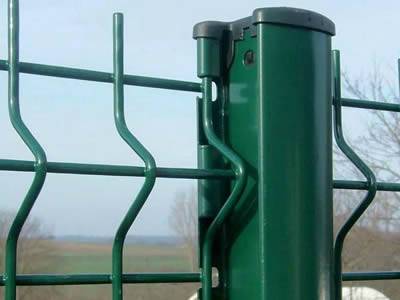

Peach post |

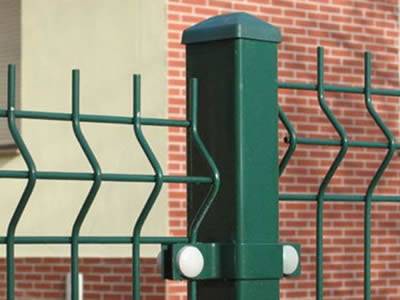

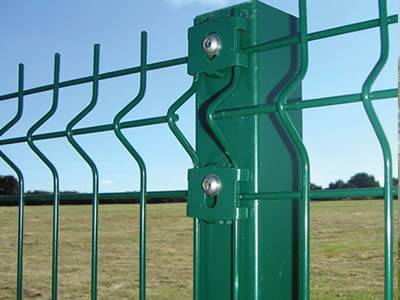

square post |

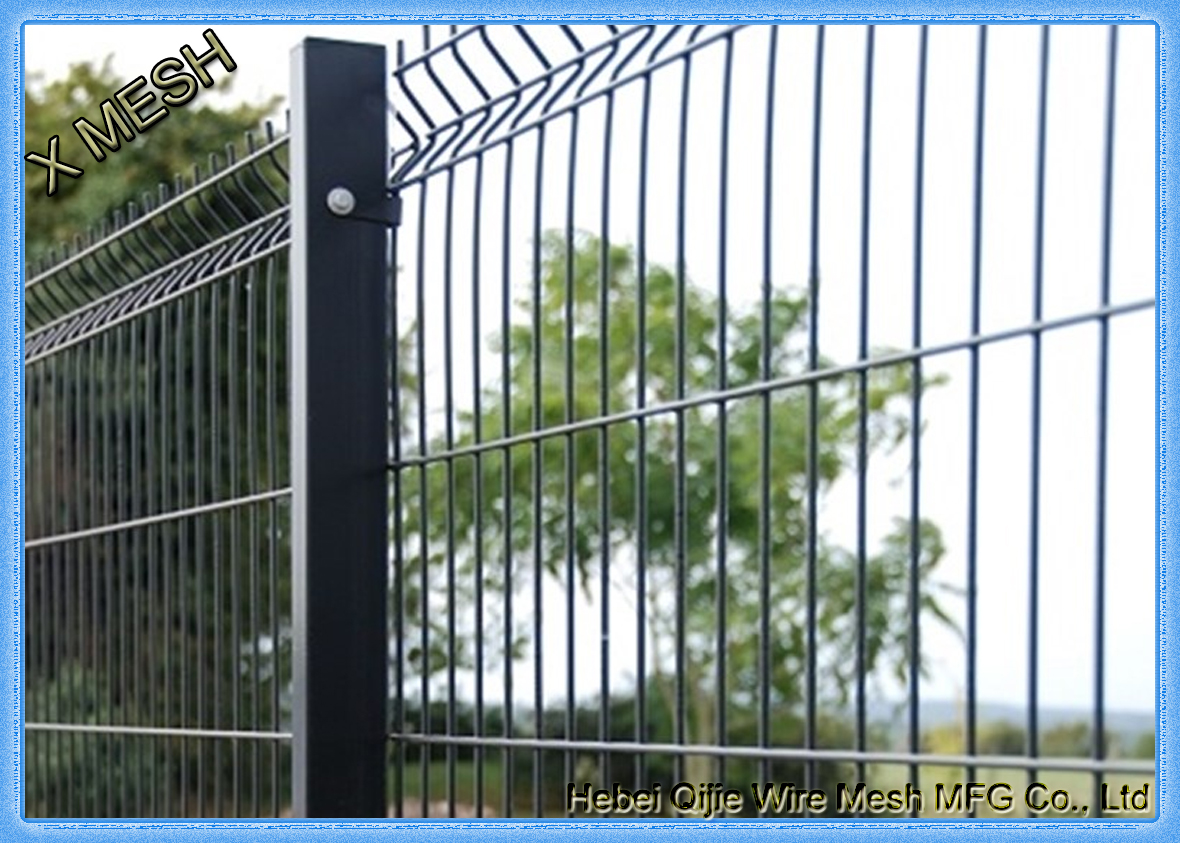

Rectangular post |

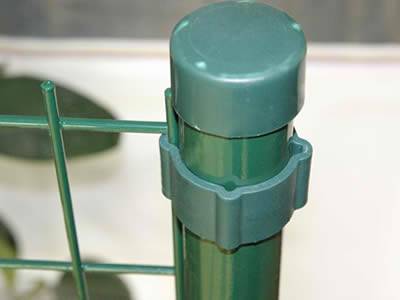

Round Post |
Features of 3D security fence
High strength.
Corrosion and rust resistance.
Weather resistance.
Various colors for choice.
Durable and long service life.
Different installation types.
Can suit different installation environments.
Prevent intruders from entering the unwanted areas.

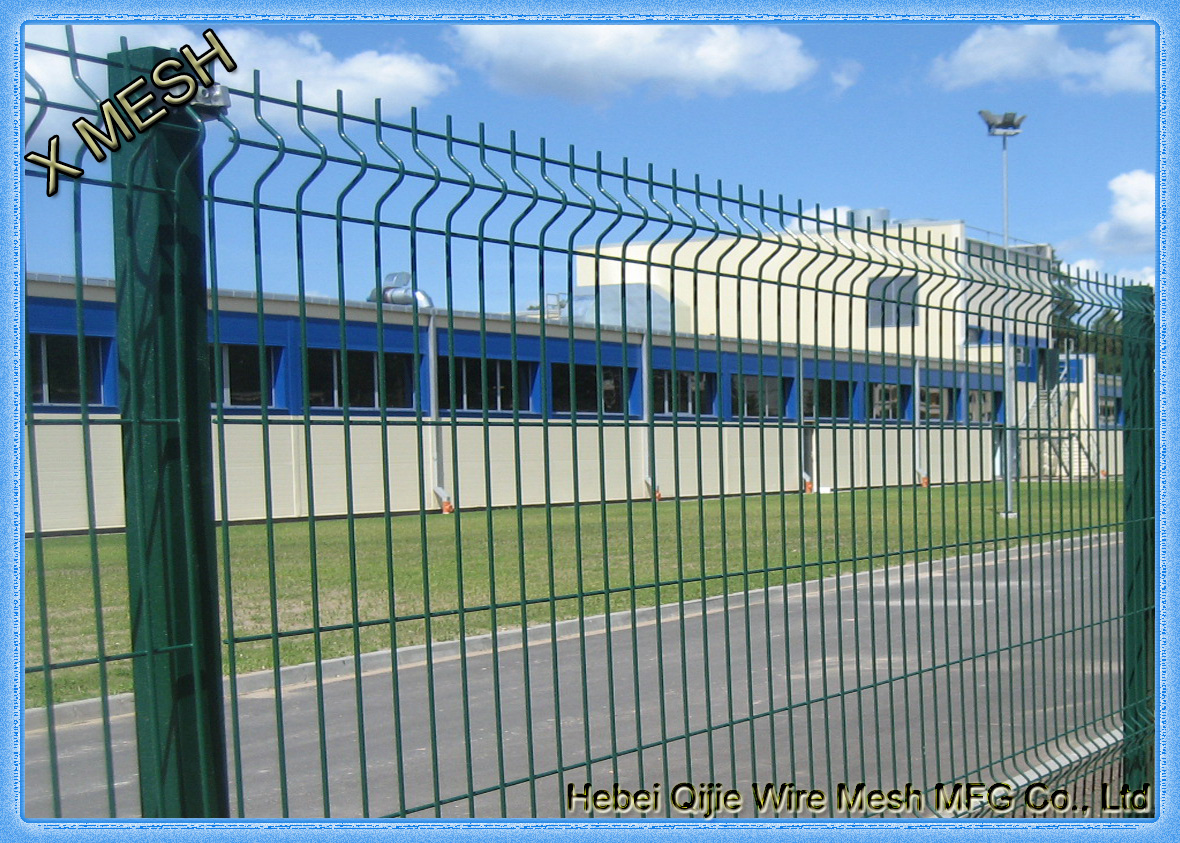

Range of application:
Enclosing:
Road and transit(highway, railway, road, city transit)
Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)
Private grounds(courtyard, villadom)
Public grounds(park, zoo, train or bus station, lawn)
Commercial grounds(corporation, hotel, supermarket)

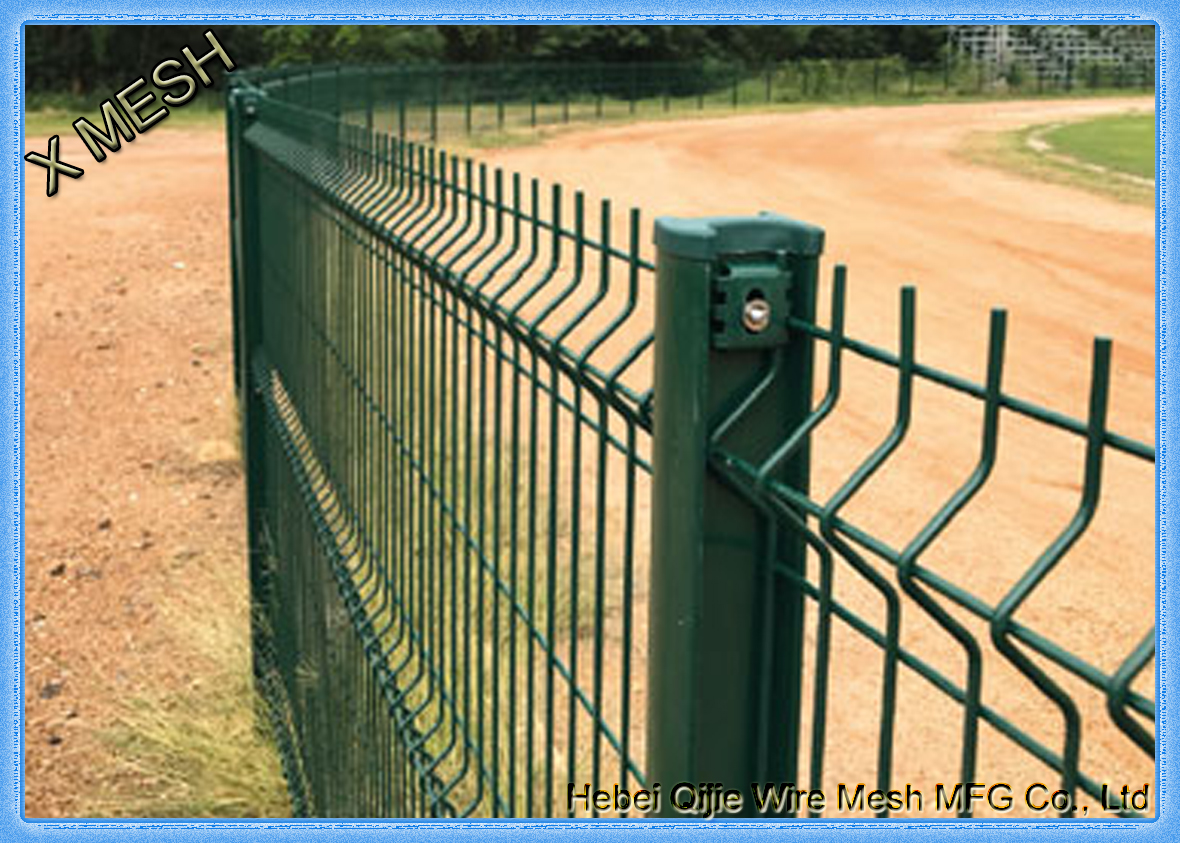

Square Post Power Coated Welded Wire Fence Steel-P0001 |
Peach Post Perimeter Coated Welded Wire Fence Steel-P0002 |
Perimeter Coated Welded Wire Fence Steel-P0003 |
Perimeter Coated Welded Wire Fence Steel-P0004 |
Perimeter Coated Welded Wire Fence Steel-P0005
Perimeter Coated Welded Wire Fence Steel-P0006
