Perkins Diesel Industrial Engine 404D-22T 45.5KW 60HP

Our 400 Series is a proven family of engines designed to give an optimized performance and robust technology for the smaller, compact engine sector. Our industrial engines in the series are a world engine, manufactured on three continents. They’re designed to meet global emissions standards, from unregulated to EU Stage IIIB/U.S. EPA Tier 4 Final. Electric power engines in the series achieve regulated and unregulated emission standards globally.

These Perkins engines are used in many makes and models of industrial and construction equipment.

The Perkins engine is used in many model types: Skidsteers, Excavators, Pumps and other Industrial applications. Original Equipment Manufacturers include: Caterpillar, Case, ASV, Terex, Princeton and others.

Application: Small tractors, air compressors, mini excavators, skid-steer loaders, ride-on mowers, and a wide range of other applications in the agricultural, lawn and garden, construction, and materials handling industries.

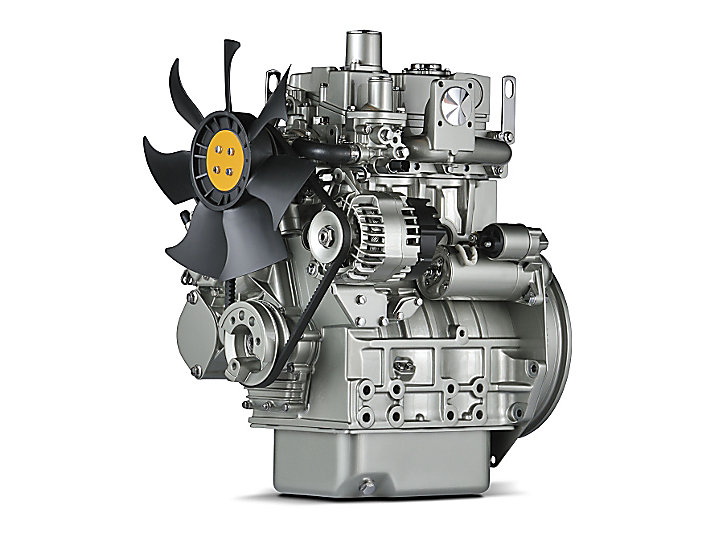

Perkins diesel industrial engine package 404D-22T 45.5KW (photo for reference only)

Features and benefits

Ultra-compact power

• Up to 44.7 kW (59.9 bhp) from an engine envelope of 0.56 m3 (19.8 ft3)

• Easy installation

Clean and quiet

• Noise levels have been kept to a minimum

• Subjective harshness has been carefully controlled making the engine sound even quieter

Durable power

• odPurct design and process improvements enhance both engine reliability and durability

• A new improved (advanced) governor, valve seat inserts, and new compliance testing deliver reliability of 6,000 hours

• A standard two-year warranty demonstrates our confidence in durability and reliability of our engines

Low operating costs

• ovAepdpfor r operation on biodiesel* concentrations of up to 20%

• Oil and filter changes are 500 hours, dependent on load factor

• Engine durability and reliability, the warranty offering, and ease of installation combine to drive down the cost of ownership

• Warranties and Service Contracts

*Subject to conformance with ASTM D6751 and EN14214

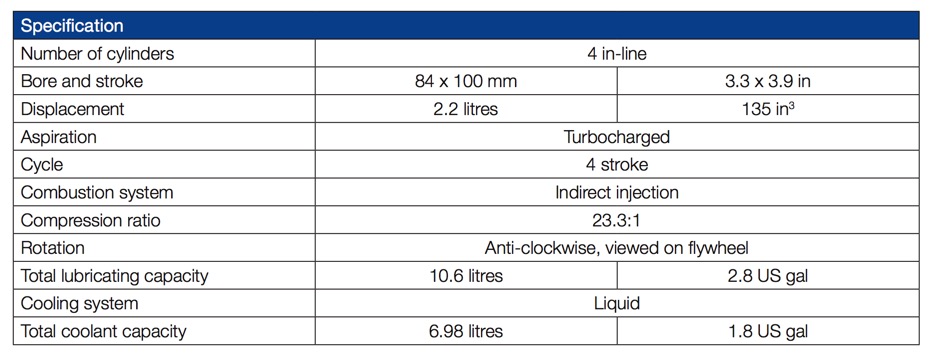

Technical information

• Cast iron engine block

• SAE flywheel size 190.5 mm (7? in)

• SAE 4 flywheel housing

• Fuel injection pump

• Fuel filter

• Glow plug starting aid

• Lub oil sump

• Spin on lub oil filter

• Inlet manifold

• Cast iron exhaust manifold – side outlet

• Coolant pump belt driven

• Mounted radiator and fan

• Mounted air cleaner

• Starter motor 12 volt

• Alternator 12 volt 65 amp

• ESOS (Electric shut-off solenoid)

• Lub oil pressure switch

• Coolant temperature switch

Option groups

A selection of optional items is available to enable you to prepare a specification precisely matched to your needs.

Perkins diesel industrial engine package for other power output

Hiersun Engineers are trained and certified in the latest Power solution knowledge for each market and are able to assist you with engine integration into your specific application. Our engineers and sales representatives will spend time with you to understand your application and provide you with a custom solution to best fit your requirements. Customers benefit from Hiersun Power extensive experience and product knowledge of a variety of markets and can assist you with new product or repower applications.
