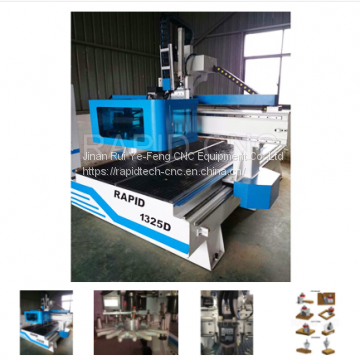

RD-1325 Heavy Duty CNC Router With C Axis 3 axis drilling machine
USD $18200 - $18600
/ Set
1 Set(Min.Order)
- QING DAO
- T/T L/C D/P D/A Other
- 30 days
You May Like
-
RD-1325 Heavy Duty CNC Router With C Axis 3d wood cutting cnc machine
-
Internation standard RD-1325 CNC Router With Ball Screw 3 axis cnc engraving machine
-
Hot sale RD-1325 Heavy Duty CNC Router With C Axis 3 axis cnc machine
-
Hot sale RD-1503-8 4 Axis CNC Router With Rotary Axis 3d carving machine
-
The newest RD-1358 Sofa Making CNC Router 3d cnc carving machine
-
Hot style RD-1350 5 AXIS CNC ROUTER 3d cnc engraving machine
Product Details
| Brand Name | RAPID | Place of Origin | China | |
| Model Number | RD-1325 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 14 months | |
| Condition | New | CNC or Not | CNC |
Product Description
Overview
RD-1325 Heavy duty CNC machine center is perfect for all kinds of solid wood furniture,it can finish drill, cut, carve, hollow out, chamfer, bevelling,etc.
Machine is equipped with C axis and aggregate head, which will allows router bit works from different angle.
Advantage
1. Heavy duty machine structure guarantee solidity and absence of vibration, and machine base have been tempered, which will improve ductility and toughness, machine base not easily deformed, so machine’s processing precision will be highly improved.
2. Machine is equipped with C axis and aggregate head, which will allows router bit works from different angle.
3. The 10 tool rotary carousel allows CNC Router to complete highly complex jobs with multiple tools with no user interaction.
4. 9kw(12HP) large power air cooling spindle is come from Italy HSD company.
The programmable speed can up to 24000RPM, it can cut though 3-4cm solid wood panel by one time.
5. Japanese AC servo motors and drives
The closed-loop control of position, speed and torque is realized, improving precision.
Rotated speed can up to 3000RPM, good high speed performance
Heat and noise significantly reduced
Motor on Z axis has brake system to prevent working table damaged because of spindle falling suddenly
6. Using world-class components, e.g. HSD 9kw ATC spindle, Japan YASKAWA servo motor driving system, Japan SHIMPO gear reducer, Schneider low voltage electrical components, DELTA INVERTER—guaranteeing optimum performance and minimum failure
.
Application
Furniture industry: wooden door, cabinet door, board, office, solid wood furniture.
Other wood products industry: speakers, game consoles cabinet, computer table, sewing machine table, musical instrument, etc.
Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process
Decoration industry: folding screen, wave plate, large wall, advertising board, signs and logo’s processing.
