SA179 Seamless Carbon Steel Extruded Aluminum Fin tubes

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Port Shanghai
Payment TermsT/T L/C PayPal Other
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Minyang	Place of Origin	China
Certification	ROHS	Application	Other, Air Cooled Heat Exchanger, Air Fin Fan Cooler
Type	Fin Tube

Product Description

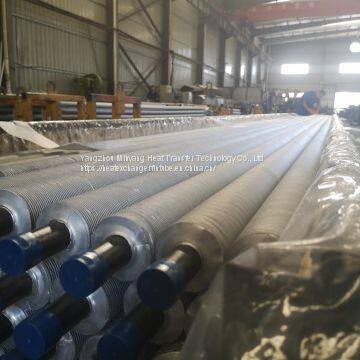

SA179 Seamless Carbon Steel Extruded Aluminum Fin tubes

Detail:

General extrusion production capacity	General specifications of Extruded Fin Tubes
Extrusion Facility: 10 finning machines. Daily capacity up to 3000 meters. Extruded fins type: solid and serrated.	Tube OD: 50.8mm max. Tube Length: 15 meters max. Fin Height: 16.5 mm max. Fin Thickness: appr. 0.4mm Fin Pitch: 2.11mm min.

Manufacturing Process

Extruded Bimetallic Finned Tube is combined with two different materials.A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve.

Fins Type:
The fins are solid plain or serrated into 12,16 or 24 segments or as your design.

Unfinned Section
Both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle.

Surface Coating
Both bare ends of Bimetallic Finned Tubes shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating.

Accessories
Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).

Applications:
The common application fileds are:

Air cooled Heat Exchangers

Fin fan Cooler or Air Fin Cooler

Compressor Coolers

Radiator Coolers

Finned Tube Coolers

Steam turbine exhaust condensing

Fossil and nuclear power plants
