Product Description
Quick Detail:
1.Type name: Multi-jet
2.Model No.: LXSL-15E
3.Standard :ISO 4064 Class B
4.Wet-dial,dry-dial or liquid sealed for option
5.Vertical installation
6.Iron or brass material
Description:

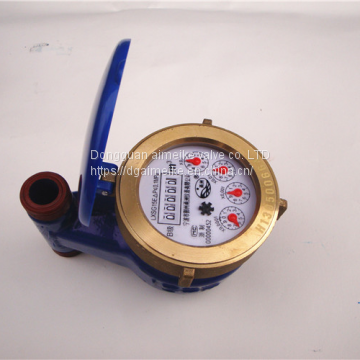

Multi-jet Rotary Vane Wheel Vertical Type Cold Water Meter LXSL-15E
Product features:
Multi-jet ,
Wet-dial ,dry-dial or liquid sealed type for option
Selected high quality materials for steady and reliable characteristic
Installed in vertical pipeline and is suitable for household as branch meter and easy for installation
Universal use and good looking
Installation requirements:
1. Meter should be installed in vertical position with the register face upwards
2. Pipe line must be flushed before installation
3. The meter should be constantly full of water during operation
Main Technical data
Meter Size DN (mm) | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Starting Flow | Min Reading | Max Reading |
m3/h | L/h | m3 | |||||
15 | 3 | 1.5 | 120 | 30 | 8 | 0.0001 | 99999 |
20 | 5 | 2.5 | 200 | 50 | 10 | 0.0001 | 99999 |
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0℃≤t≤50℃ （For cold water meter）
Water pressure: ≤10bar （16bar on request）
Competitive Advantage:
Reasonable price with good quality
Long time guarantee
100% tested
On time delivery
