For Oilfield Anti Corrosion Coatings Oilfield Casing Pipe

Standards Specification Application:
ASTM A53   Mechanical, pressure, steam, water, gas, and air lines
           A106 High Temperature service
           A179 Heat exchanger and condenser tubes
           A192/A210 High pressure boiler tubes and Super-heater tubes

DIN  DIN1629/1630  Construction and general mechanical engineering
        DIN2391  Precision steel tube
        DIN17121  Structural steel work
        DIN17174  Elevated temperature

EN EN10216-1/2  Room &Elevated temperature purpose
      EN10216-4  Low temperature purpose
      EN10305-1  Vehicle furniture and general engineering industries
      EN10305-4  Hydraulic and pneumatic power systems

JIS G3444 General structural purposes
      G3445  Machine Structural purposes
      G3454/5  Pressure service
      G3456/60  Temperature service
      G3461  Boiler and Heat exchange tubes

Outside Diameter:  From NPS 1/8to 48 (DN 6 to DN 1200) as ASME B36.10M

Wall Thickness: From 0.049" to 1.250"(1.24mm to 31.75mm) as ASME B36.10M

Length of Pipe: Single-random lengths of 12 to 22 ft [3.66 to 6.71 m] & Otherwise Specified

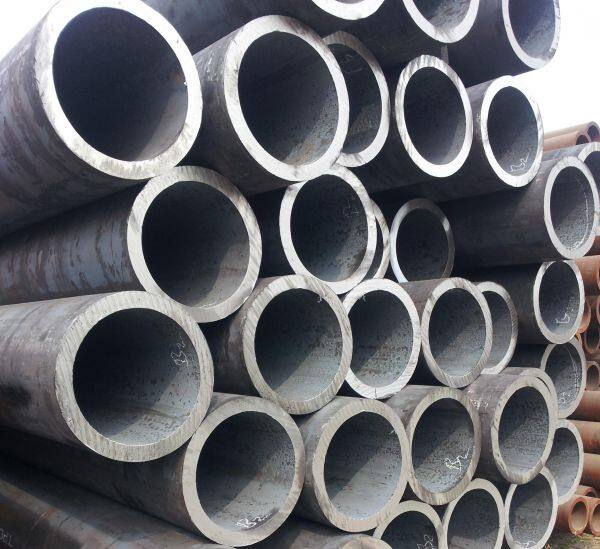

Big OD Seamless Pipes

Big OD seamless pipes, the outside diameter can reach 1067mm

1) Seamless Outside diameter: 20 - 1,067mm
2) Seamless Thickness: 1 - 80mm
3) Manufacturing standard: GB DIN JIS ASTM
4) Bevel or varnish to be confirmed
5) Suitable for high pressure, anti- corrosion (power plant, refinery plant
equipment) and long distance conveyance of gas / fluid
6) Standards: A335 P11 to P91; A213 T11 to T91; API5L GR.B, ASTM A106,
ASTM A53

Stainless Steel Seamless Pipe is a long steel which has hollow section and no seams. It is produced by boring holes on solid steel billets or solid pipe billets, and do Hot-rolling, cold-rolling or cold-drawing later. It is Widely used for the pipings for fluid transfer, such as petrol, natural gas, water, coal gas, steam, etc. In addition, as the weight is light when in the same bending and tensile strength, it's also widely used for manufacturing machinery and construction structural components. Usually etc.

Stainless Steel Seamless Pipes, in accordance with the usage, there are structure use seamless pipe, fluid transfer use seamless pipe, boiler use seamless pipe, boiler use high-pressure seamless pipe, Fertilizer equipment use high pressure seamless pipe, Cold-rolling & Cold-drawing precision seamless pipe.

Galvanized Seamless Pipe

We supply all kinds of galvanized seamless pipe and can serve our customers for designing, processing like hole making, bending, pressing,
cutting, punching, grinding, hot dip galvanizing.

Our hot dip galvanizing plant has ISO-9001 Quality System Certificate and ISO-14001. Environmental Management System and GB/T 28001 occupation health safety management system, thus provides quality assurance, environmental and occupation health for the design process, project and service.

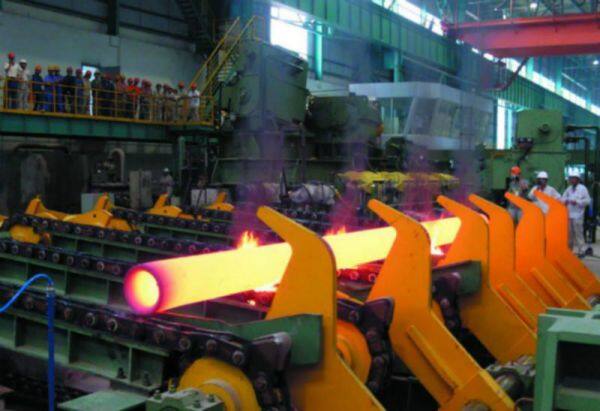

Hot Rolled Seamless pipe
WT: 6-40m
OD: 168-426mm

Cold Rolled Seamless pipe
WT: less 6mm
OD: less 168mm

Hot expanded seamless pipe
WT: 80max
OD: 426-720mm

Length: according to buyer’s request to cut

Standard:
GB/T 3639, GB8162, GB8163, DIN 2391, ASTM A53, A106 DIN 2440 S235, S355;

Galvanized standard: BS 729 , ASTM A153, GaB/T 13912-2002, AS-NZS 4680, etc

Coating:
100-1200g/sqm

Application:
