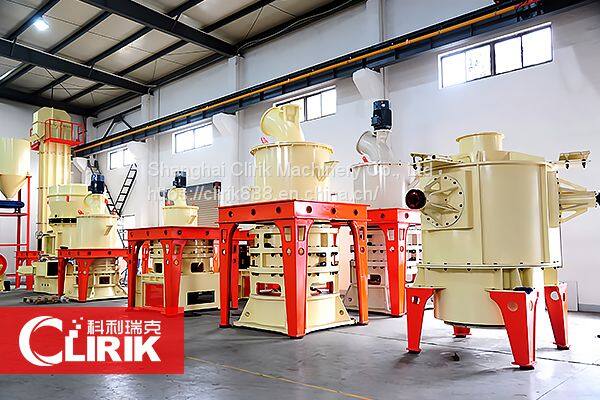

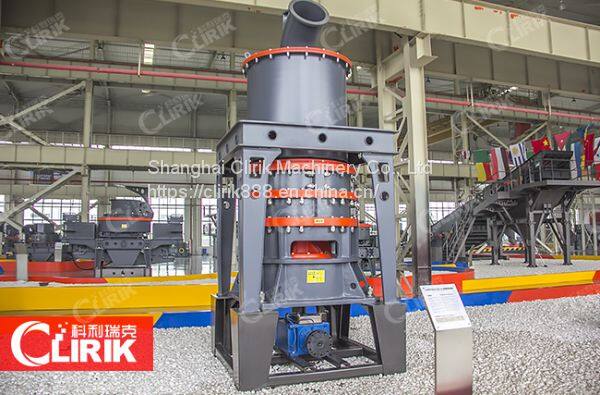

Stone Ultra Fine Grinding Mill

Product Description

Introduction of Stone ultra fine grinding mill

Stone ultra fine grinding mill is a device that breaks solid materials into powder by grinding, Such comminution is an important unit operation in many processes. It is suitable for producing powder in mineral, chemical, building and other industries.

The Handling Materials  of Stone ultra fine grinding mill

Stone ultra fine grinding mill is suitable for grinding of all kinds of materials whose Moh’s hardness is below 9.3, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

Internal structure of Stone ultra fine grinding mill

The standard configuration of Stone ultra fine grinding mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.

working principle of Stone ultra fine grinding mill

1) After crushed by hammer crusher, the large materials become smaller pieces and are sent to the micro powder grinding mill.
2) When the micro powder grinding mill is at work, the granulated materials are crushed and grinded by the rollers into particles below 47micron.
3) The high-pressure air blower constantly inhales air within the micro powder grinding mill.
4) Along with the high speed airflow, micronized materials are brought to the classifier.
5) The qualified particles are screened and driven into the cyclone powder collector, finally exit from the discharging valve at the bottom;
6) A small proportion of the fine powders, with airflow, moving to the dust cleaner. Filtered clean air will be emitted from the air outlet of muffler in the end.

Advantages of Stone ultra fine grinding mill

1.ertical structure, so it has small footprint, strong system.

2.Compared with other mills, Raymond Mill has high passing rate - 99%, which is generally not available for other grinding equipments.

3.The main drive device of Raymond mill adopts airtight gear box and belt pulley, the transmission is stable and the operation is reliable.

4.Important components are made of high quality castings and profiles, ensuring the durability of the whole equipment.

5.The centralized control is used in the electric system, the mill can basically realize unmanned operation, and the maintenance is convenient.

Specifications of Stone ultra fine grinding mill

Company Information

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.

Certification

Customer visit

we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.

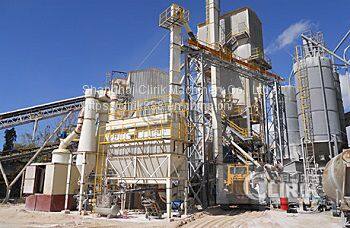

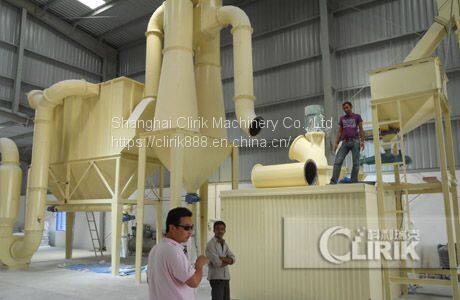

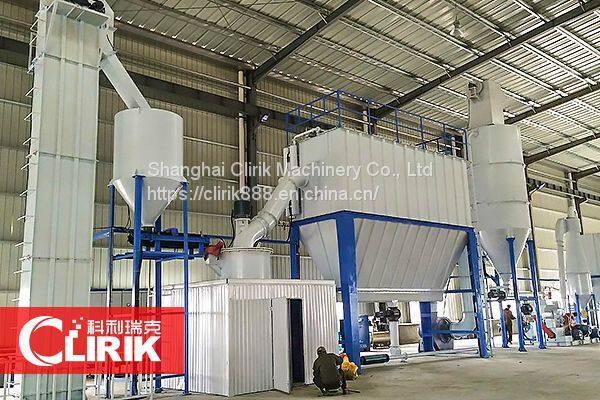

Work Site

We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.

FAQ

Q&A

1. What advantages does your Stone ultra fine grinding mill?
The main advantage of our Stone ultra fine grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your Stone ultra fine grinding mill？

We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.

Inquiry Service
More details we needed for sending you more suitable quotation,
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our micro powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We look forward to your inquiries!
