Wet Mix Concrete Shotcrete Machine
- Qingdao
- T/T L/C Other Cash
You May Like
Product Details
| Brand Name | Gengli | Place of Origin | China | |
| Model Number | GYP-90 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 6 month | Weight | 2300 Kg | |
| Dimension(L*W*H) | L3450*W1550*H1650mm | Voltage | 380V | |
| Certification | ISO9001 | Condition | New | |
| Power(W) | Air and electric | Max Aggregate Size | 15mm | |
| Max. Conveying Distance | 125/50 mm |
Product Description
Application of Gengli machinery wet concrete shotcrete machine
GYP-90 hydraulic wet spraying machine is using the thrust of the hydraulic pump to make the two cylinder reciprocating, the dense flow material will be sent to the mixing pipe by conveying pipe,it becomes thin flow by compressed air ,then through the pipe to the nozzle.Add a certain proportion of the accelerator to the nozzle then spray directly to the surface. GYP-90 hydraulic wet spraying machine is widely used in construction of highway, railway, tunnel and hydropower station etc.
| Specification | |
| Name | Gengli machinery wet concrete shotcrete machine |
| Production Capacity | 3-7m3/h |
| Max.System Pressure | 16Mpa |
| Maximum Aggregate Diameter | 15mm |
| Air pressure | 0.4-0.6MPa |
| Total Weight | 2300kg |
| Overall Dimension(L*W*H) | L3450*W1550*H1650mm |
| Maximum Conveying Distance | 125/50m(Horizontal/Vertical) |
| Ratio of Water Cement | 0.45-0.6 |
| Main Motor Power | 22kw |
| Lubrication System | Manual+Automatic |
| Hydraulic Oil Cooling | Air Cooling |
| Concrete distribution valve | S tube Valve |
| Cylinder Diameter*Stroke | 140*580mm |
| Hopper Capacity | 0.3m3 |
| Concrete Slump | 12-18cm |
| Dust Concentration | <6mg/m3 |
| Feeding Height | 1.1m |
| Fuel Tank Capacity | 145L |
| Rebound Rate | ≦10% |
| Voltage Classes | 380V |
| Inner Diameter of Conveying Pipe | Φ57mm |

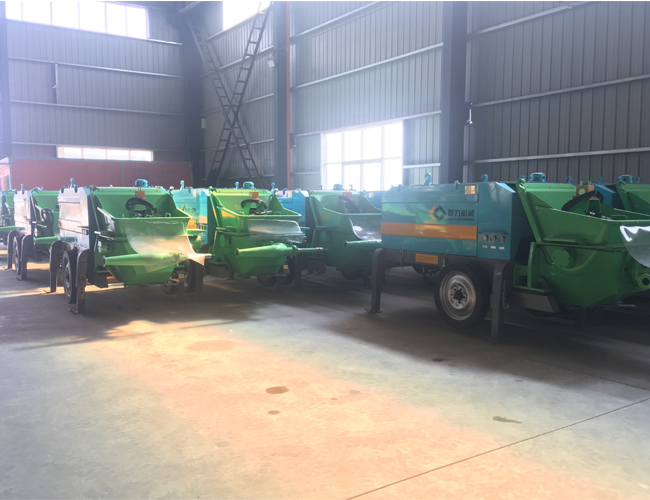

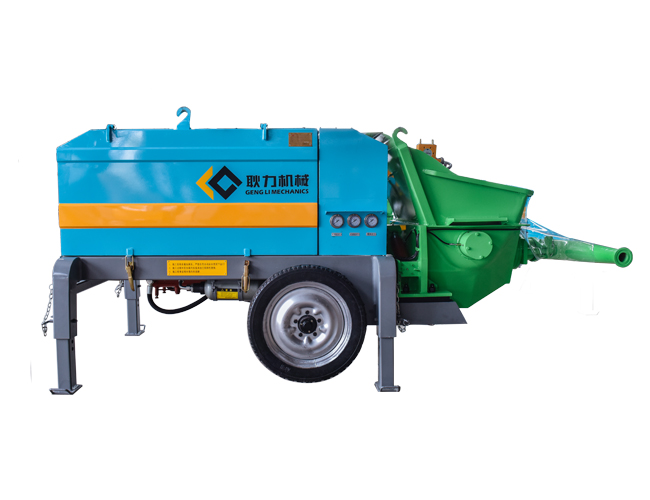

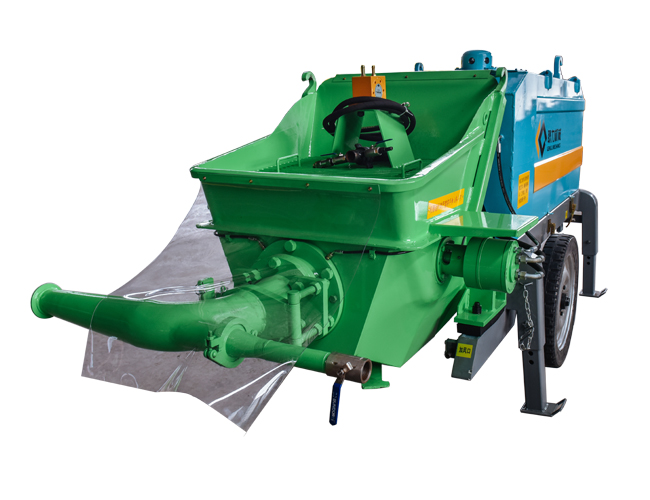

Photos of Gengli machinery wet concrete shotcrete machine
Advantages of Gengli machinery wet concrete shotcrete machine
1. Stable performance, less vulnerable parts and low maintenance cost
2. Advanced pumping system
3. The workload can be adjusted
4. Automatic Lubrication System For Long Service-Life
5. Equipped With Wired Remote Controller, Easy To Operate
Performance Features
1. High work efficiency: adopting hydraulic pumping system with high reliability and stable conveying capacity. It can be used in constructions such as guniting, filling, grouting, pumping etc.
2. Continuous and adjustable spraying: the variable piston pump is adopted as the main oil pump, whose spraying speed can be adjusted freely (the maximum regulating variable switchover times is no more than 16 times/ min).
3. Continuous and adjustable feeding for the accelerating agent: it can be adjusted infinitely according to the spraying amount.
4. Long service-life quick-wear parts: the service-life of the quick-wear parts for the machine is not less than 4000M3.
5. The self-lubricating system: the main sealing parts adopt automatic lubrication, grease filling amount and filling time can be controlled automatically, which greatly prolongs the service life of the quick-wear parts.
6. Humanized design: adopting the drive-by-wire handle, easy for operation.

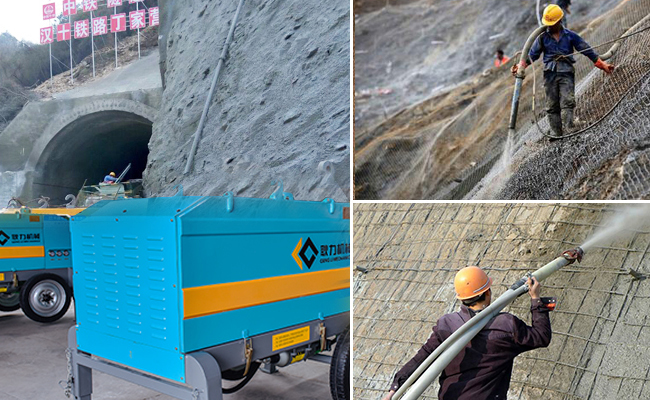

Photo at the working site
FAQ
1. Which model is suitable for us ?
We're a manufacturer. All kinds of models are available.Before recommend suitable model, please tell us the application, materials, working capacity , your working condition , etc.
2. How do I operate the machine ?
Please read the Operation Instruction for basic technical skills.If necessary, we provide online and onsite technical training.
3. What should I do if there is problem with the machine?
Firsly, please refer to the Operation Instruction
Secondly, please call us at any time
Thirdly, engineers are available for overseas service
4. How long the handling time ?
If there are models in stock, the warehouse will arrange delivery within 3-5 days
If no stock, normally the handling time is 2 weeks but also according to the quantity you need
5.How about package ?
Normally use wooden box or wooden frame. Your other demands are accepted
6.Payment
In general, 30%T/T prepayment before production, 70% T/T balance payment against copy of B/L
L/C is also accepted
