TPS79618DCQR

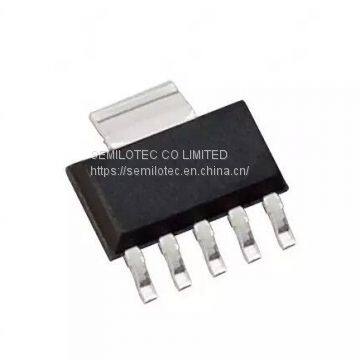

TPS79618DCQR: LDO Regulator Pos 1.8V 1A 6-Pin(5+Tab) SOT-223 T/R

Package: SOT-223-6

Mfr. Part#: TPS79618DCQR

Mfr.: TI

ROHS PB FREE

Quality: 100% Original

Warranty: 180 days

The TPS796 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 VSON, SOT223-6, and TO-263 packages. Each device in the family is stable with a small, 1-μF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 250 mV at 1 A). Each device achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (265 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS79630 exhibits approximately 40 μV_RMS of output voltage noise at 3.0-V output, with a 0.1-μF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and need fast response time.

• 1-A Low-Dropout Regulator With Enable

• Available in Fixed and Adjustable (1.2 V to 5.5 V)
  Versions

• High PSRR (53 dB at 10 kHz)

• Ultralow-Noise (40 μV_RMS, TPS79630)

• Fast Start-Up Time (50 μs)

• Stable With a 1-μF Ceramic Capacitor

• Excellent Load and Line Transient Response

• Very Low Dropout Voltage (250 mV at Full Load,
  TPS79630)

• 3 × 3 VSON PowerPAD?, SOT223-6, and
  TO-263 Packages
