Home > Products > common rail test bench > CR815 common rail test bench CR tester cr815/a common-rail test bench Test Bench/machine

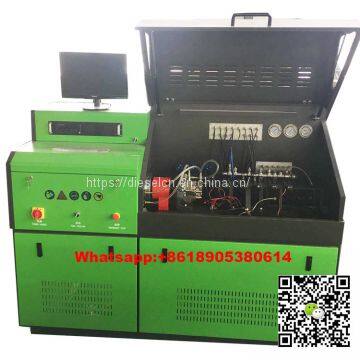

CR815 common rail test bench CR tester cr815/a common-rail test bench Test Bench/machine
- 999 Set / Sets per Month
- Qingdao port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 10 days
You May Like
-
common rail injector and pump test eps 708 common rail test bench CR815
-
CR815 EUI/EUP CAM BOX COMMON RAIL TEST BENCH
-
NTS300 XNS300 common rail injector test bench
-
Computer system Common rail injector test bench XNS300 NTS300
-
Auto injector Testing Machine,common rail diesel injector test bench NTS300
-
Auto injector Testing Machine,common rail diesel injector test bench NTS709
Product Details
| Model Number | CR815 | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
Selling Units: Single item
Single package size: 215X110X170 cm
Single gross weight: 750.0 kg
Package Type: Export standard packing
Lead Time :
Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.
professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
Specialized test bench for Common Rail testing:
Common Rail System:
CP1, CP2,CP3, CP Delphi / Denso / Siemens,
Solenoid valve CRI Bosch / Delphi / Denso
Solenoid valve CRIN Bosch
Piezo CRI Bosch / Siemens / Denso( On request)
With test data and test plan.
It also can test 6 common rail injectors in one time.
EUI / EUP testing function.
HEUI testing function .
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
2.Test HP0 pump function.
3. DRV testing
4.Checking the oil pump flow.
6.Forced cooling
7.HEUI TESTING
8.EUI EUP TESTING
Optional Function >>>
Forced cooling
CR708 Diesel Fuel Injection Pump Test Bench application:
professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
CR3000A/CR708 Common Rail Test Bench Technical Parameters
1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW
2. Electronic power: 3 PHASE 380V or 3 PHASE 220V
3. Motor speed: 0-4000RPM
4. Presure adjustment: 0-2000bar
5. Flow testing range: 0-600ml/1000times
6.Flow measurement accuracy:0.1ml
7. Temperature range: 40+-2
8. Cooling system: fan or forced cooling
CR3000A/CR708 Common Rail Test Bench Function
1.Test piezo injector function and Electromagnetic injectors
2.Test HP0 pump function.
3. DRV testing
4.Checking the oil pump flow.
Optional Function
1).Forced cooling
2) HEUI TESTING
3)EUI EUP TESTING
