Home > Products > CNC Shearing Machine > SJL Brand CNC Hydraulic Shears QC11K-4x1600 Shearing Machine

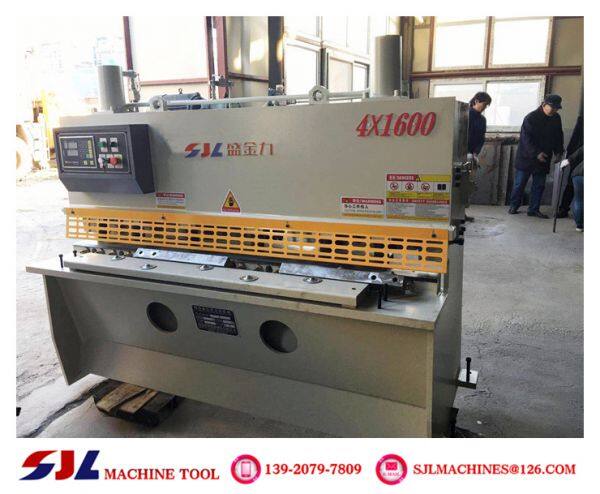

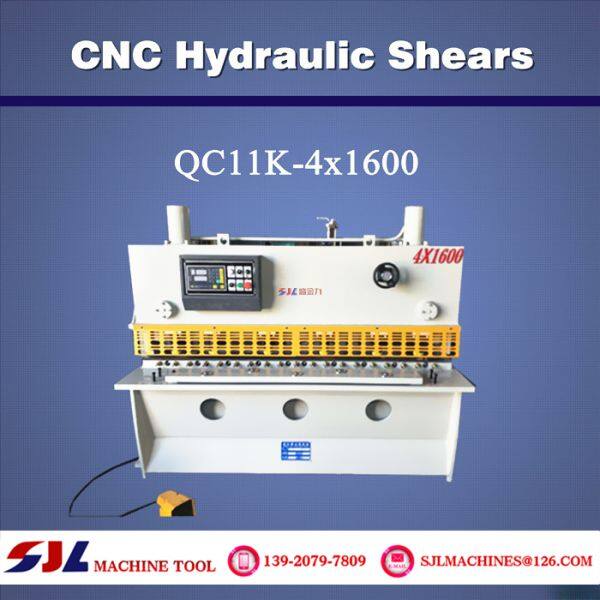

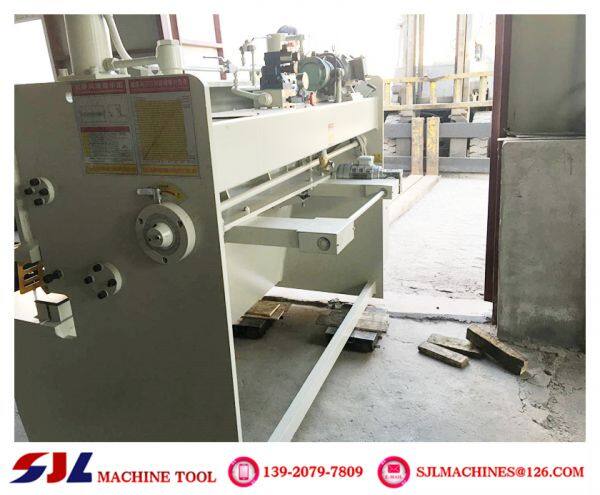

SJL Brand CNC Hydraulic Shears QC11K-4x1600 Shearing Machine
- Shanghai
- T/T Cash
- 7 days
Product Details
| Brand Name | SJL | Place of Origin | China | |
| Model Number | QC11K-4x1600 | Certification | CQC | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One year warranty | |
| Weight | 1900Kg | Dimension(L*W*H) | 2130×1400×1570mm | |
| Voltage | 220V | Rated Power | 3Kw | |
| Condition | New |
Product Description
Machine Tool Equipment Name: CNC Hydraulic Shearing Machine
Brand：SJL
Model：QC11K-4x1600
Product description:
1. Adopt three-point roller guide rail support to ensure shear quality.
2. The upper and lower blade blades can be cut at four edges, extending the blade use time.
3. The shear angle can be adjusted to reduce the deformation of the shearing plate.
4. The adjustment of blade clearance is accurate and rapid; The stroke of the upper frame can be adjusted stepless to increase the shear speed.
5. Configuration of MD11 CNC System
Technical parameters:
Shear plate thickness： 4mm
Shear board width： 1600mm
Shear plate strength： 450N / mm
Shear angle：1.5 °
Number of empty trips(times / minutes) ：20
Backward trip： 350 mm
Blade length：1600 mm
Main motor power：3KW
Back gauges motor power：0.55 KW
Weight： 1900 Kg
Shape size(length × width × height)：2130 × 1400 × 1570mm

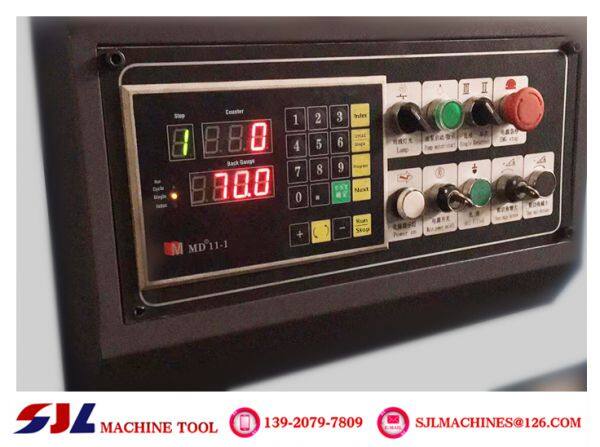

Introduction to CNC System：
Easy to operate
Count function
Automatic positioning of back gauges
Strong anti-interference ability
User Photographs
