ChinaHome > Products > Pneumatic Tamping Machine > D6 Pneumatic Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition

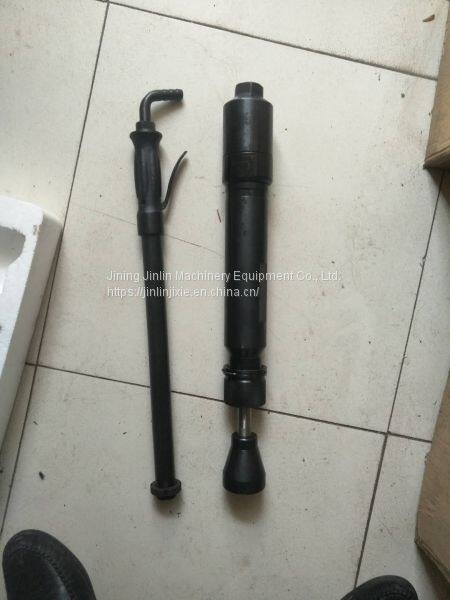

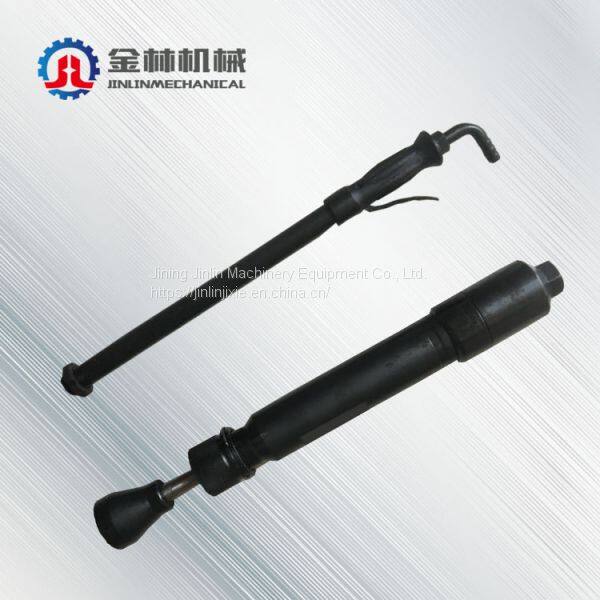

D6 Pneumatic Tamping Machine Widely Used In Concrete And Other Hard Objects Demolition
- Any Port of China
- T/T L/C PayPal
- 7 days
You May Like
-
D3/d9 Air Pneumatic Sand Rammer Tamping Machine Used For Operations Such As Concrete And Brick
-
Road Pneumatic Air Tamping Machine Used For Operations Such As Concrete And Brick D3/d9
-
Electric Type Demolition Of Concrete Components Hydraulic Rock Breaker Parts
-
Demolition Of Concrete Components Electric Type Portable Rock Breaker
-
Hydraulic Rock Breaker Parts Aluminum Alloy Splitting Gun The Second Disintegration Of Large Ore
-
The Second Disintegration Of Large Ore Low Cost Rock Drill Breaker
Product Details
| After-sales Service Provided | Engineers available to service machinery overseas | |||
| Brand Name | Jinlin | Place of Origin | China | |
| Condition | New |
Product Description
Pneumatic tamping machine is powered by compressed air. It is suitable for the tamping of sand moulds of medium-sized castings, concrete and brick billets.
Application Scope
Model D3 is very small and can be used in narrow working space.
Model D4 is light and suitable for tamping sand core or small sand mould.
Model D6 is suitable for modelling of medium-sized castings.
Model D9, with large working capacity, is suitable for tamping large sand castings.
Model D10, with super working ability, is suitable for tamping of sand mould of super large castings.
Pneumatic Tamping Machine Parameters Details:
Model | D3 | D4 | D6 | D9 |
Machine weight | 2.5kg | 3.6kg | 6kg | 9kg |
Use of air pressure | 0.63 mpa | 0.63mpa | 0.63mpa | 0.63mpa |
Gas consumption | 0.25 l/s | 0.35l/s | 0.45l/s | 0.65l/s |
Number of shocks | 900hz | 800hz | 700hz | 600hz |
Piston diameter | 17mm | 20mm | 25mm | 32mm |
Structural of travel | 92mm | 128mm | 155mm | 207mm |
Hammer head diameter | 32mm | 36mm | 42mm | 54mm |
Endotracheal diameter | 13mm | 13mm | 13mm | 13mm |
Overall Length | 410mm | 480mm | 975mm | 1180mm |
