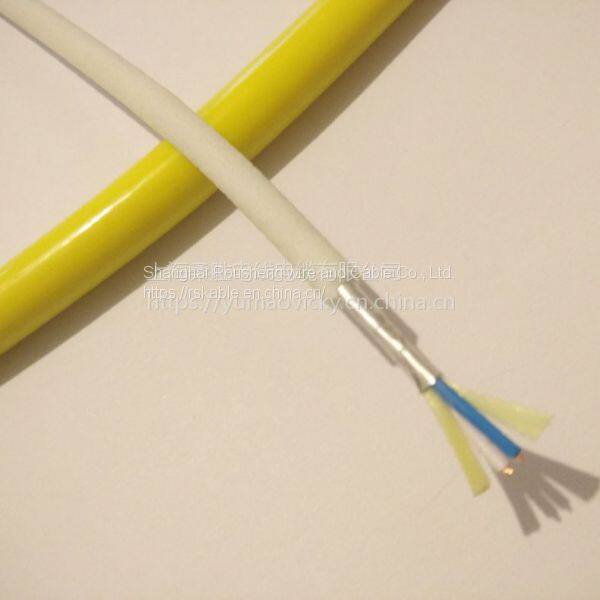

Yellow / Orange Sheath 1000v Rov Wire Cable Acid-base
- Any Port of China
- 15 days
You May Like
-
With Sheath Orange Rov Cable Umbilical Anti-microbial Erosion Cable
-
Acid-base / Oil-resistant Cable Sheath Orange / Blue 1000v Cable Rov
-
Yellow Sheath Color Cable Rov Cable Acid-base
-
Umbilical Cable Rov Yellow & Blue Sheath Cable Anti-dragging
-
With Sheath Color Blue Rov Umbilical Cable Anti-seawate / Acid-base
-
Cable Rov 1000v Sheath Orange / Blue Conductor Anodized Bare
Product Details
| Insulation Material | Other, Special Seawater-proof PE Material | Conductor Type | Other, Anodized Bare Copper Wire | |
| Conductor Material | Copper | Application | Underground | |
| Type | Insulated | |||
| Brand Name | RS | Place of Origin | China |
Product Description
Applications:
It is mainly used for ROV unmanned remotely operated vehicle and equipment control signal line, as well as a series of underwater work such as: monitoring，mapping, underwater observation video, inspection and construction. It is characterized by high flexibility, high toughness, bending resistance, distortion resistance, abrasion resistance, Nick resistance, high pressure resistance, electronic interference resistance and seawater resistance.
Insulation Material:
FPE, PE, or HT PVC 105 ℃
Type:Low Voltage, Low Voltage
Application: underwater Float water
Outer Jacket: FEP, Foam TPE Inner Jacket Press extruded TPE
Conductor: Pure Copper, Tinned Copper
Test Voltage: 1000V, 1 min
Sheath Color: Yellow, Blue, Orange
Packing: 100 meters/roll
Certificate: CE, CCC, RoHS
Feature:
ROV cable - underwater camera cable, underwater salvage equipment cable, underwater construction applications with underwater mechanical arm robot cable, submarine pipeline detection and maintenance robot cable, submarine desilting and dredging robot cable, with hydraulic cutter and other operating tools special cable ocean detection cable.
Specifiation:
Model Number
| RS
|
Specifications
| ROV Cable
|
Outer Diameter | 5±0.2MM |
Conductor
| Anodized Bare Copper Wire
|
Insulation
| Special Seawater-proof PE Material
|
Core color
| Color Separation
|
Tensile Structure | Imported Kevlar Bulletproof Wire |
Tensile Strength
| 80kg
|
Wrapping Material
| High Quality Lightweight Nonwoven
|
Cable Shield
| None
|
Inner Sheath | Foam-proof Seawater-specific Polyether PolyurethaneMaterial (Anti-seawater, oil-resistant, acid-base, corrosion-resistant, anti-dragging, anti-microbial erosion)
|
Outer Sheath | Polyurethane Glossy Anti-seawater Corrosion Special Material |
Temperature Range
| Fixed laying: -40°C~+90°C |
Mobile Installation
| -30°C~+80°C
|
Radiation Resistance
| 8x107cj/kg (water resistant cable 5x107 cj/kg)
|
Rated Voltage
| 300/300V
|
Test Voltage
| 1500V
|
