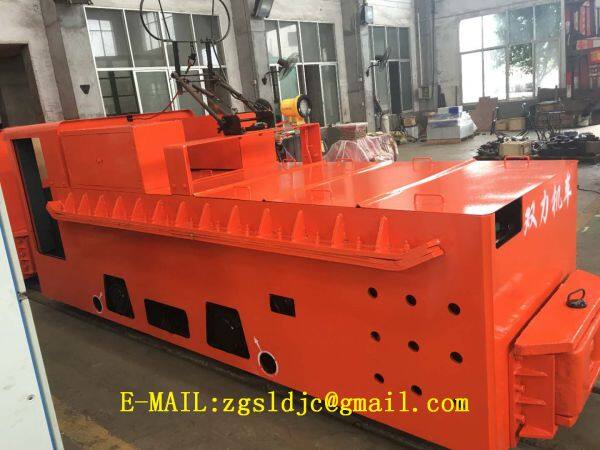

Overhead Line Mining Locomotive Cjy7/6gp 7t Explosion-proof Diesel Locomotive
- T/T D/P D/A Other
You May Like
-
Trolley Powered Cjy20/6gp 20 Ton For Underground Mining
-
For Mining Power Equipment Trolley Wire Locomotive Cjy7/6g(b/p)-250v
-
High Safety For Underground Mining Cjy7/6g(b/p)-250v
-
For Mining Power Equipment Coal Mine Locomotives Cjy14/6gp 14t
-
Cjy20/6gp 20 Ton Overhead Trolley Mining Railway Locomotive High Safety
-
High Reflective Electric Trolley Locomotive Railway Locomotive Cjy7/6gp 7t
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specifications:
1.Long service life of gear
