Cay55/9gp Subway Tunneling Mining Battery Locomotive Explosion-proof
- T/T D/P D/A Other
You May Like
-
Underground Mine Mini Electric Locomotive Battery Powered Cay55/9gp
-
Railway Vehicle Rail Equipment Mining Electric Locomotive Environmental
-
Environmental Underground Mine Mini Electric Locomotive For Coal Mine
-
Underground Mine Mini Electric Locomotive Cty8/7g-132 Battery Operated
-
Railway Underground Locomotive Explosion-proof Cay45/1435gp 45t Narrow Gauge
-
Battery Operated Underground Electric Locomotive 7t Well Equipped
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Description:
The 8 ton battery electric locomotive has a variety of models and voltage classes, and there are safety type and explosion-proof special type.It has the characteristics of large battery capacity and low locomotive center of gravity.
It has reasonable structure, high reliability and reliable operation.8T 140V electric locomotive is a new generation energy saving product.
It USES modern chopper technology and two-stage transmission and rubber shock absorber.
It has the characteristics of energy saving and reliable operation.
The above 8T locomotives can be derived from the user requirements of the dual-head driver room, using chopper speed control system, speed odometer installation.
Parameters:
locomotive Model No. specifications | CAY8/6GP | CAY8/7GP | CAY8/9GP |
Adhesive / total weight (t) | 8 | 8 | 8 |
Track gauge (mm) | 600 | 762 | 900 |
Wheelbase (mm) | 1100 | 1100 | 1100 |
Wheel diameter over tread | 680 | 680 | 680 |
Coupler height over Steel rail (mm) | 320/430 | 320/430 | 320/430 |
Min Curve radius (m) | 7 | 7 | 7 |
Battery volt rating (V) | 132(440Ah) | 140(440Ah) | 192(440Ah) |
Braking method | Mechanical and electrical | Mechanical and electrical | Mechanical and electrical |
Max tractive effort (KN) | 22 | 22 | 22 |
Max speed (km/h) | 20 | 20 | 20 |
Rated speed per hour (km/h) | 10 | 10 | 10 |
Power of traction Motor (KW) | 2*22 | 2*22 | 2*22 |
Transmission | Single level Spur gearing | Single level Spur gearing | Single level Spur gearing |
Controller | AC frequency conversion | AC frequency conversion | AC frequency conversion |
Over all dimensions (mm) | 4460*1060*1590 | 4400*1340*1590 | 4460*1340*1590 |
Service & Application | Mucking in mining & tunneling | Mucking in mining & tunneling | Mucking in mining & tunneling |
Advantages
1. Long life .

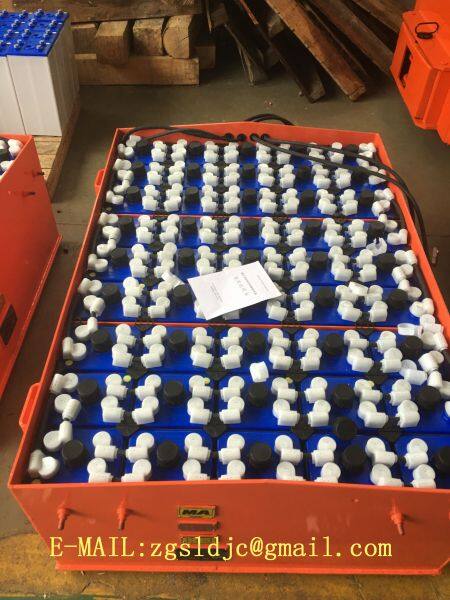

2. The battery life is greatly extended by adopting the tubular positive plate produced by the die casting machine with the world's advanced level.
3. The battery shell has high strength and is not easy to break.
4. Unique breathable cover design can effectively prevent the electrolyte from spilling out of the battery.
