Product Introduction

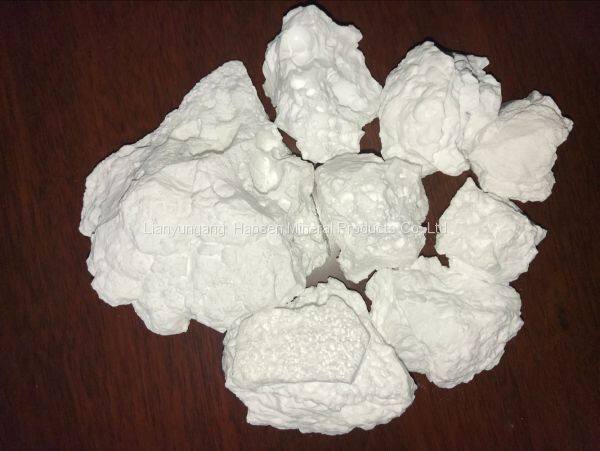

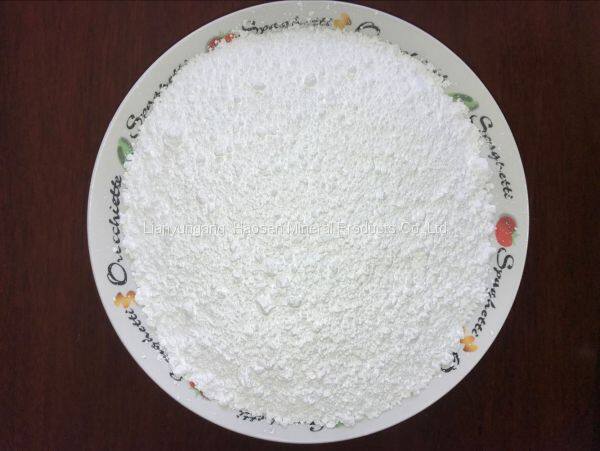

Cristobalite powder is made of selected vein quartz ore calcined at about 1500 ℃, processed by non-polluting grinding, magnetic separation and classification.
The properties are stable, the silicon content is over 99.8%, the crystalline phase is tetragonal, the hardness is about 6.5, the density is 2.45, large specific surface, high porosity, good weather resistance, good precipitation resistance, good thermal shock resistance .

Application:
It is used in jewelry casting, precision casting, dental materials, electronic chip polishing, polishing materials, building interior and exterior wall coatings, road reflective coatings, automotive primers, plastics, rubber, silicone rubber, adhesives, national defense and other fields.

Company Information

   Hao Sen uses high-quality quartz - water washing - drying - drying  - mixing - compound / melting - dry ball milling - classifier grading - impurity / complex mixing - packing, warehousing and other advanced production processes. At present, more than 30 kinds of silica micro-powder products, such as crystalline silica micro-powder, fused silica micro-powder, active (modified) silica micro-powder, high purity silica micro-powder, soft composite silica micro-powder, electronic silica micro-powder, electrical silica micro-powder, ultra-fine silica micro-powder, spherical silica micro-powder, glass powder, quartz powder, high purity quartz sand and fused silica sand, have been developed and manufactured, which are oriented to adhesives, electronic materials, fused silica micro-powder and so on. Electrical insulating materials, liquid crystal glass, medical materials, dental materials, precision casting, paint coating, functional rubber, plastics, chemical materials, nanometer materials, advanced building materials and other hundreds of different industries. Product Marketing covers more than 20 provinces and regions in the country, as well as exported to Asia, Europe, the United States, Africa and other countries.

   Lianyungang Hao Sen has strong technical strength, advanced testing instruments, and improve the pre-sale, sale, after-sales service system. Always adhere to the idea that "quality is the life of enterprises and innovation is the soul of enterprises". Relying on rich quartz mineral resources, we are committed to becoming the leading supplier of industrial powder materials application programs and strive to provide customers with the best quality products and services.

HS MINERAL Technical Data Sheet

Main Features:
1. Excellent optical properties. The refractive index of cristobalite decreases from 1.55 to 1.48, which is closer to that of PE, PP and some resins. The blended resin is transparent and does not cover the color of the pigment itself, while filling with other fillers will make the color of the pigment lighter and distorted.

2. High reflectivity. The concrete structure of cristobalite can help light reflection and replace glass beads as reflective paint. It can not only enhance the anti-skid property, but also improve the reflectivity of paint.

3. High whiteness, low density and bright color. The whiteness of cristobalite is over 95%. It can replace part of titanium dioxide and reduce the cost of formulation when used in coatings and paints.

4. Corrosion resistance, scratch resistance and scrubbing resistance.

5. It does not contain organic pollution and has very low metal content. It can enhance the UV resistance of the coating and has good insulation.

6. Excellent thermal shock resistance. When quartz is heated at 220 - 240 C, a certain degree of thermal expansion occurs, which compensates for the shrinkage of epoxy resin and gypsum during curing reaction at this temperature, so that the casting body does not deform.

7. Application of cristobalite in adhesives

It has low oil absorption value, basically no edges and corners, low viscosity relative to white carbon black, stronger weathering property than white carbon black (white carbon black is alkaline), good bonding effect ( rough surface), good peel strength, high pull-out strength and high surface resistance. After modification, it can be better combined with epoxy resin system to eliminate bubbles and settlement.

A suitable proportion of diatomite can be added to the formulation so as to better improve the adhesion. The silicon powder has many joint surfaces, obvious edges and corners, and difficult to bond. Kaolin is hexagonal flake, red after burning, and has many joints (not easy to bond).

8. Modified quartz powder is usually used as an anti-caking material for transparent PP and PE, LDPE, LLPDE. In film production, because quartz has the same refractive index, for most polyolefin films, this additive has little effect on the optical properties of films. Other special applications include ultrathin films and double extrusion films, which require ultrafine quartz powders. 600 mesh quartz powder is usually used as IR absorption material in greenhouse film.

9. Cristobalite powder has high surface energy, hydrophilic and oleophobic surface， easy agglomeration. It is difficult to disperse evenly in non-polar or weakly polar paints. Therefore, it is necessary to modify the surface of ultrafine powder so that the surface of quartz particles can be coated with a layer of organic substances (such as coupling agents, surfactants, etc.) to make it oleophobic and hydrophilic to oleophilic and hydrophobic. This not only enhances the compatibility and binding force between quartz powder and matrix/substrate, but also enhances the dispersion of quartz.
