Small Steam Electric Boiler Supplying Electric Heating Steam Generator Without Telegraph Inspection

Environmental protection advantages of electric steam boilers:

1. Electric energy as energy, no noise, no pollution, is a green environmental protection product.

2. The small-sized boiler (30-200 kg) is electrically controlled, which is easy to install and connect; the large-sized boiler (more than 500 kg) is separated from the electrically controlled one, so as to avoid the high temperature influence of the electric control part of the furnace body and ensure the stable operation of the electronic control devices. Electrically Heated Boiler

3. Adopt advanced technology and production technology, high thermal efficiency.

4. The advanced computer boiler controller has the advantages of reliable performance, high degree of automation and convenient use.

5. Use high-quality electrical components to ensure the service life of products.

Structural characteristics:

1. Full-automatic intelligent control technology, no need to be on duty. The working mode is flexible and can be set to manual or automatic mode.

2. The automatic running time of the boiler can be set according to the need. Many different working hours can be set in a day to make the boiler automatically time-sharing.

Start each heating group, and the heating group is switched on and off circularly, so that the use time and frequency of each contactor are the same, and the service life of the equipment is improved.

3. The controller can automatically control, calculate and direct the pressure. It can automatically start and stop the feedwater pump and electric heating pipe when the load changes. It can also be manually controlled.

4. It has a complete range of protection functions, such as leakage protection, water shortage protection, grounding protection, steam overpressure protection, over-current protection, power supply protection, and boiler automatic protection.

5. Boiler body adopts steel plate of boiler pressure vessel. Longitudinal and circumferential welds of furnace body are welded automatically and X-ray flaw detection is carried out. Small boiler body and Mechatronics are integrated, and installation is convenient.

Electrically Heated Steam Generator Application Industry

Please consult the price according to the required power. Thank you.

Products are widely used in textile and garment industry, food processing, electroplating processing, chemical processing, pharmaceutical industry, concrete maintenance, rubber industry, hospitals, brewing industry, medical industry, chemical industry, paper industry, feed industry, rubber, tobacco, heating, printing and dyeing, cables, non-ferrous, enterprises and institutions, with disinfection, drying, cooking, heating, heating, etc. Function.

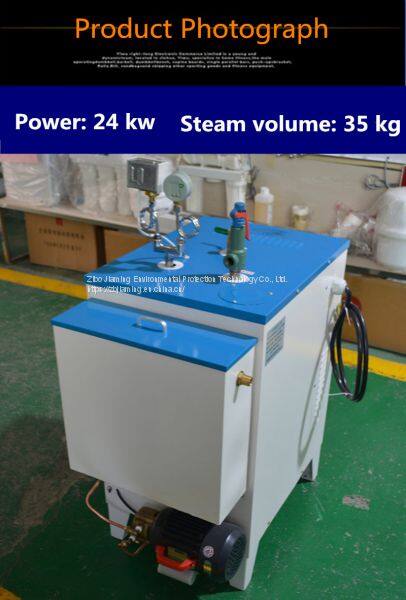

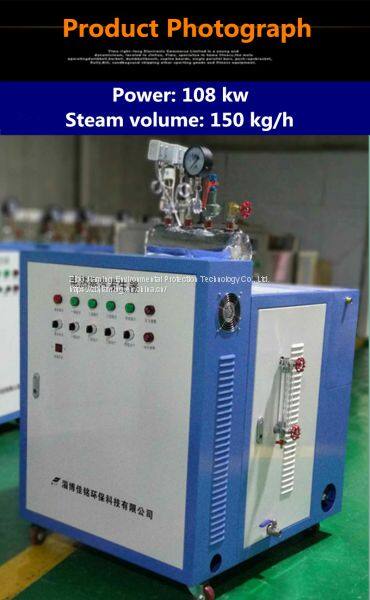

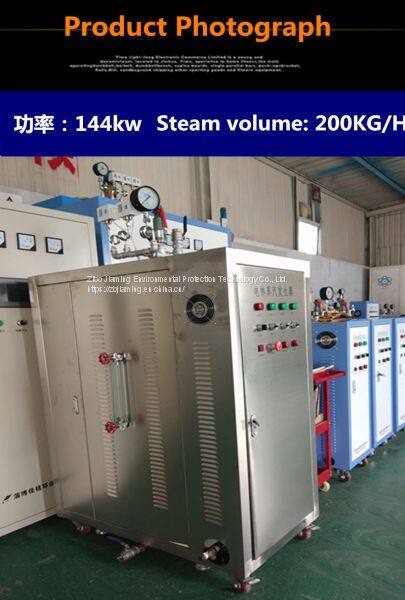

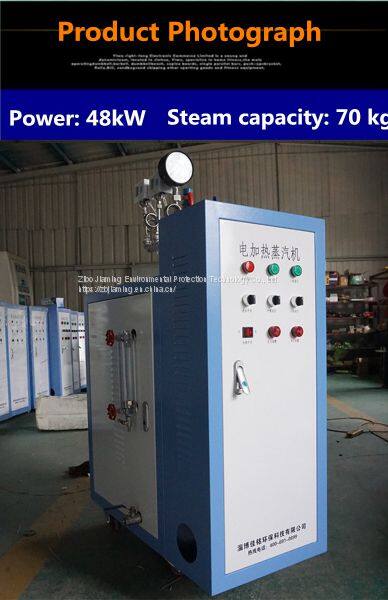

LDR steam generator has 18 KW, 24 KW, 36 KW, 48 KW, 60 KW, 72 KW, 90 KW, 108 KW and other inspection-free models, as well as 144 kw, 216kw, 360kw, 720 kW large-scale stainless steel electric steam boiler, other models can be customized according to customer needs.
