Home > Products > Mobile stage truck > 9.6 m LED Mobile Advertising Vehicleled Stage Truck for Sale

9.6 m LED Mobile Advertising Vehicleled Stage Truck for Sale

FOB Price

US$ 1 - 65000 / Set

1 Set(Min. Order)

Port QINGDAO/NINGBO/SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUAYUAN	Place of Origin	China
Model Number	ZHC5250XWT	Condition	New
Transmission Type	Manual	Gross Vehicle Weight	19500
Fuel Type	Diesel	Emission Standard	Euro 4
Dimensions (L x W x H) (mm)	1195025003950(mm)

Product Description

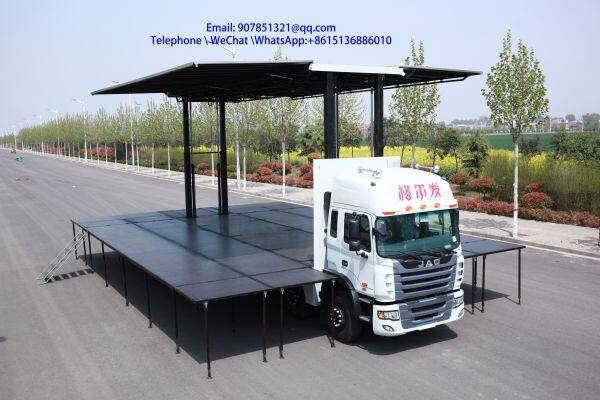

9.6 m road show LED mobile advertising vehicleled stage truck for sale

Our company produces Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.

Main details parameters

Outside body size (length × width × height mm)	9600×2500×--
Stage size (mm)	Deep: 4880-7230; opening width: 9000-14780; height from ground: 1400
Stage area (m2)	64 square meters - 84 square meters
Stage step ladder	Aluminum pattern pedal + armrest
Stage support	The stage legs are collected in the lower space of the stage frame, which can be directly screwed out and fixed.
Extended connection	The hinge is hinged to the main stage panel, manually flipped and becomes part of the stage, making operation quick and easy
Chassis leg	Hydraulic leg
Wing, main and sub stage, ceiling	Hydraulic expansion
Left background	Hydraulic expansion
Chassis model	HFC1251P2K3D54S1V
Emission Standards	Gb17691-2005 country v, gb3847-2005
Power (kw)	179(240PS)
Chassis configuration	Air conditioning, airbag seat, vehicle tools, fire extinguisher, warning triangle, semi-high ceiling cab
Displacement	6740mL
Tire	11.00R20,12R22.5
Overall dimensions (length × width × height mm)	11950×2500×3950(mm)
Total vehicle mass (kg)	19500
Loading mass (kg)	2000
Led screen (optional)	The size is 8640*2880, and the screen folding is hydraulically expanded or closed (according to customer's optional)

1. The whole body adopts aluminum alloy profile, section steel and stamping frame, and the outer skin is aluminum alloy plate;The stage floor is non-slip film covered stage board;The right wing of the box body and the roof are lifted through the hydraulic system to serve as the roof of the stage for shading and rain protection. The stage is expanded through the hydraulic device.

2. The interior of the box shall be equipped with distribution boards, lighting lamps, stage lighting lines and power sockets.

3. All the hanging light racks inside the stage ceiling are trusses, and pull-out guide rail racks are set on both sides of the wing plates as acoustic suspension support frames. Two support trusses are set at the outermost end of the wing plates towards the platform mouth;A background suspension bar is arranged at each end of the inner side of the wing plate

4. The power of the hydraulic system comes from the engine, which is an independent power unit, and the operation is remote control + electric control

1,Shipping term:whole vehicle or in parts,by container or by bulk,standard seaworthy wooden boxes are available.
2,Delivery time:10-15 days after deposit.
3,Delivery term:EXW,FOB,CFR,CIF etc.

Relative large space for operating.
Unique steel frame, rust and corrosion resistance, longer service life.
Strong and stable dynamic system.
Can be customized according to customer's requirement.

FAQ

Q1:What's the MOQ?
A:1 set for quality checking is workable.

Q2:What's the process of an order?
A:Firstly,buyer and seller confirm all the requirements and quotation.

Secondly,buyer pay 30% deposit by T/T,seller start production,

Thirdly,seller send photos of the finished vehicle to buyer,buyer pay the 70% balance.

Fourthly,seller arrange land transportation and shipment to buyer's destination port.

Q3:Is it ok to print buyer's logo on the vehicle?
A:Yes.

Our Services

1. Guarantee the whole car for one year.
2. The professional technical team will provide you and your end users with the services of various product problems.
3. Strong r&d team to meet customer needs.: style, color, steering wheel position, etc.
4. Show your order flow from time to time via photos, video, what-app, or email.
5. Tailor solutions and marketing plans to your local market to expand it.
