IH01 Dosyu Home Security CCTV Camera

System

Processor : Hisilicon processor HI3518E V200, built-in ARM926 at Max.540MHz and a high-speed video co-processor.

DRAM: DDR2 512Mb

Flash: 16MB

OS: Embedded Linux OS

System security: Registed user authority management

Online users: 3

DDNS: NO

Control protocol: P2P protocol

UPNP: NO

Image Sensor

Sensor chip: OV2710

Type: 1/2.7" CMOS Sensor

Display Resolution: 2.0MP, 1920 x1080(1080P)

Lens and IR-LED

Lens: FNO: 2.5; FL:3.6mm;

Interface Type: M12

Focus: Fixed

View Angle: 55°

Min. Illumination: Low illumination, 1.0Lux in day; Min to 0.2Lux with IR-LED On

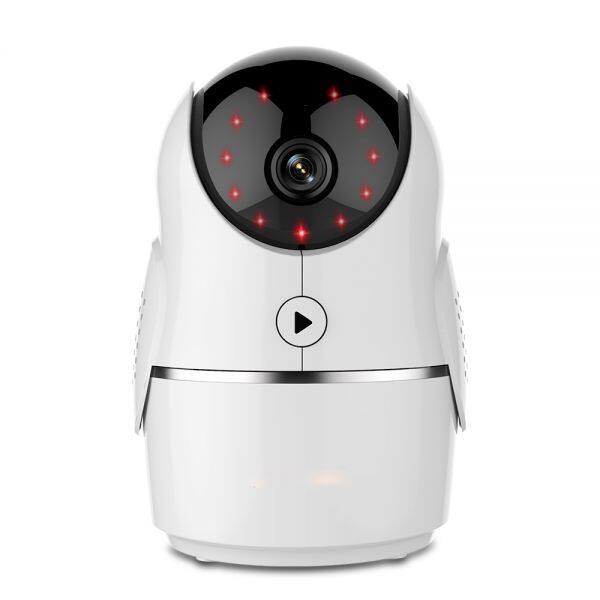

IR-LED: 10 IR-LED for Night Vision use

Night Vision: IR-CUT double filter with day&night auto switch

Audio

Input/Output: Built in Microphone and 8Ω/1W speaker;

Audio Compression: G.711, ADPCM/32kbps

Digital noise reduction: 3D digital noise

Video

Image Compression : H.264

Light Frequency: 50Hz, 60Hz

Image Resolution: 2.0MP, 1920 x 1080(1080P)

Image frame rate: 1~25fps

View : H.264 single streaming

Image adjust: NO

White balance: Automatic

Effective Night Vision: Supported, IR-Cut, Night visibility up to 8 meters

Infrared radiation distance: 6 meters

Infrared mode: Automatic

Network

Ethernet Interface: Built-in 10/100Mbps, Auto MDI/MDIX, RJ-45

Supported Protocol: HTTP/DHCP/IP/TCP/UDP

Wireless Standard: WIFI(IEEE802.11b/g/n)

WIFI Data Rate: 802.11b: 11Mbps(Max.)  802.11g: 54Mbps(Max.)  802.11n: 150Mbps(Max.)

WIFI Frequency channel : 2.4G (NOT support 5G)

WIFI Channel bandwidth: Support 20/40MHz

General functions: Reverse, capture, mobile alarm,password protection,video playback,

remote control, two-way intercom

Support IP address: Dynamic IP address

Wireless Security: WPA2 Encryption

Intelligent alarm: NO

Mobile view

mobile phone type: iPhone,Android phone

Video playback: Four level Clarity for various network speed: MAX,High,Normal,Low

Mobile alarm: YES(message and picture)

Piture capture: YES

Reverse: YES(Horizontal & Vertical )

Two-way intercom: YES

video record in mobile: YES

recorded video playback: mobile and IPC TF card recorded video playback

PTZ control: Horizontal:355° & Vertical: 55°

Full screen view: YES

multi-view: NO

TF CARD video Record

Record setting: ON/OFF

Record level select: FHD、HD、SD、Smooth

Record days/hours:

Depend on Clarity select and real scene.

Example of Hours for 32GB CARD:

FHD(1280x720) = 2 Days

HD = 4 Days

SD = 6 Days

Smooth = 8 Days"

Record file format: AVI

Record video playback: By mobile APP，PC video tool or normal video device

Intelligent alarm

Motion Detection: YES

Video is lost, the network is disconnected, and the power is disconnected: NO

Alarm inform: Alarm message with picture

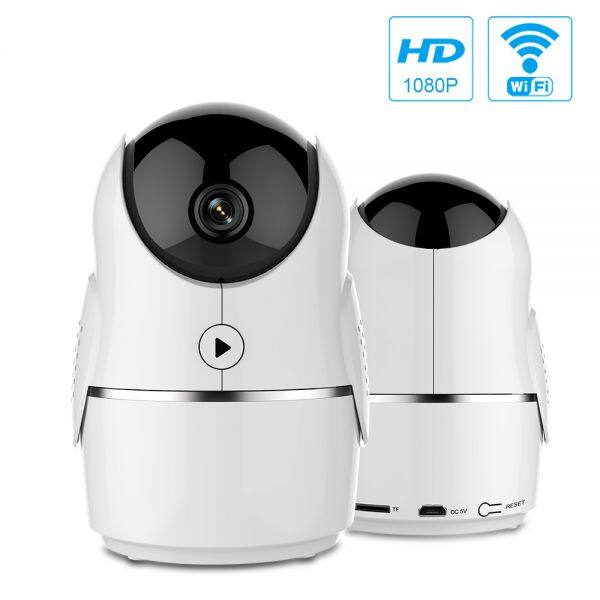

Hardware Interface

Memory: TF Card(Micro SD CARD),8GB/16GB/32GB/64GB

Power Interface:

DC 5V/2.0A (EU,US,UK adapter or other types optional)

Power consumption:

normal 3.2W;

IR-LED on 3.5W

PTZ working MAX 7W"

Audio Input/Output : Built in Microphone and Speaker

Reset key Press: 5 Seconds, then reset to factory setting.

Wireless Interface: WIFI antenna

WLAN: RJ-45

Software Upgrade

IPC device software: YES(by mobiel APP upgrade)

Mobile APP: Auto upgrade by user

PTZ

Pan/Tilt Angle: Horizontal:355°& Vertical: 55°

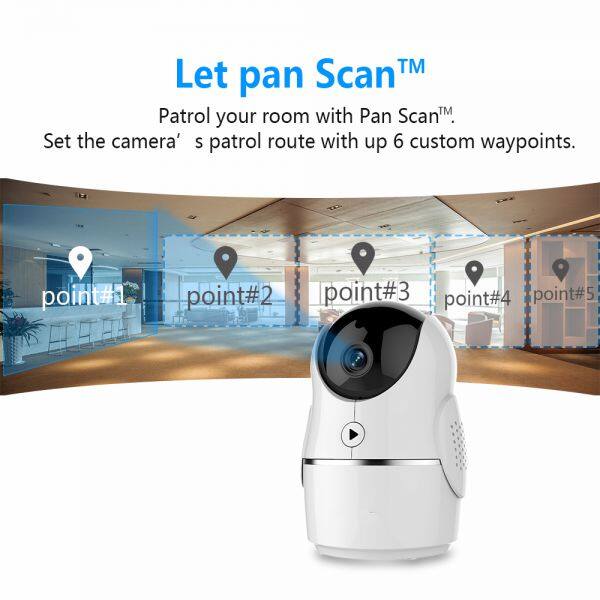

Pan/Tilt Cruise: Horizantal & Vertical

Pan/Tilt Position Store: Store 6 positions, support goto the position
