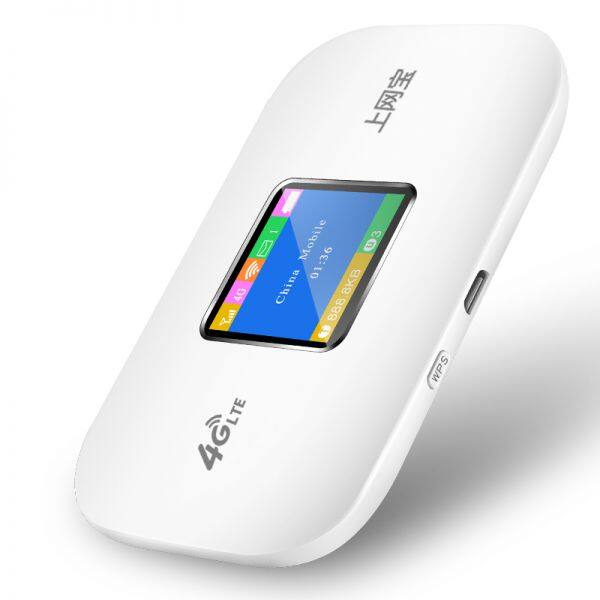

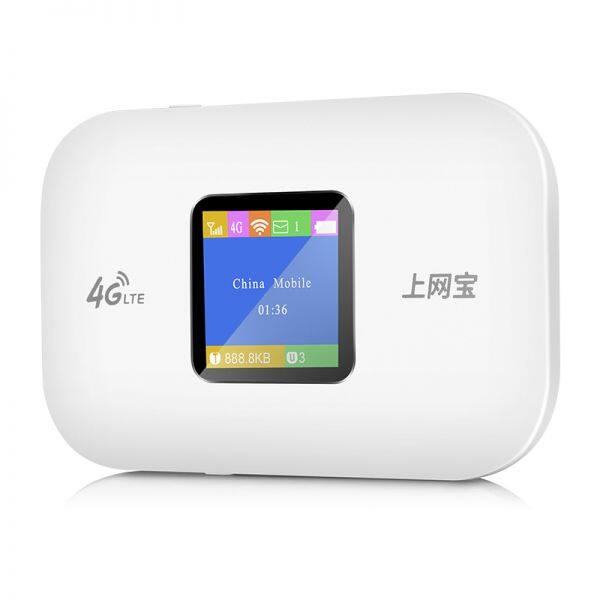

BM01 Dosyu OEM Portable 4G LTE MIFI Portable Pocket Outdoor Wifi Hotspot Router

Specifications

PCBA Name L02HA1

TDD-LTE: /

FDD-LTE: 1,3,8,18,19

TD-SCDMA: /

UMTS: 1,8

EDGE/GPRS: /

WAN

RF Capability

LTE Chipset  Marvell 1802 cat4

LTE Channel Bandwidth  1.4/3/5/10/15/20 MHz

Modulation

Downlink QPSK/16-QAM/64-QAM

Uplink QPSK/16-QAM

LTE Authentication  EPS-AKA

Adaptive Modulation and Coding  Supported

MIMO support  MIMO 2x2

Idle Mode  Supported

Sleep Mode  Supported

Idle Mode Signaling Reduction (ISR)  Supported

Power Level

TDD-LTE  Power Class 3（23 +/-3dBm）

FDD LTE  Power Class 3（23 +/-3dBm）

TD-SCDMA  Power Class 2（24 +1/-5dBm）

UMTS  Power Class 3（23 +/-2dBm）

EDGE  Power Class E2（GSM850/900:33dBm;DCS/PCS:30dBm）

GPRS  Power Class E2（GSM850/900:27dBm;DCS/PCS:26dBm）

Sensitivity

TDD LTE  -94 dBm(20MHZ)

FDD LTE  -93 dBm(20MHZ)

TD-SCDMA  -108 dBm

UMTS  -106 dBm

EDGE  GSM850/900:-98dBm;DCS/PCS:-98dBm

GPRS  GSM850/900:-101dBm;DCS/PCS:-99dBm

Data Rate

TDD-LTE  3GPP R9 ,Category 4, DL 150Mbps  UL  50Mbps

FDD-LTE  3GPP R9 ,Category 4, DL 150Mbps  UL  50Mbps

TD-SCDMA  3GPP R7  DL 2.8Mbps  UL 2.2Mbps

UMTS  3GPP R7  DL 21.6Mbps  UL 5.76Mbps

EDGE/GPRS

EGPRS Class12 DL 237kbps  UL 118Kbps

GPRS Class12  DL 85.6kbps UL 42.8kbps

LAN

WIFI info

WLAN Mode: 802.11b/g/n

Frequency Band: 2.4GHz

WLAN Channel supported:1-13

Antenna Type: Internal

Supported Security: WEP64 WEP128 WPA-PSK WPA2-PSK

WIFI MIMO: 1x1

Power Level

WIFI IEEE 802.11b >13dBm

WIFI IEEE 802.11g >11dBm

WIFI IEEE 802.11n >10dBm

Sensitivity

WIFI IEEE 802.11b(11M) -76dBm@ 8%BER

WIFI IEEE 802.11g(54M) -65dBm@ 10%BER

WIFI IEEE 802.11n(72.2M) -64dBm@ 10%BER

Data Rate

WIFI IEEE 802.11b 11/5.5 Mbps

WIFI IEEE 802.11g 54/48/36/24/18/12/9/6 Mbps

WIFI IEEE 802.11n 72.2/65/58.5/52/39/26/19.5/13/6.5 Mbps；

System

2G/3G/4G setup

Network Selection:

Manual, Auto

Setup by user

Interoperability: TDD-LTE & TD-SCDMA，TD-SCDMA & GSM, TDD-LTE & UMTS, FDD-LTE & TD-SCDMA, FDD-LTE $ UMTS, UMTS & GSM

SMS:

SMS over SGs Func at LTE

SMS's receiving and reading

APN setup: APN setup and revise

PIN Func: PIN:Save, revise, lock,unlock

DM: DM(Now support CMCC DM)

Modem Func: Connect to PC by USB

Automatically connect reconstructed: Can automatically reconnect to network after off-network in data using

WIFI setup

Protocol:

Max users 10

DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address;

Support client list: Displays all the DHCP server to obtain IP address of the host, including MAC address, IP address obtained

Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting

Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WIFI function on/off, and the SSID broadcast on/off

Provides WEP, WPA-PSK, WPA2-PSK, WAPI encryption methods, etc.

Support MAC and IP filtering

Other setup

Driver setup: With the PC operating system automatically recognizes, supports drivers installed automatically

Web Server: WEB UI

Administrator password configuration: Terminal preset default administrator password, supports password changes

SW update: Support local upgrade the firmware of the terminal

Time setup: Set user location's time

Recovery: Support the terminal restore all settings to the factory default state

Reboot: Reboot by SW

Operator lock: Software locking(can customization hardware locking)

Online help: This menu item provides the user with the help of the course, descriptive information

HTTP upgrade: Local HTTP server prefered

OTA (HTTP/TR069): Without

System Log: Display system during operation log information generated. Easy for users to understand the equipment through query log system events that have occurred on. Allows the user to clear the log operation

Connection-based: Hostless

Plug & Play: Supported

Power features

Working Voltage: Battery voltage：3.5-4.2V

Voltage fluctuations: 3.5-4.2V DC

Working Current: TBD

Environmental Characteristics

Operating Temperature: 0℃～+45℃

Extreme working temperature: -20℃～+60℃

Storage Temperature: -20℃～+25℃

Relative humidity: 45%～85%

Structure

I/O: Micro USB;

LTE SIM: Single

T-Flash Card: supported,max 32GB

Port

LTE SIM: 3GPP 31.101 and 31.102 standard

Key: Power、WPS Key、Reset key

Reception range: indoor：15 m; outdoor：30m

PC OS

Win7/WinXP: Supported

MAC OS: Supported

Windows8: Supported

Android: Supported

LINUX: Supported
